4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
The installation of this device shall be carried out only by instructed or skilled persons.
Before installing the device, make sure that the electrical enclosure, where the device will be mounted, is
disconnected from power supply.
Installation Site Requirements
The device must be installed only indoors.
The device can be mounted on a 35-mm DIN rail.
The maximum ambient temperature t
a
= 40 °C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 50 °C.
DIN Rail Mounting
The device can be mounted on a 35-mm DIN rail.
Make sure that the DIN rail is sufficiently secured to prevent it from becoming unstable or falling off.
To mount the device on a 35-mm DIN rail, follow the steps below:
Position the device on the DIN rail.

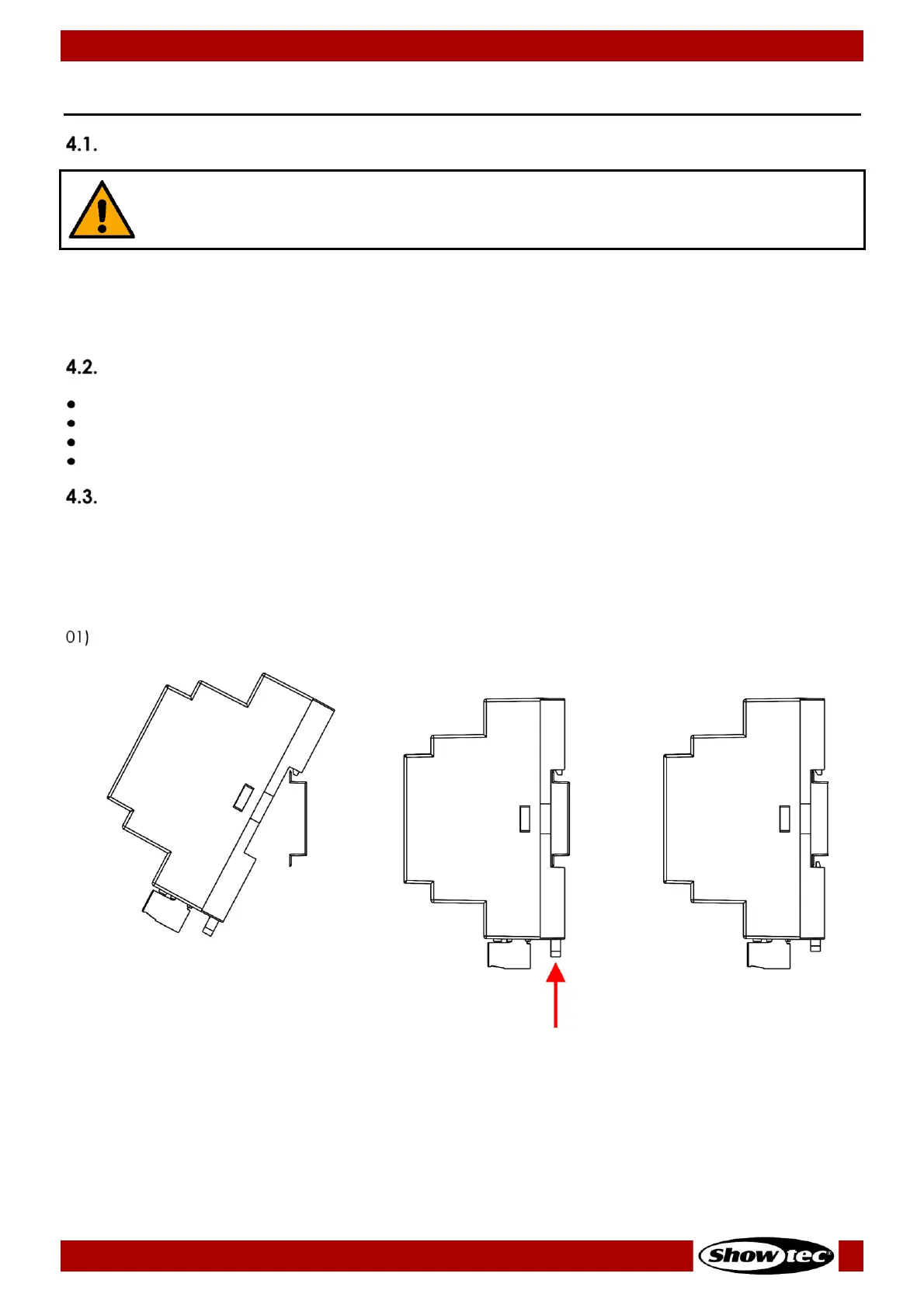

01) Push the DIN rail locks (08) to mount the device firmly on the DIN rail (see Fig. 04).
Fig. 04
