3. Description of the Device
The TR-512 Install is a compact but very powerful tool which can be used for triggering any light show or
scene in a simple way. It can record and play several DMX programs at the same time. Those programs
can be stored on a microSD card. Programs can be played by 6 external triggers or by the internal auto
trigger. Each trigger can start either a program or a scene. Each program can be played in a loop mode
or single play mode. It is also possible to set a delay, which enhances your control of the programs.
The TR-512 Install is suitable for a large range of venues, such as: theme parks, museums, shops and many
others.

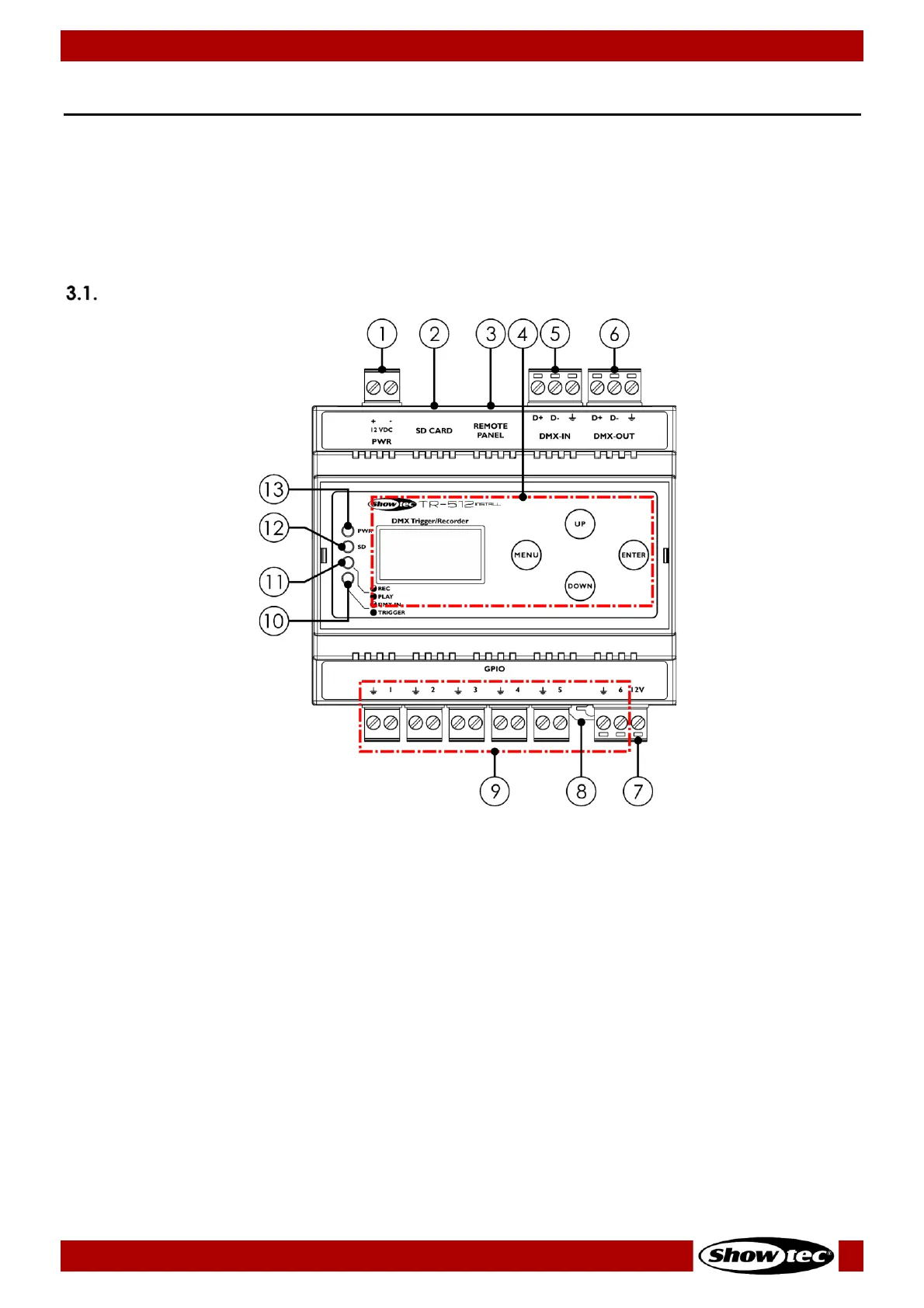

Front View
01) 12 V DC 2-pin Phoenix terminal power connector IN
02) MicroSD card slot
03) RJ45 wall panel connector IN
04) OLED display + control buttons
05) 3-pin Phoenix terminal connector DMX IN
06) 3-pin Phoenix terminal connector DMX OUT
07) Optional 12 V output connector for external LED indicators
08) DIN rail lock
09) Triggers 1–5 (GPIO), 2-pin Phoenix terminal connector IN; Trigger 6 (GPIO), 3-pin Phoenix terminal
connector IN
10) DMX IN/Trigger LED indicator
11) Play/Record LED indicator
12) MicroSD LED indicator
13) Power LED indicator
