Connecting External Trigger Devices
01) Remove the 2-pin 1–6 GPIO Phoenix terminal connectors IN (09).

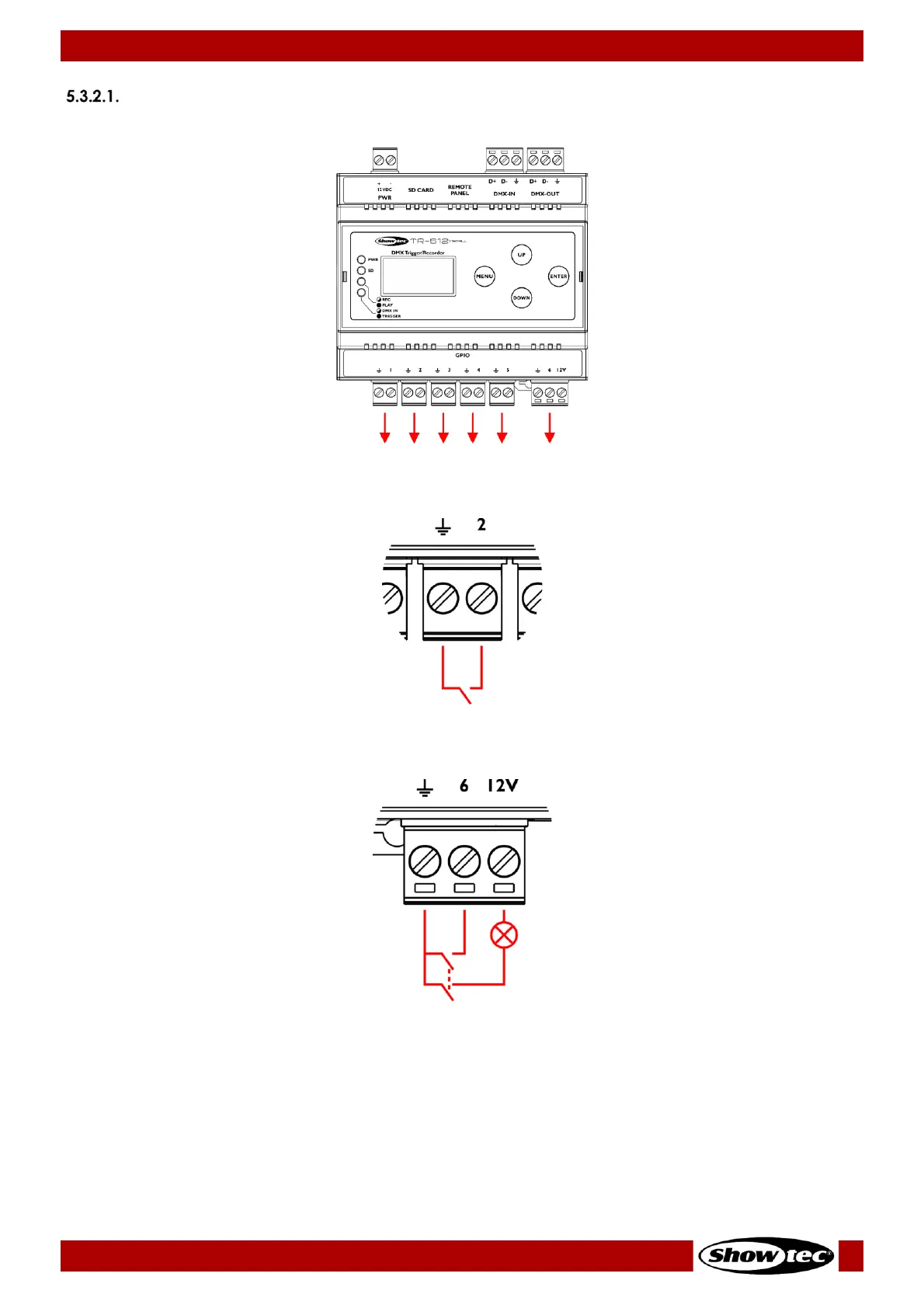

Fig. 12
02) Connect the desired external trigger devices (movement sensors, temperature sensors, light sensors,
etc.) to the device’s 2-pin 1–6 GPIO Phoenix terminal connectors IN (09).
Fig. 13
03) Optionally, you can connect a 12 V device (e.g. a LED indicator) to the 6
th
GPIO Phoenix connector.
For example, in Fig. 14, activating trigger 6 will also activate the connected 12 V device.
Fig. 14
04) Put the Phoenix connectors back in the device.
