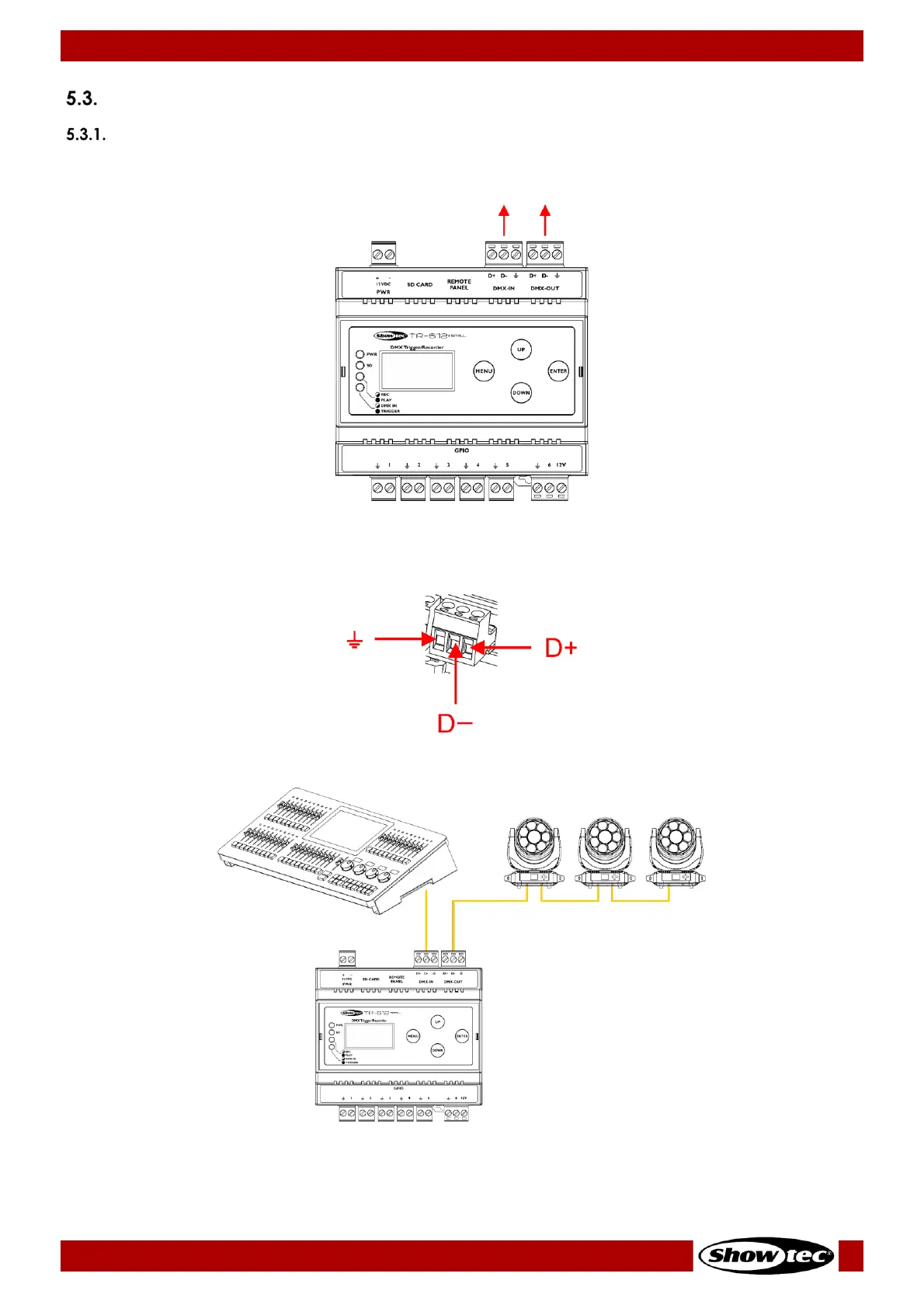

Setup Examples
Program Recording Setup
01) Remove the 3-pin Phoenix terminal DMX connector IN (05) and the 3-pin Phoenix terminal DMX
connector OUT (06).
Fig. 08
02) Connect a DMX-512 light controller to the device’s 3-pin Phoenix terminal DMX connector IN (05)
and connect light fixtures to the device’s 3-pin Phoenix terminal DMX connector OUT (06).
03) Insert the cables correctly.
Fig. 09
04) Put the Phoenix connectors back in the device.
Fig. 10
05) Follow the instructions from 6.4. Recording a Program on page 20.
