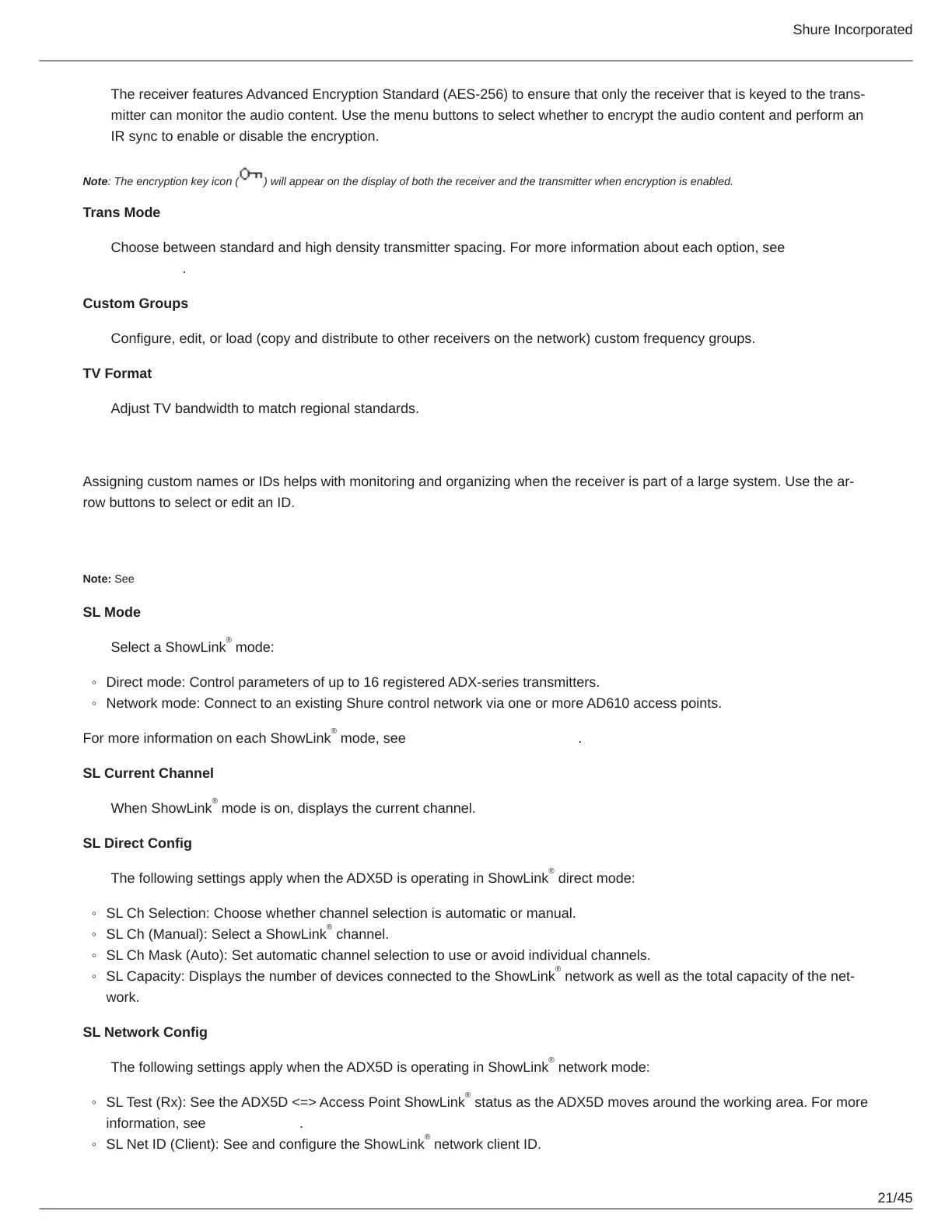

ThereceiverfeaturesAdvancedEncryptionStandard(AES256)toensurethatonlythereceiverthatiskeyedtothetrans
mitter can monitor the audio content. Use the menu buttons to select whether to encrypt the audio content and perform an
IR sync to enable or disable the encryption.
Note: The encryption key icon ( ) will appear on the display of both the receiver and the transmitter when encryption is enabled.
Trans Mode
Choose between standard and high density transmitter spacing. For more information about each option, see Transmis
sion Modes.
Custom Groups
Configure, edit, or load (copy and distribute to other receivers on the network) custom frequency groups.
TV Format
Adjust TV bandwidth to match regional standards.
Device ID
AssigningcustomnamesorIDshelpswithmonitoringandorganizingwhenthereceiverispartofalargesystem.Usethear
row buttons to select or edit an ID.
ShowLink
Note: See Country-Specific Functionality Restrictions.
SL Mode
Select a ShowLink mode:
Direct mode: Control parameters of up to 16 registered ADX-series transmitters.
Network mode: Connect to an existing Shure control network via one or more AD610 access points.
For more information on each ShowLink mode, see ShowLink Remote Control
®
.
SL Current Channel
When ShowLink mode is on, displays the current channel.
SL Direct Config
The following settings apply when the ADX5D is operating in ShowLink direct mode:
SL Ch Selection: Choose whether channel selection is automatic or manual.
SL Ch (Manual): Select a ShowLink channel.
SL Ch Mask (Auto): Set automatic channel selection to use or avoid individual channels.
SL Capacity: Displays the number of devices connected to the ShowLink networkaswellasthetotalcapacityofthenet
work.
SL Network Config
The following settings apply when the ADX5D is operating in ShowLink network mode:
SL Test (Rx): See the ADX5D <=> Access Point ShowLink status as the ADX5D moves around the working area. For more
information, see ShowLink Test.
SL Net ID (Client): See and configure the ShowLink network client ID.
®
®
®
®
®
®
®
®
®
®
