- 25 -
Jumpers & Connectors Guide

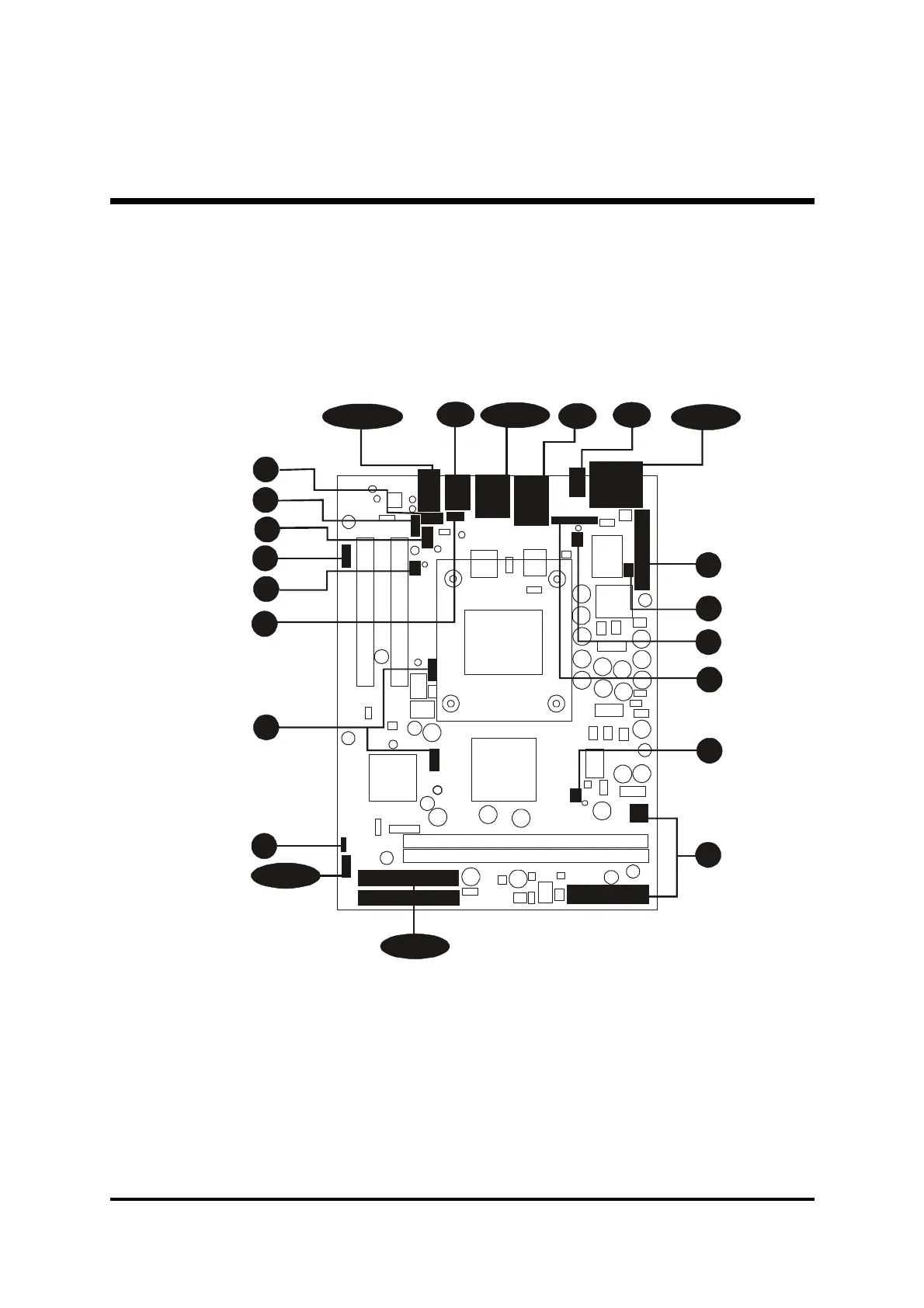

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal-
lation. The following list will help you to identify jumpers, slots, and connec-
tors along with their assigned functions:
CPU/Memory/Expansion Slots
Socket478 : CPU Socket for Pentium 4/Celeron processors
DIMM1/2 : Two184-pin DIMM Slots for 64, 128, 256, 512 MB,
and 1GB of 2.5V DDR SDRAM
(The total installed memory does not exceed 2GB)
PCI : Two 32-bit PCI Expansion Slots
B3
B7
B4
B5~B6
D2~D3
C1~C4
A1
C5
C6
E2
E8
E3
E4
E7
