Clear CMOS Setting (JP2)
JP2 is used to clear CMOS data. Clearing CMOS will result in the perma-
nently erasing previous system configuration settings and the restoring origi-
nal (factory-set) system settings.

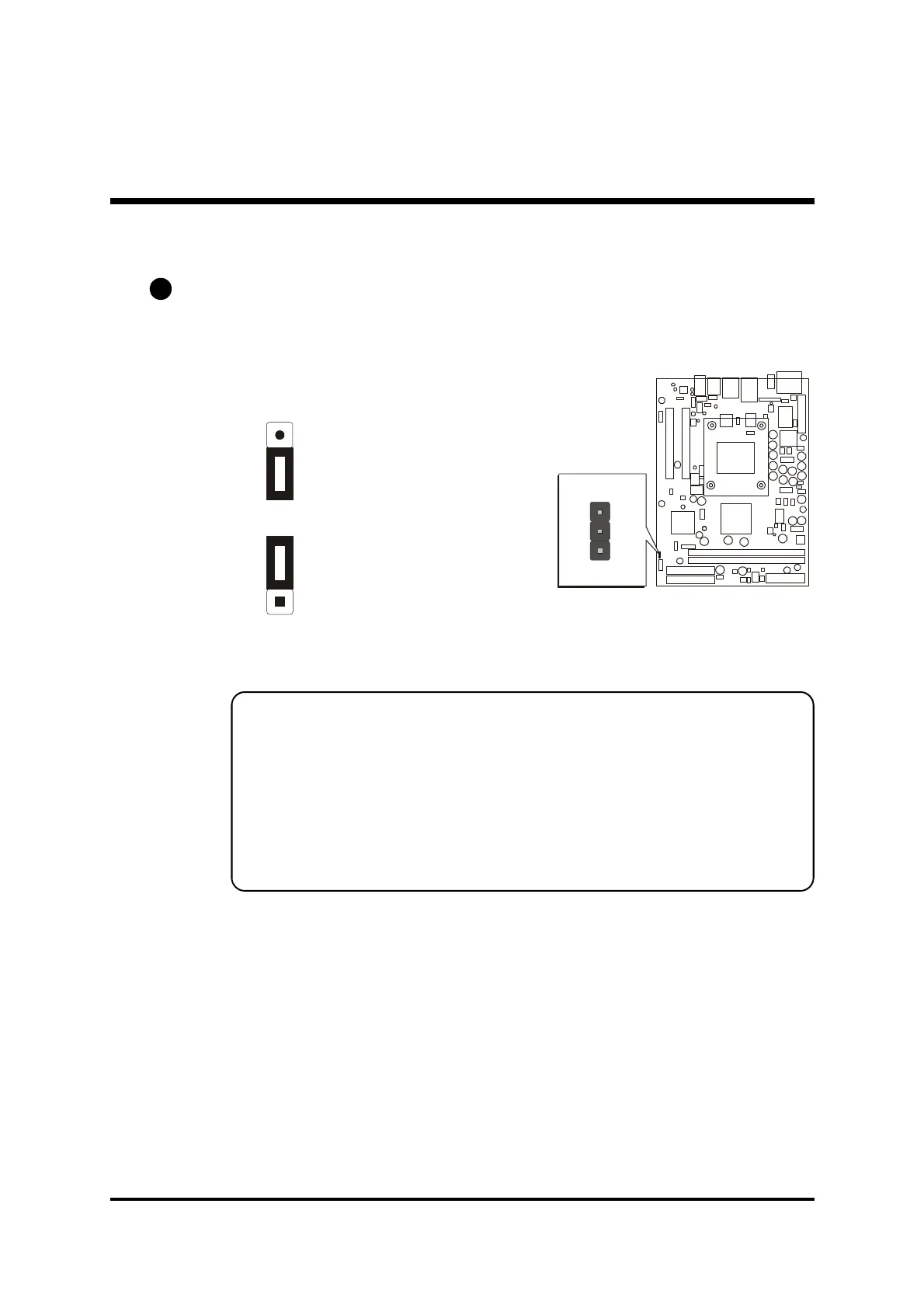

Pin 1-2 (Default)
Pin 2-3 (Clear CMOS)
Step 1. Turn off the system power (PC-> Off).
Step 2. Remove ATX Power cable from ATX Power connector.
Step 3. Remove jumper cap from JP2 pins 1-2.
Step 4. Place the jumper cap on JP2 pin 2-3 for a few seconds.
Step 5. Return the jumper cap to pin 1-2.
Step 6. Plug ATX Power cable into ATX Power connector.
Step 7. Turn on the system power (PC-> On).
