Shuttle FB52 - Audio Aux_In Connector(CN11)(White); SPDIF-IN Headers (JP10)

- 38 -
E7

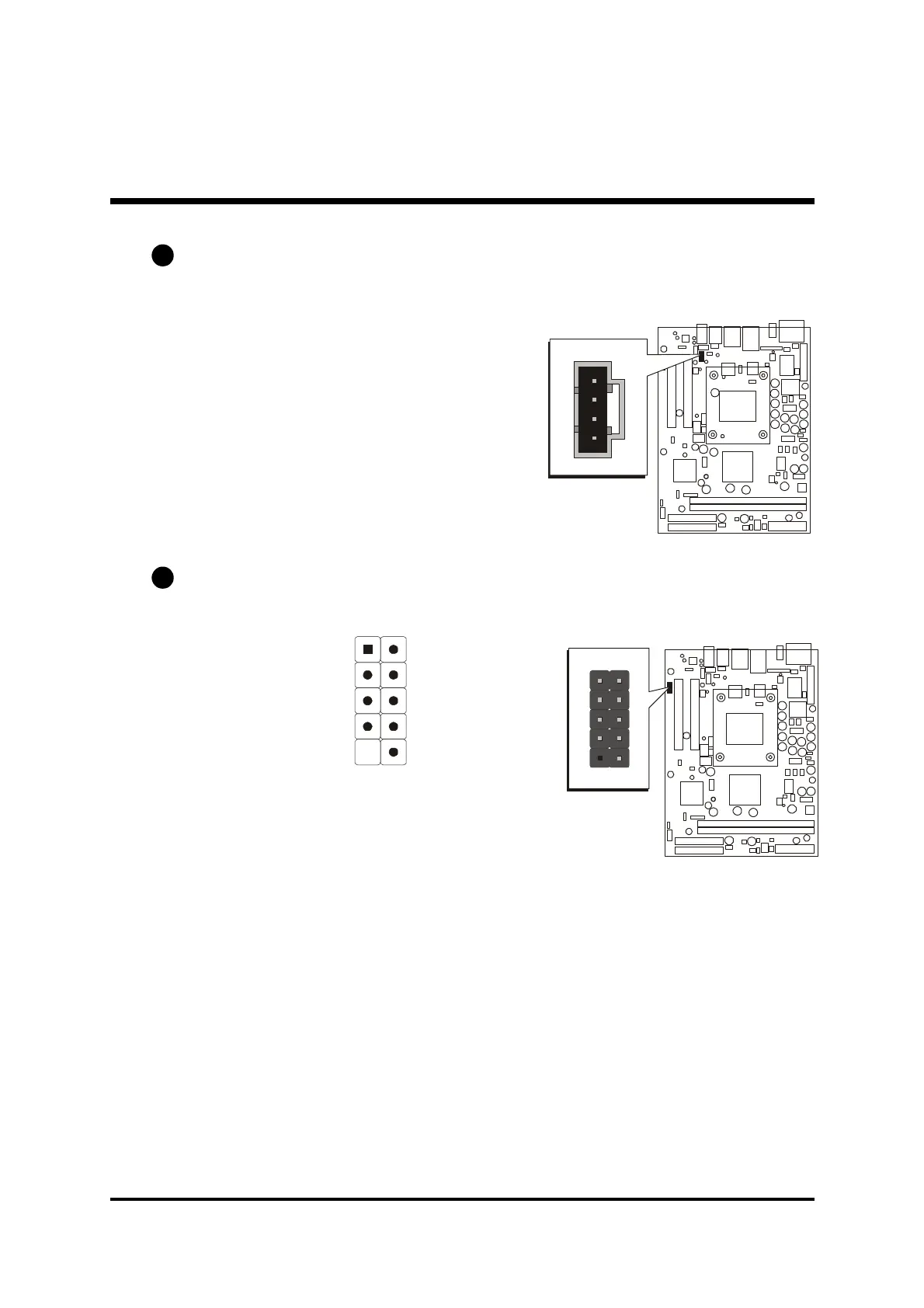

Audio AUX_IN Connector (CN11)
Port CN11 can be used to connect a stereo audio input from CD-ROM, TV-
tuner or MPEG card.
CN11
AUX-IN
1
Pin Assignments:
1=+12V 2=VCC
3=N/A 4=N/A
5=SPDIF_IN 6=GND
7=N/A 8=N/A
9=KEY 10=GND
2
4
6
8
10
1
3
5
7
9
JP10
SPDIF_In
1
SPDIF_In Headers (JP10)
Port JP10 can be used to connect special device.
E8
