Shuttle FB52 - Frequency;Ratio Control

- 73 -

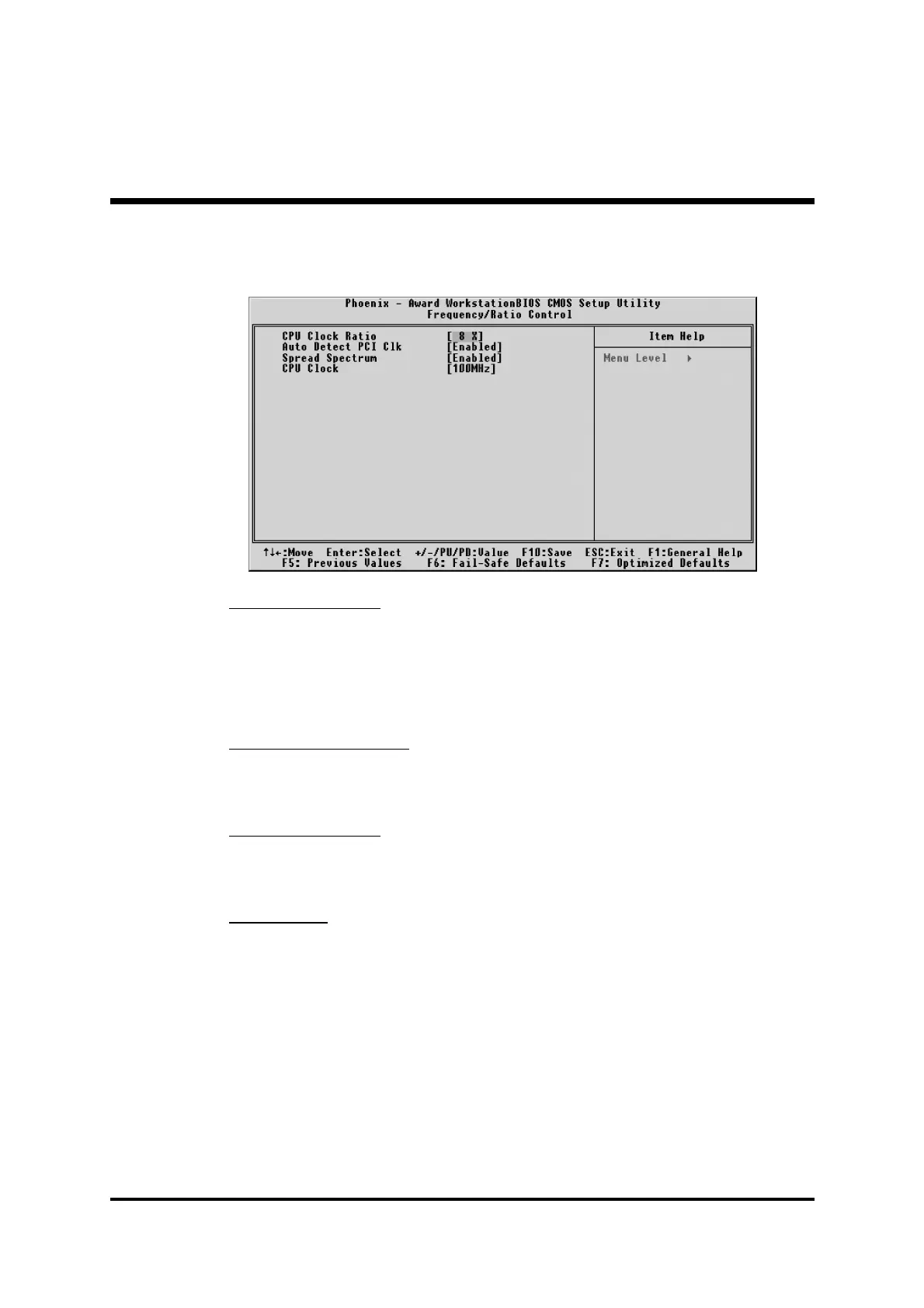

@ Frequency/Ratio Control
CPU Clock Ratio
This item allows you to adjust CPU Ratio.
Min: 8
Max: 50
Ø Key in a DEC number: (Between Min and Max.)
Auto Detect PCI Clk
This item allows you to enable/disable auto detection DIMM/PCI Clock.
Ø The choice: Enabled, or Disabled.
Spread Spectrum
This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Enabled, or Disabled.
CPU Clock
This item allows the user to adjust CPU Host Clock.
CPU FSB400 select range 100~132.
CPU FSB533 select range 133~165.
Ø Key in a DEC number: (Between Min and Max.)
