F Other Connectors

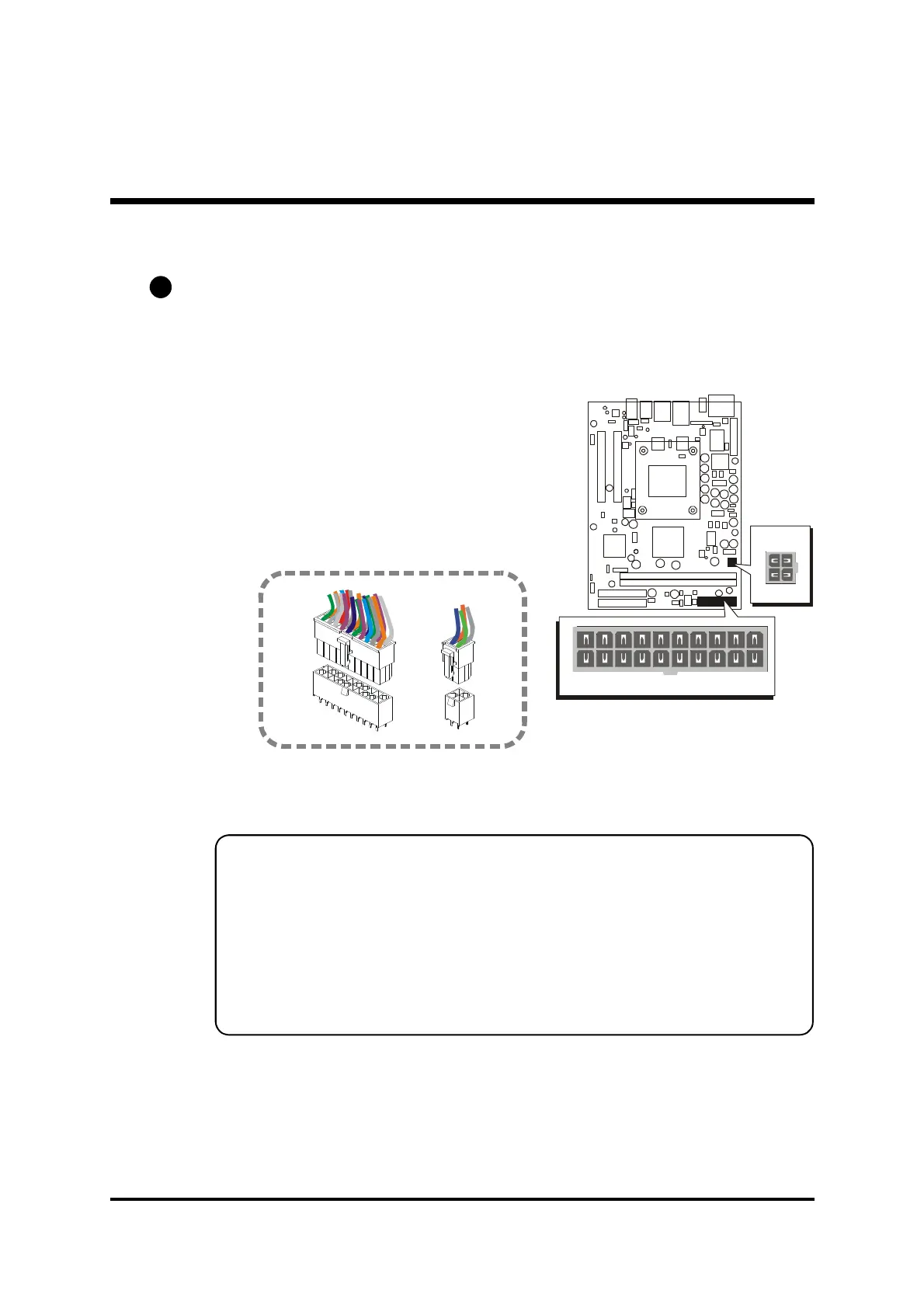

ATX Power Supply Connectors (CN6 and CN7)
This motherboard uses 20-pin (CN7) Pentium 4 standard ATX power header,
and CN6 with 2X2-pin +12V PC ATX power supply headers.
Please make sure you plug in the right direction.
Note 1: The ATX power connector is directional and will not go in unless the
guides match perfectly making sure that pin#1 is properly positioned.
Note 2: Make sure the latch of the ATX power connector clicks into place to
ensure a solid attachment.
Note 3: Your ATX power supply must be supplied to ACPI +5V standby power
and at least 720mA compatible.
Note 4: Make sure your power supply have enough power for higher speed
processor installed.
E1
P4 ATX Power supply headers
CN7 CN6
1
1
CN7
CN6
ATX12V
ATXPWR
