3.6 Integrated illumination unit
Overview

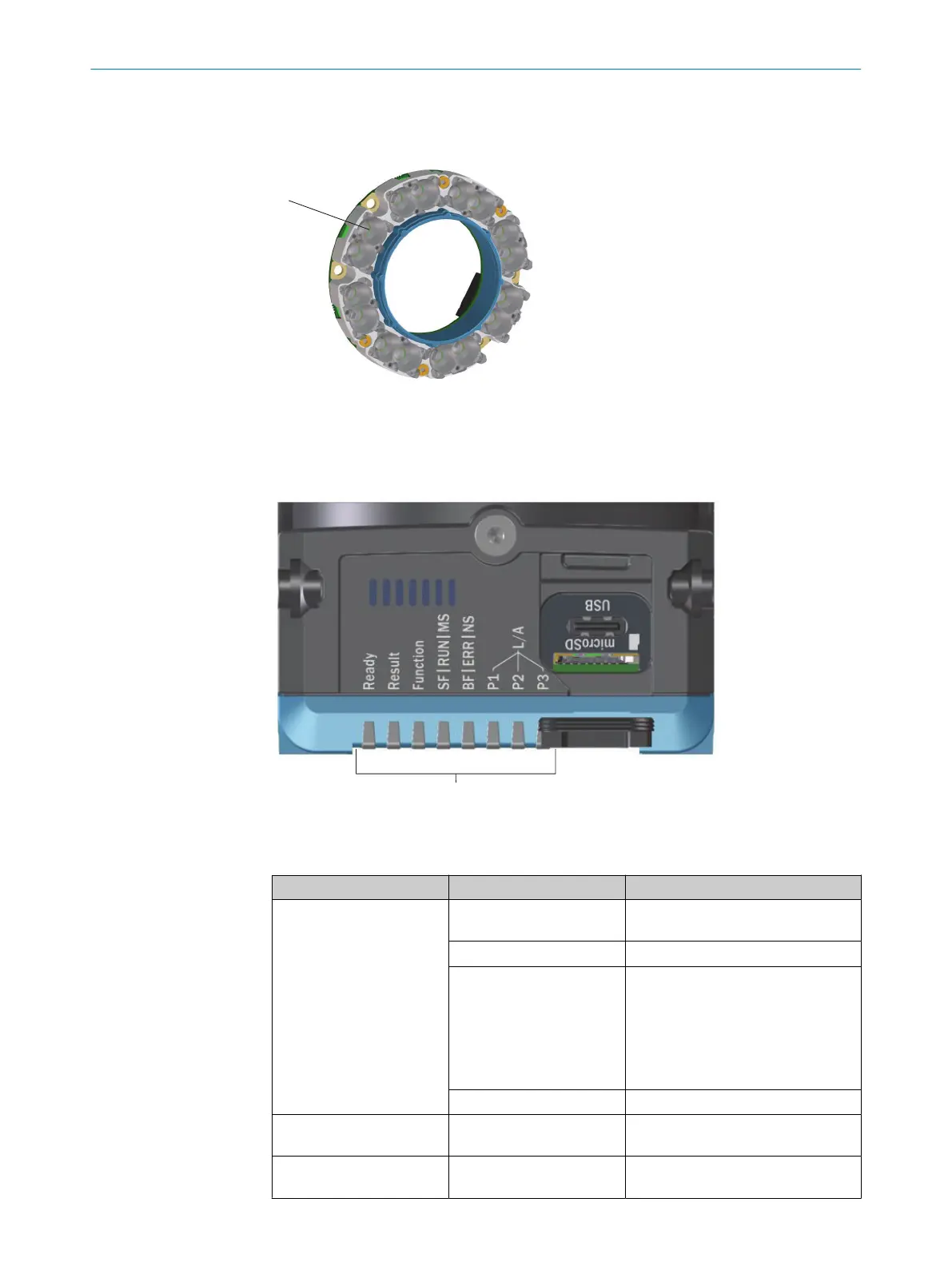

Figure 2: VI55I Illumination unit
1
16 illumination LEDs
3.7 Display and control elements
1
StatusLEDs
Status LEDs
Display LED (color) Description
Ready
O (Green)
The device is switched on and ready
for use
O (Red)
Error
Ö (Green)
Device is not ready for use.
Reasons
•
Firmware update
•
Parameter change by the user
•
Parameter change by another
device (e.g., PLC)
O (Blue)
Device powers up
Result Red, green, blue, fuchsia,
yellow, aqua, white
Configurable by the user
Function Red, green, blue, fuchsia,
yellow, aqua, white
Configurable by the user
PRODUCT DESCRIPTION 3
8029044/1MYO/2024-04 | SICK O P E R A T I N G I N S T R U C T I O N S | Inspector83x
17
Subject to change without notice
