SICK Inspector83x - Dimensional Drawing

12.7 Dimensional drawing
P1
P2
X1 P3
X2
P1
P2
X1 P3
X2
91.8 (3.61)5.8 (0.23)
50 (1.97) 6.5 (0.26)
84.5 (3.33)
76.6 (3.02)
108 (4.25)
10.7 (0.42) 13.6 (0.54)
63.1 (2.48)
23.9 (0.94)
0.2 (0.01)
55.4 (2.10)
min. 8 (0.31) - max. 48 (1.89)
1
2

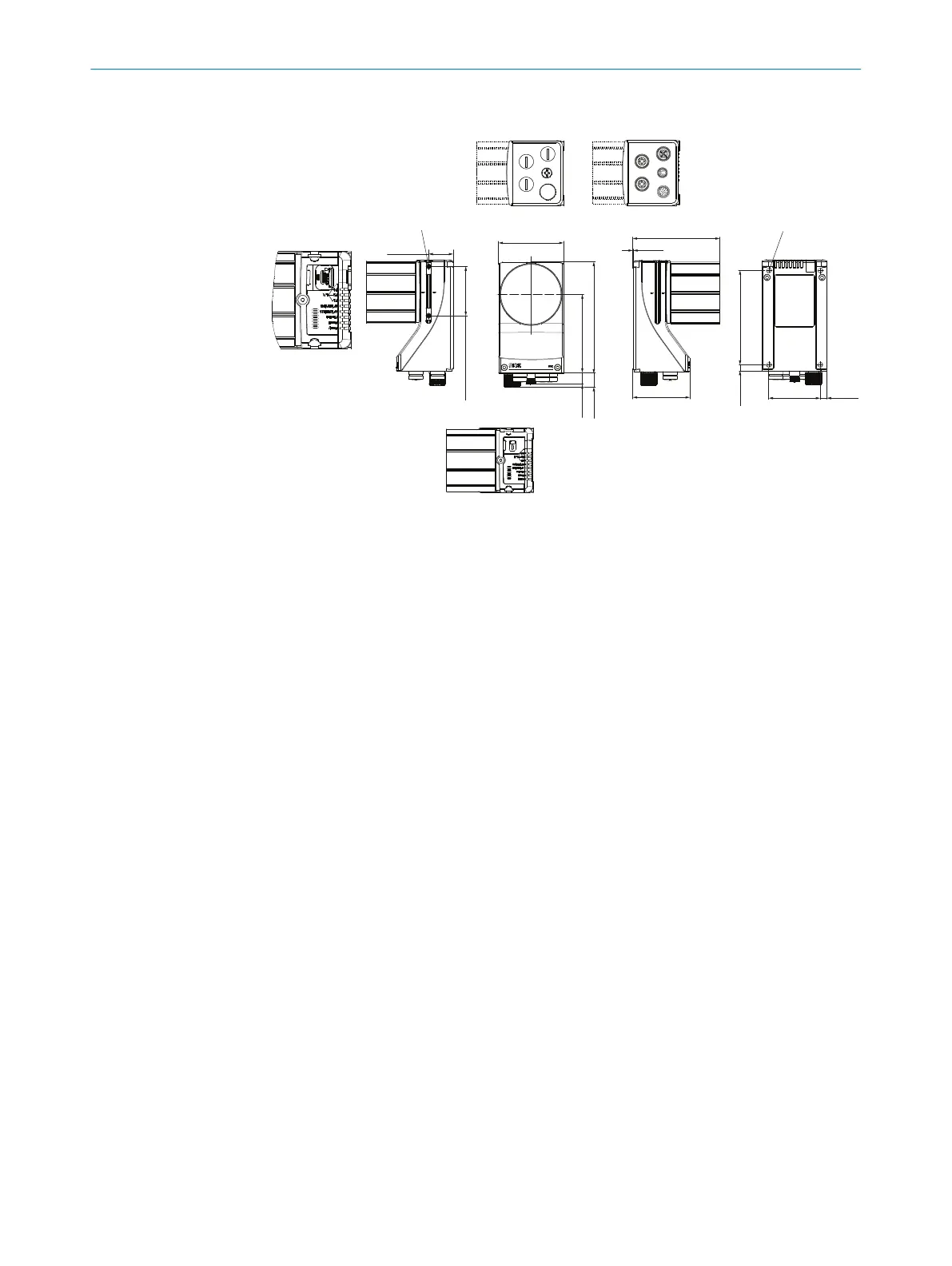

Figure 19: Structure and device dimensions, unit: mm (inch), decimal separator: period
1
2 M5 sliding nuts; 5.5 mm deep; pivoting; as an alternative method of mounting the
device
2
4 M5 tapped blind holes, 5.5 mm deep; for mounting the device
