12.5 Ambient data
Inspector83x
Electromagnetic
compatibility
(EMC)
Immunity: IEC61000-6-2:2016, ENIEC61000-6-2:2019
Emission: IEC61000-6-4:2018, ENIEC61000-6-4:2019
Vibration resist‐
ance
EN60068-2-6:2007, EN60068-2-64:2019
Shock resistance EN60068-2-27:2008
Ambient operat‐
ing temperature
0°C…+40°C
Storage tempera‐
ture
–20°C…+70°C
1)
Permissible rela‐
tive humidity
0% ... 90%, non-condensing
Ambient condi‐
tions
Degree of contamination 2 (according to EN61010-1)
Altitude <5000m above sea level
1)
Store in a place protected from moisture and dust.
12.6 Field of view diagrams
Inspector83x Flex
Device type: V2D8305P-xxxxxxxxxx
0
500 x 416
1000 x 831
2000 x 1662
2500 x 2078
1500 x 1247
0.2
0.3
0.1
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0 500 1000 1500 2000 2500 3000
Working distance/focus position (mm)
Field of view: H x V (mm)
Inspector83x Flex 5 Mpx
Approx. resolution (mm/px)
a
b
c
a: f = 8 mm
b: f = 12 mm
c: f = 16 mm
d: f = 25 mm
d
1
2
3

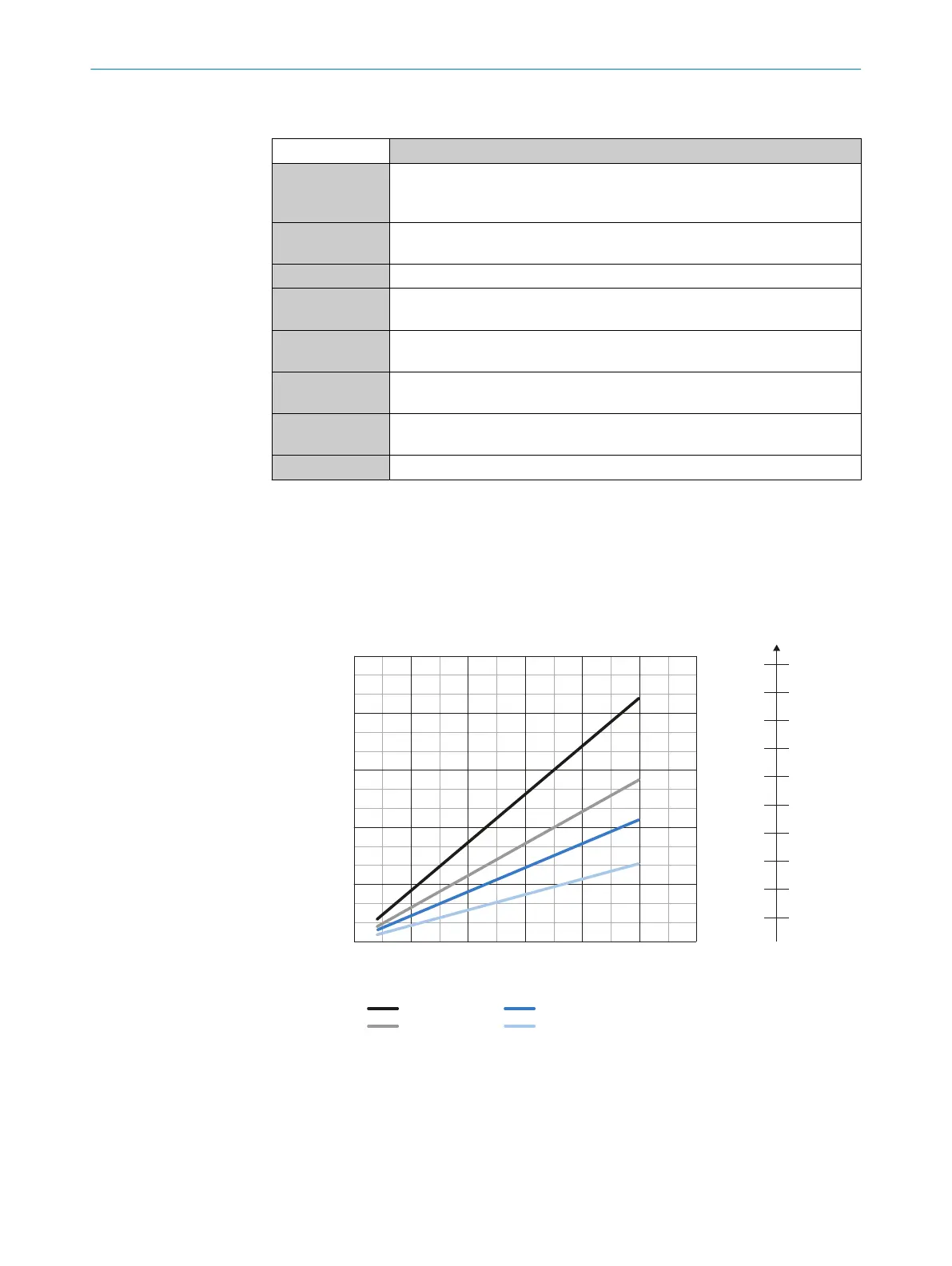

Figure 17: Field of view diagram for Inspector83x Flex, 5 megapixel
1
Field of view: horizontal x vertical in mm
2
Approximate resolution in mm/px
3
Working distance/focus position in mm
Interpreting the diagrams
You can use the diagram to determine the following data:
