3 Product description
3.1 Scope of delivery
No. of
units
Component Note
1 Device in the version ordered
•
Camera housing with C-mount threaded connec‐
tion
•
Order individual components separately as
accessories and mount them independently.
•
Light inlet is sealed with a protective cap.
•
Electrical connections are sealed with protective
caps.
•
Without holders and connecting cables
2 Sliding nut, 5.5mm deep, M5
threaded mounting hole
•
Alternative mounting option for the device
instead of the threaded mounting hole
•
Use in pairs.
1 Hexagon key WAF2 For mounting the VI83I illumination unit
1 Commissioning sample For determining the camera position and adjusting
the focus and aperture
1 Printed safety notes, multilin‐
gual
Brief information and general safety notes
The actual scope of delivery may differ for special designs, additional orders or due to
the latest technical changes.
3.2 Type label
The type label contains information for identifying the product.
Lector85x
V2D8512R-1MCXXXALOSXXXX
Product ID:
pid.sick.com/ 1120440 / 21010001
MAC P1/P2:
SICK AG, DE-79276 Reute
Made in Germany
Manufactured:
September 2021
00:06:77:05:2E:13
00:06:77:05:2E:12
MAC P3:
DC 24 V ±20%
24 W
Imax: 2 A
P/N
S/N
Adjustable
F O C U S
MP
12
25
1
2
3
6
8
7
4
5
Connectivity
LA
R-41074764
IS
13252
E244281
I.T.E.

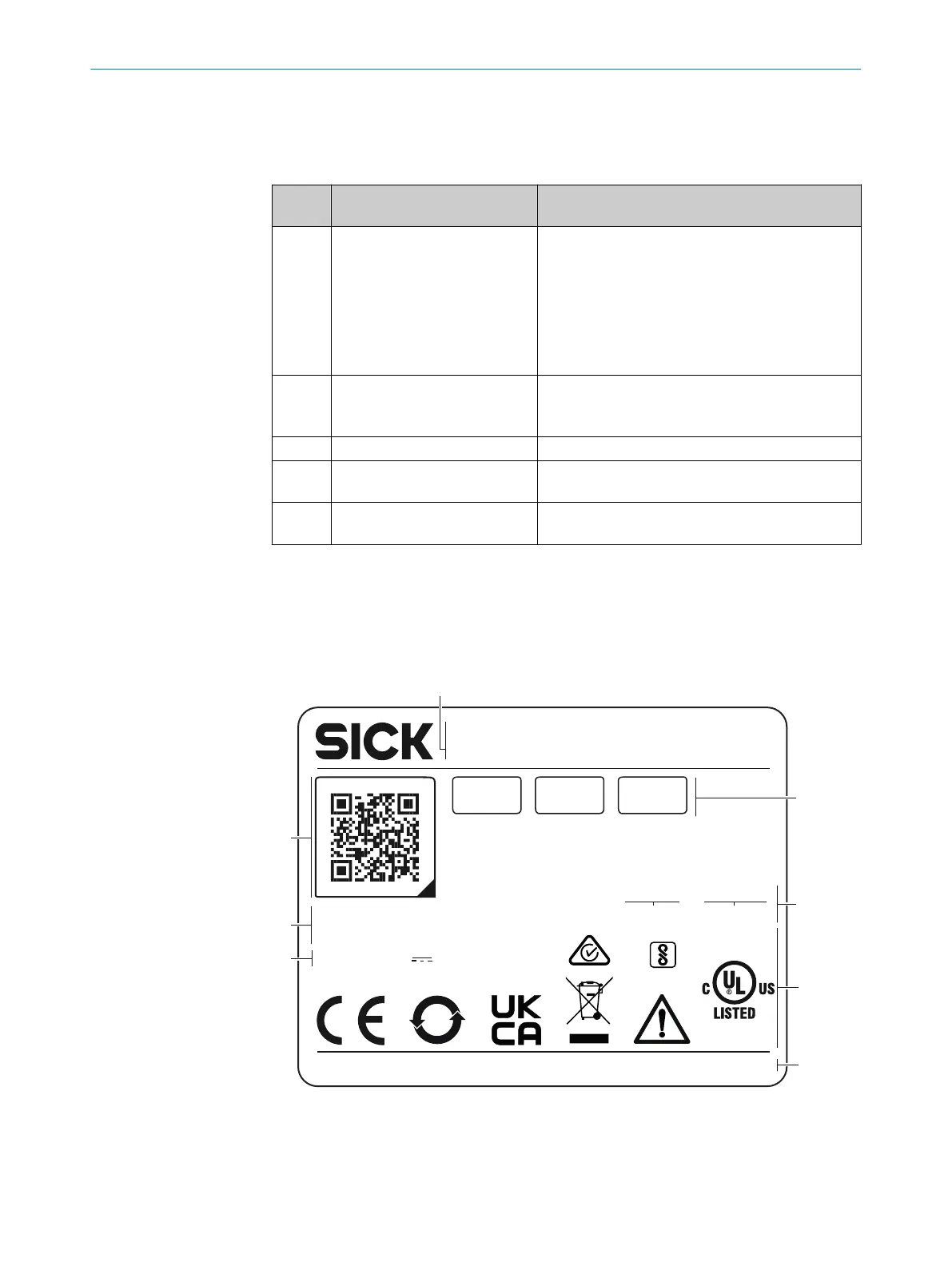

Figure 1: Lector85x type label (example)
1
Product and type designation
2
Product characteristics
3
Product ID
PRODUCT DESCRIPTION 3
8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O
11
Subject to change without notice
