Conformity mark and certification mark
5
Place and date of production
6
Supply voltage and maximum power consumption
7
MAC address
8
QR code with a link to the product and more information
3.3 Type code
Type code structure
V2D a b c d – e f g h i j k l m n
Position Description Characteristic
a Product family 8: 8xx series
b Platform, housing 5: Advanced Line
c Resolution of the image sensor 05: 5megapixels (2,464px x 2,048px)
09: 9megapixels (4,096px x 2,176px)
12: 12megapixels (4,096px x 3,008px)
d Function R: Lector - Reading
e Generation 1: First generation
f Image sensor type/color M: Monochrome
g Optical/focusing system C: C-mount
h Illumination unit X: Without
i Focal length X: Without
j Filter X: Without
k CPU A: Advanced
l Connection modules L: CAN I/O
F: Fieldbus
m IP protection class and front screen 0: Without
n Temperature range S: 0°C…50°C (standard)

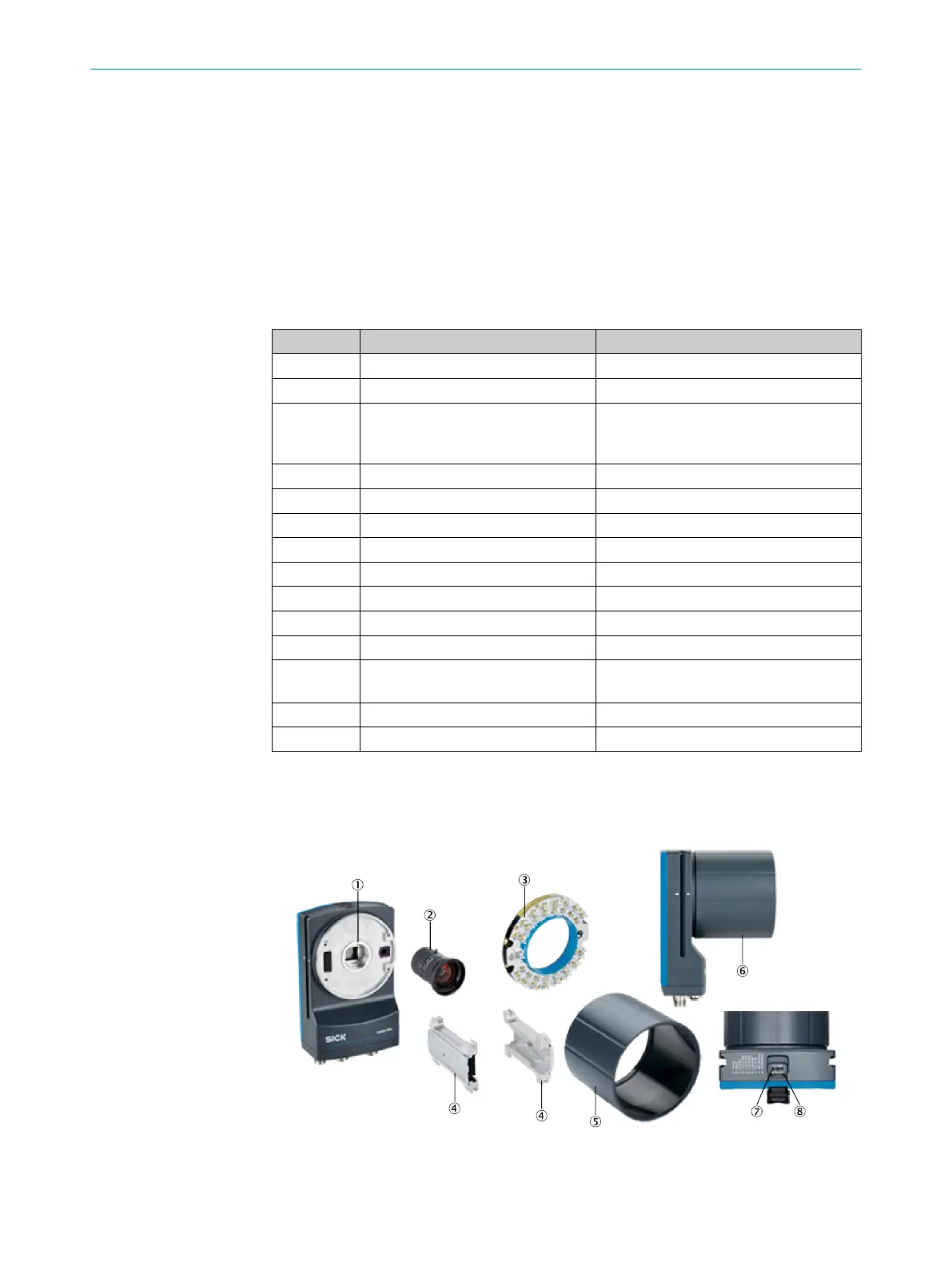

3.4 Product overview
Product overview
1
C-mount thread
2
Lens
3 PRODUCT DESCRIPTION
12
O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK
