SICK Lector85x Operating Instructions

3.7 Working distance

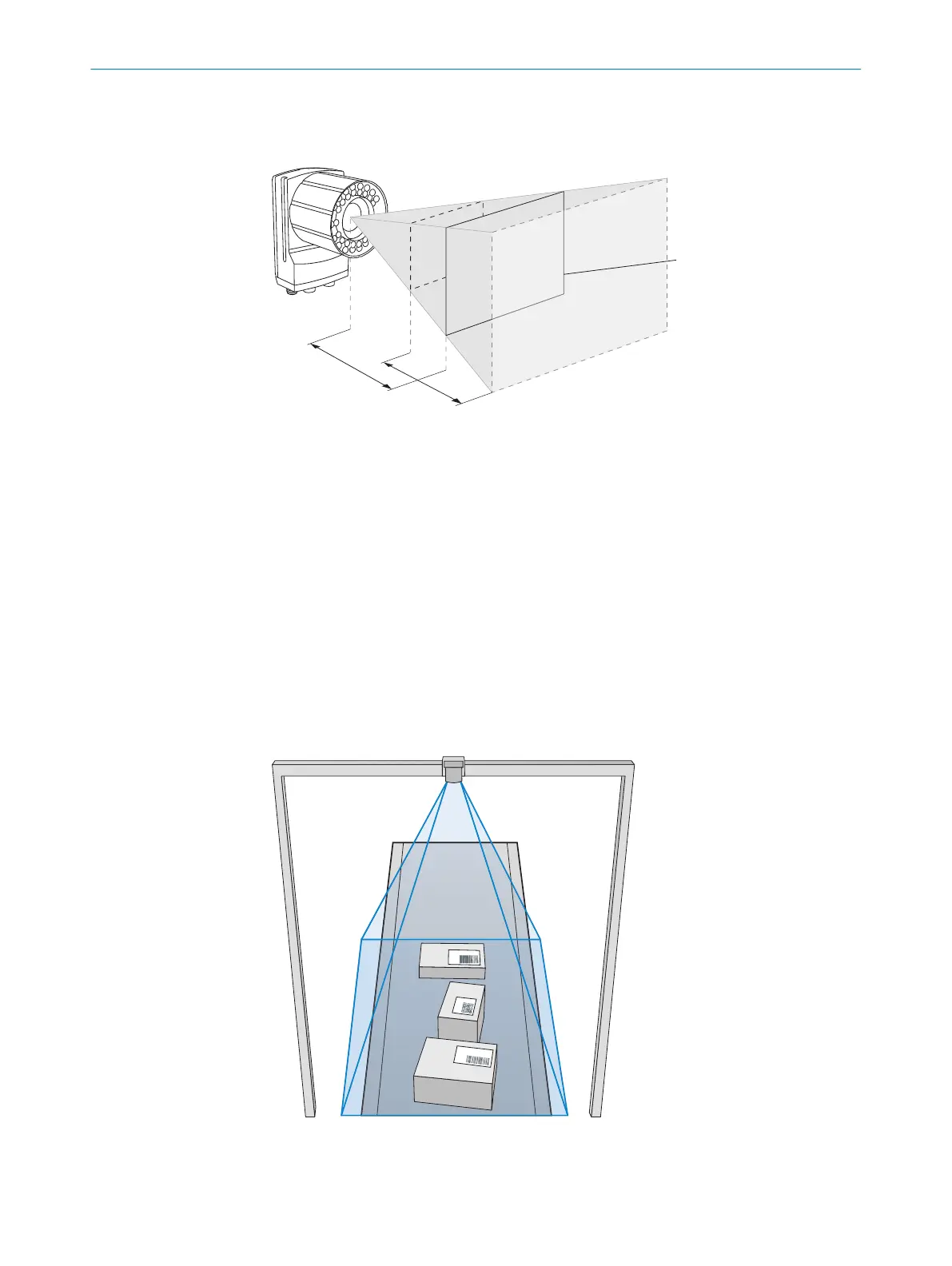

Working distance and field of view size
1
2
3
1
Working distance
2
Depth of field
3 Field of view size: horizontal x vertical (mm) in working distance 1
The perceived field of view area is determined by the focus position, the focal length of
the lens, and the working distance. The necessary working distance can be determined
from the field of view diagram.
Focus setting
The focus position can be adjusted manually on the lens.
The focus position is valid for one working distance. The device does not perform auto‐
matic tracking (auto focus) if, for example, the working distance changes significantly.
3.8 Assignment of codes to objects
Overview
Figure 3: Assignment of codes to objects
PRODUCT DESCRIPTION 3
