Preventive Maintenance
Installation

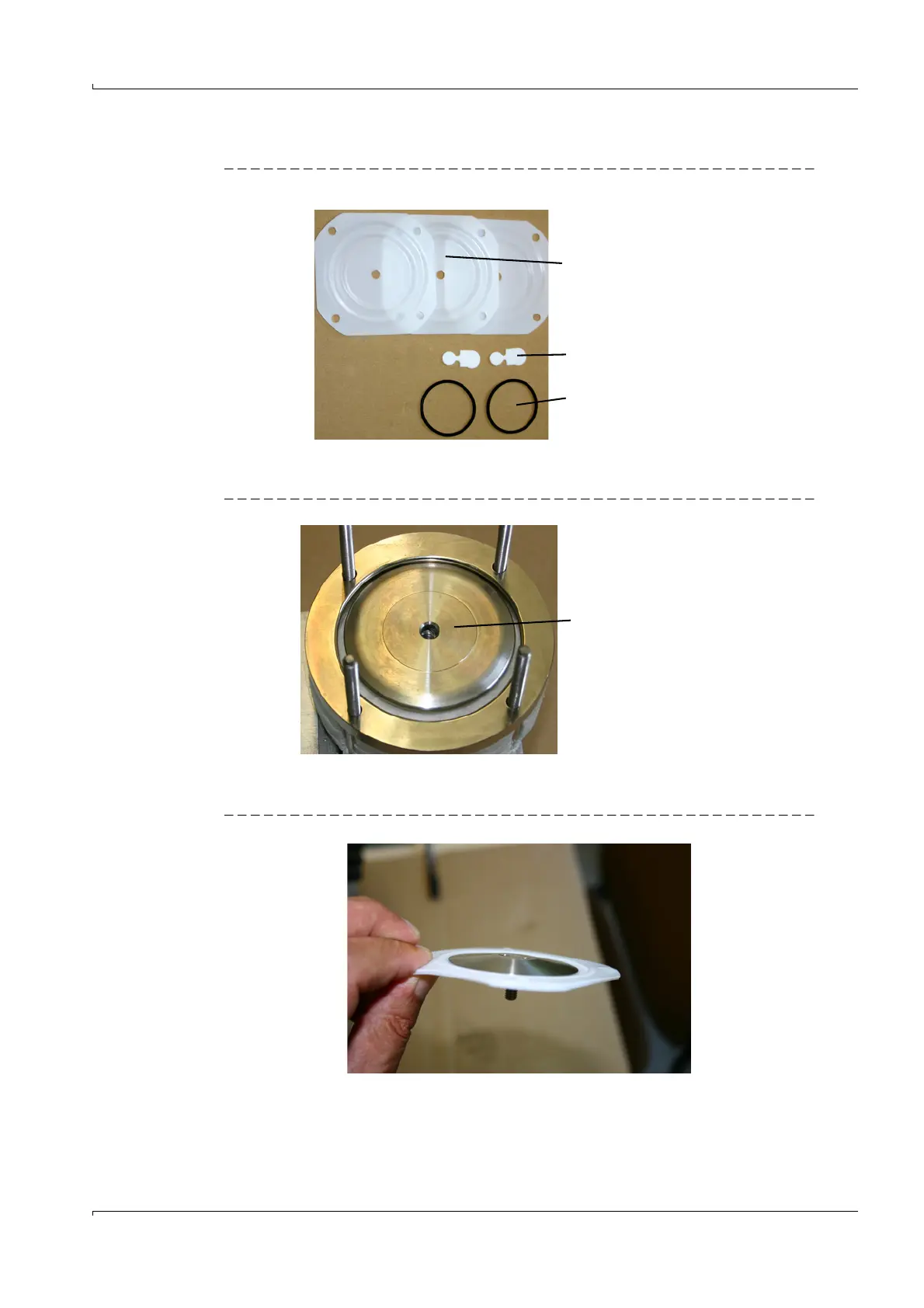

Fig. 24 Pump spare parts
1 If dismantled: Insert connecting rod plate
Fig. 25 Connecting rod plate
2 Fit the new pump membranes (3 pcs.) onto the pressure disk.
„Upside“ doesn’t matter, but all membranes must have the same direction.
Fig. 26 Membranes on pressure disk
Pump membranes
Valve plates
O-rings
(only at yearly maintenance)
Connecting rod plate
