Preventive Maintenance
36 MCS100E HW Maintenance Manual 8009624/2009-09 (V1.4) ©SICKMAIHAKGmbH

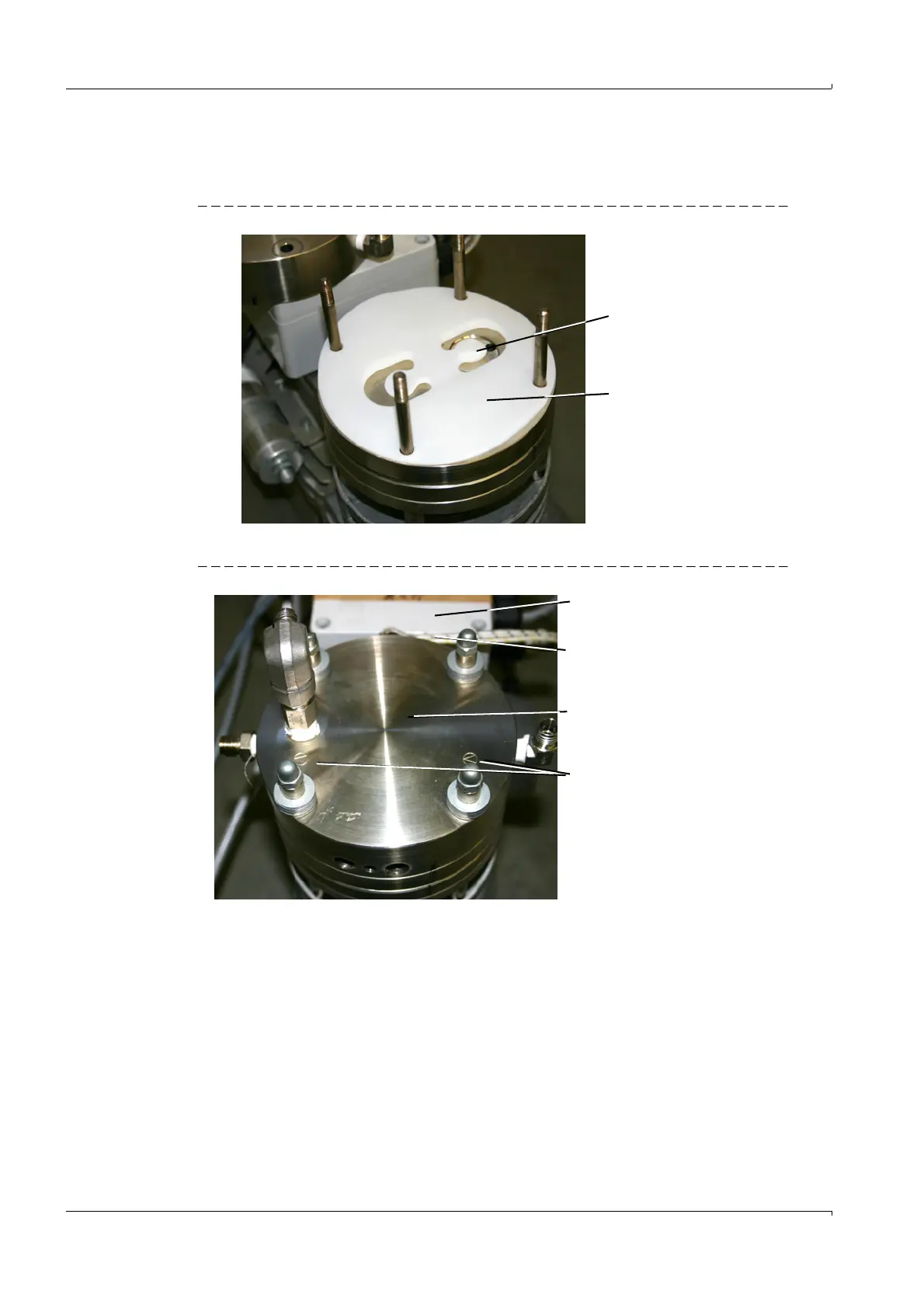

7 Fit the valve plate (top/bottom optional).
The tongue of the valve plate must be positioned above the cutout in the intermediate
plate.
Fig. 42 Valve plate
8 Fit the pump head.
Fig. 43 Pump head
– According to line marking
OR
– The connections of the heating cartridge must point in the direction of the connec-
tion box.
The directional arrows on the pump head must point to the "left" (according to
→
Fig. 43).
Valve plate
Tongue
Pump head
Heating cartridge connections
Directional arrows
Connection box
