Preventive Maintenance
9 Fit the cup springs (8 pcs.).

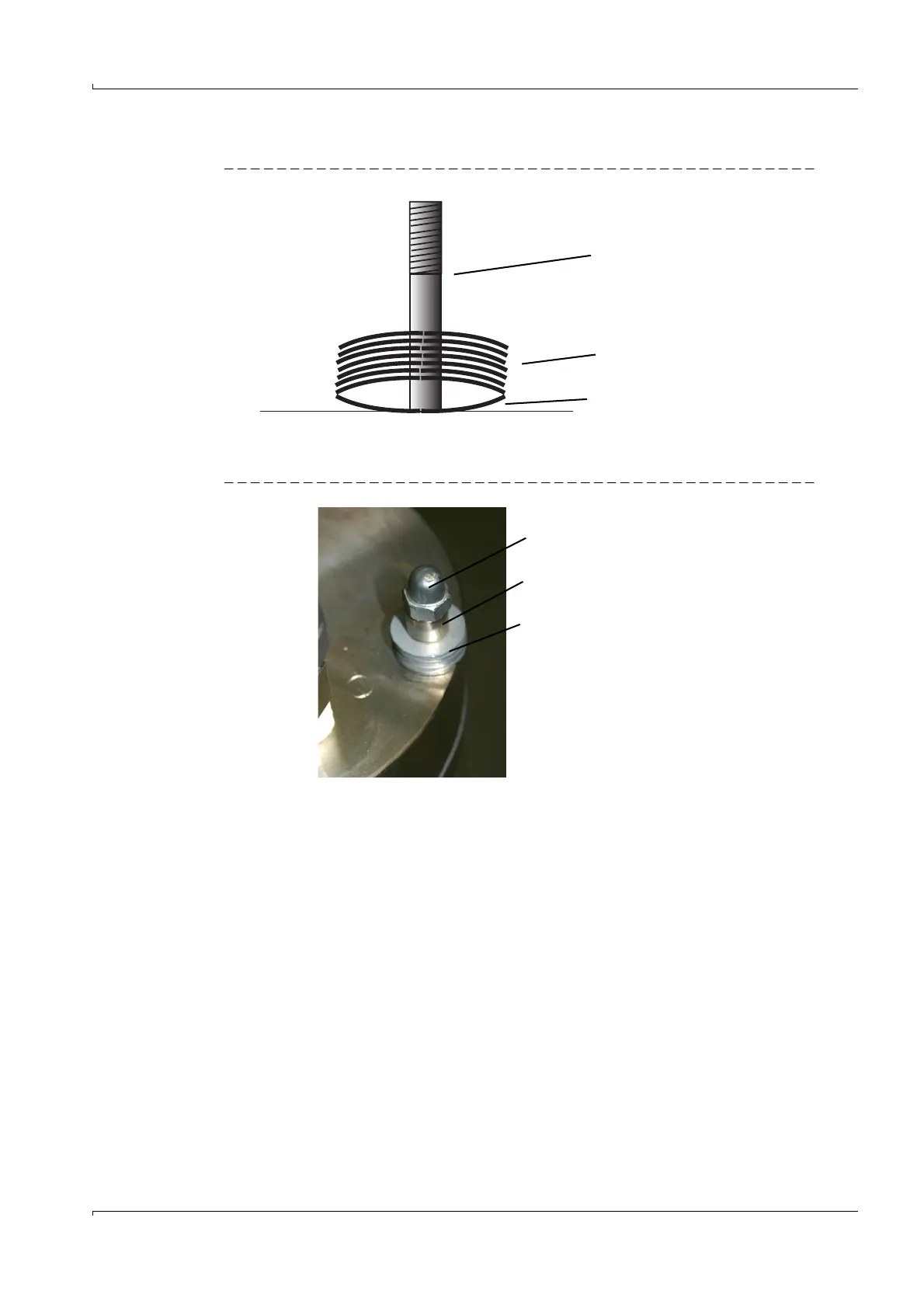

Fig. 44 Cup springs, position
Fit the bottom cup spring with the concave side pointing upwards.
Fit the remaining 7 cup springs with the concave sides pointing downwards.
Fig. 45 Screw connection of pump head
10 Fit the spacer bolts.
11 Fit the cap nuts and screw on up to the stop (not too tight).
Bottom cup spring
7 cup springs
Separator bolt
Cap nut
Spacer bolt
Cup springs
