3.4.4 Logbook

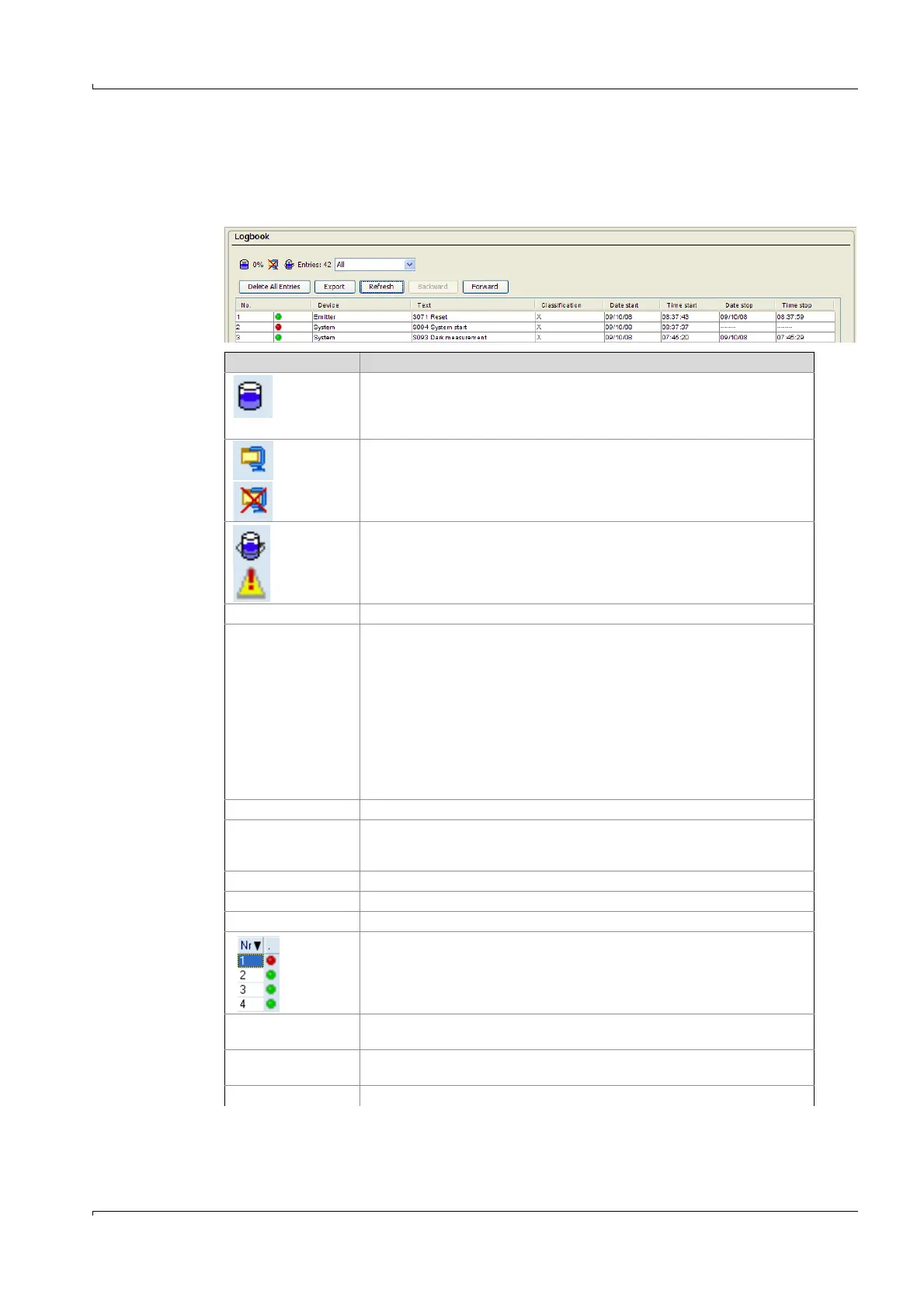

Menu: Diagnosis/Logbook
Max. number of entries: 6000.
(Representation: Uncompressed data storage)
Designation Remark
Fill level of logbook in %.
When the characters are red: The logbook is full.
Warning mode: Further entries are not accepted.
Circular buffer mode: Oldest entries are overwritten.
Data storage:
Symbol not crossed out: Compressed.
Symbol crossed out: Uncompressed.
Significance and default: → p. 35, §3.5.7
Circular buffer mode
Warning mode
Significance and default: → p. 35, §3.5.7
Entries Number of entries of selected filter.
Filter for messages Only the filtered messages are shown.
- Failure (active)
- Failure (all)
- Maintenance request (active)
- Maintenance request (all)
- Uncertain (active)
- Uncertain (all)
- Others (active)
- Others (all)
- All active messages
- All messages
Delete all entries. Caution: All logbook entries in the MCS300P are deleted.
Export All entries selected via the filter ( further back in this Table) are saved on the
PC in C:\My Documents as .log file.
Format: CSV (comma-separated list). Can be read in EXCEL, for example.
Refresh To refresh the display: Click.
Up Scroll to older entries
Down Scroll to newer entries
Consecutive message number.
Red LED: Message still pending.
Green LED: Message no longer pending.
Device Activating element: System, measured value identifier (sample gas component),
subassembly, Evaluation module
Entries
[1]
Number of times errors have occurred.
Significance and default value: (→ p. 35, §3.5.7)
Text Logbook message (error messages Operating Instructions MCS300P).
