SICK MCS300P User Manual

Operation
MCS300P · Technical Information · 8013265 V1-2 · © SICK AG 27
Subject to change without notice
3.5.2.1 Measuring box
3.5.2.2 Bargraph

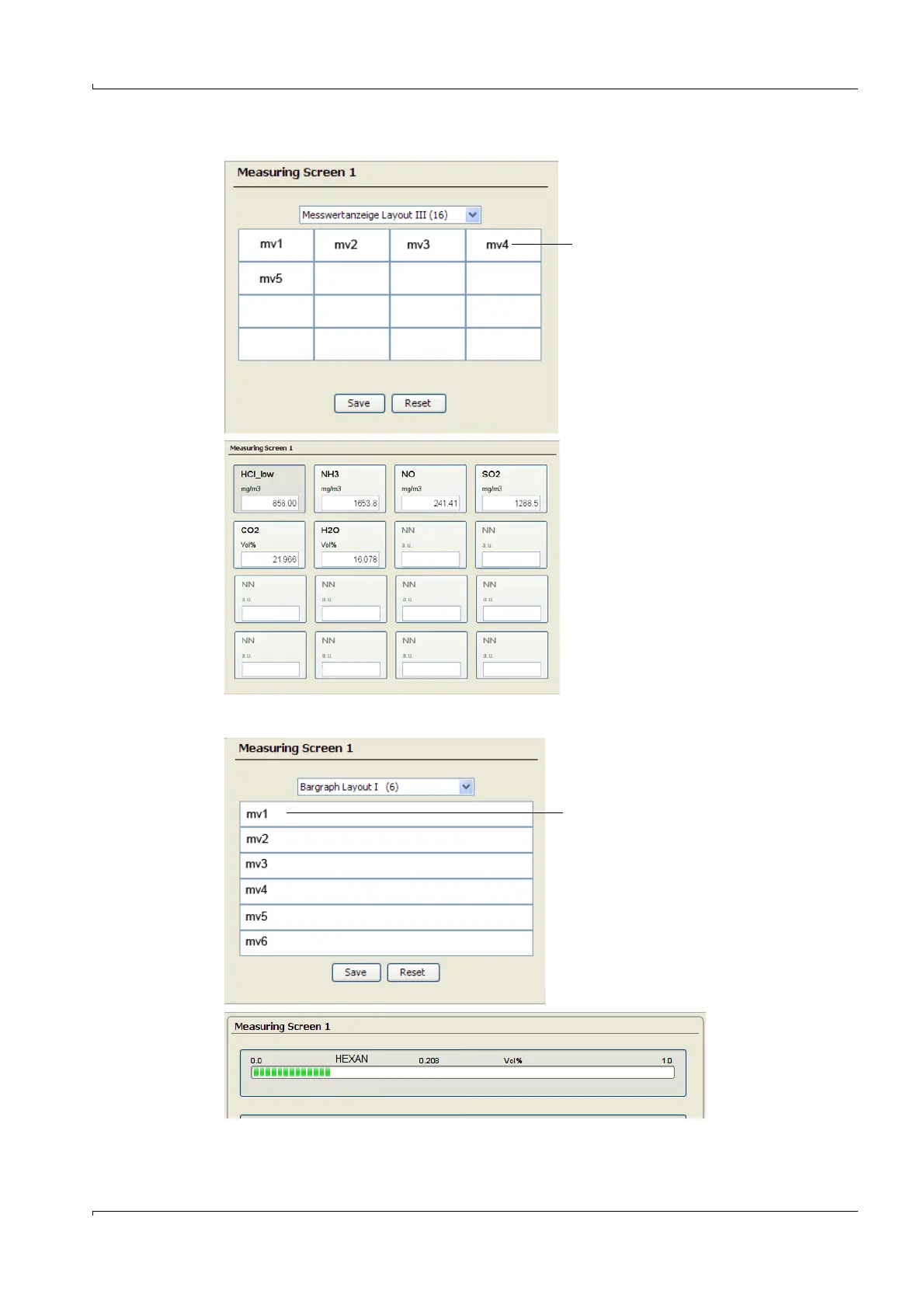

Example: Measuring Screen 1 with
Layout III (16 measuring boxes)
▸ Enter the desired identifiers (tags ).
Tags MCS300P: → p. 42, §3.8
Scaling of measuring box: → p. 19, §3.3.1.1
The Measuring Screen then has the following
appearance:
The component names and units come, for
example, from the factory settings (e.g., RVi),
from a filter source (e.g., FVi) or from the ana-
lyzer.
Example: Measuring Screen 1 with bar-
graph I (6 bars)
▸ Enter the desired identifiers (tags ).
Scaling of measuring box: → p. 19, §3.3.1.1
The Measuring Screen then has the following
appearance:
