SICK RAY26 User Manual

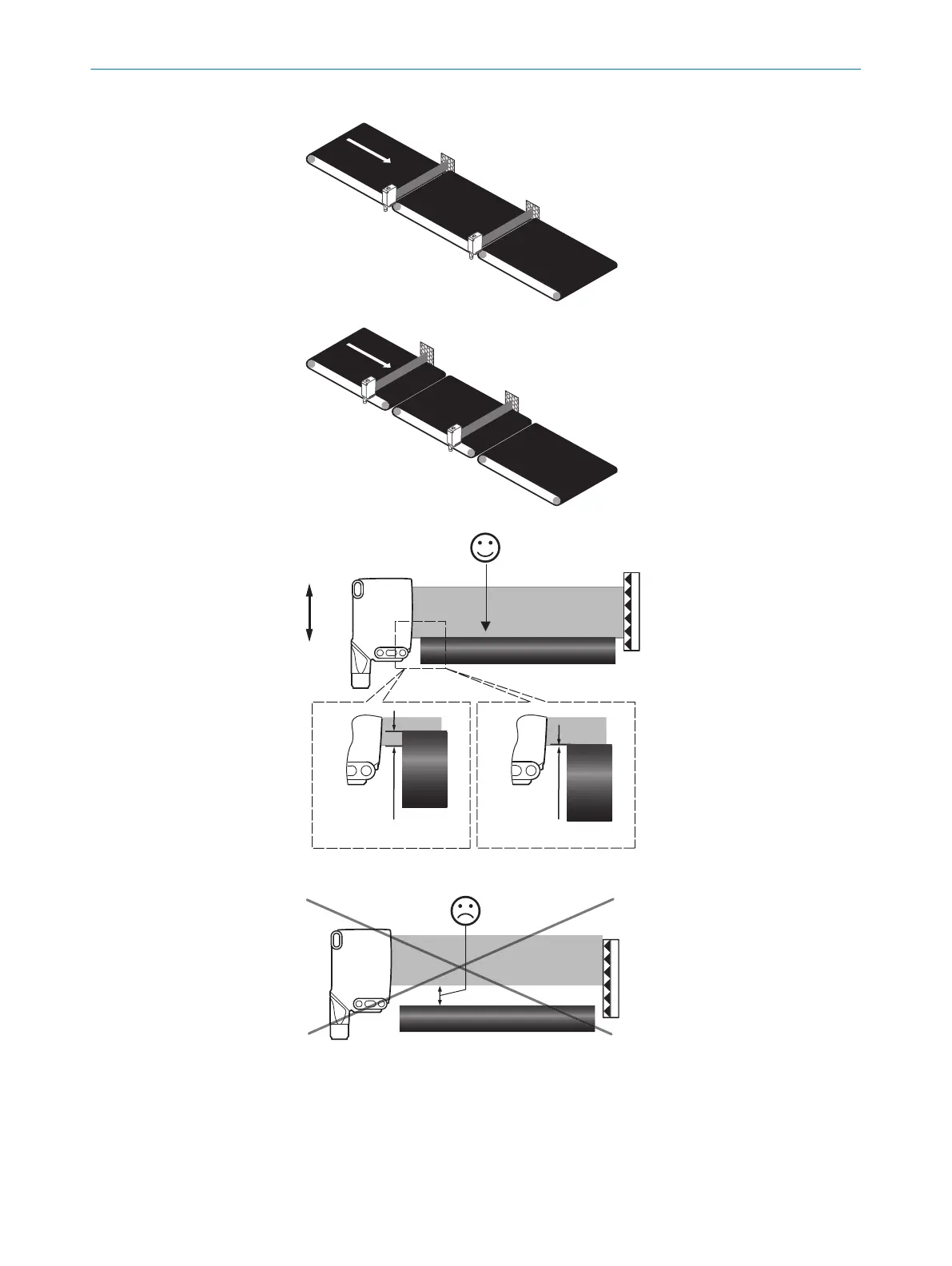

1 Alignment of the light band in the gap between two conveyor belts
2 a) Alignment of the light band above the conveyor belt.
The light band has to be positioned parallel to the conveyor belt.
3 mm
0 mm
1
2
1 RAY26P-xxxxx1 / RAY26P-xxxxx3 / RAY26P-xxxxx5 / RAY26P-xxxxx9
2 RAY26P-xxxxxA
b) Take a metal plate and position it in front of the reflector. Rotate the sensor up
a little. The light band is approx. 20 mm above the conveyor belt.
7
COMMISSIONING
10
8022178.18JF 02.07.2020 | SICK
Subject to change without notice
