2.3 Outputs
2.3.1 Digital transistor output:
Active = ready
Non active = error or programming mode
2.3.2 Analogue output (resolution 16 bit) selectable:
0 - 10 V
0 - 20 mA
4 - 20 mA
• By changing "min" and "max" positions the analogue output operates
inverse.

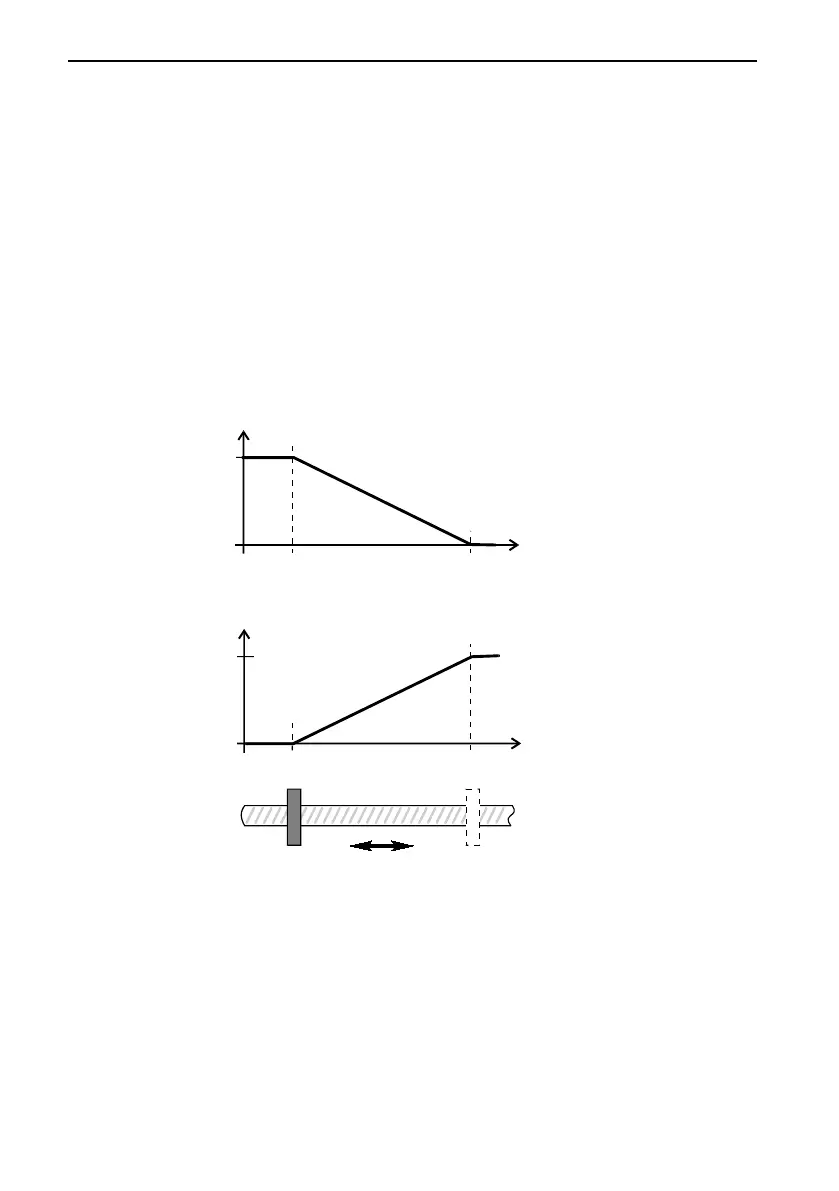

Figure 2: Correlation Position - Analogue output
• In "min" position the analogue output is 0 V (0/4 mA).
• In "max" position the analogue output is 10 V (20 mA).
• Positions between "min" and "max" will be converted in analogue signal
with a
16 bit resolution.
• The positions "min" and "max" are programmable by teach in function.
10 V (20 mA)
10 V (20 mA)
0 V (4 mA)
0 V (4 mA)
analog signal
max
min
position
position
min
max
