4.5 Check function

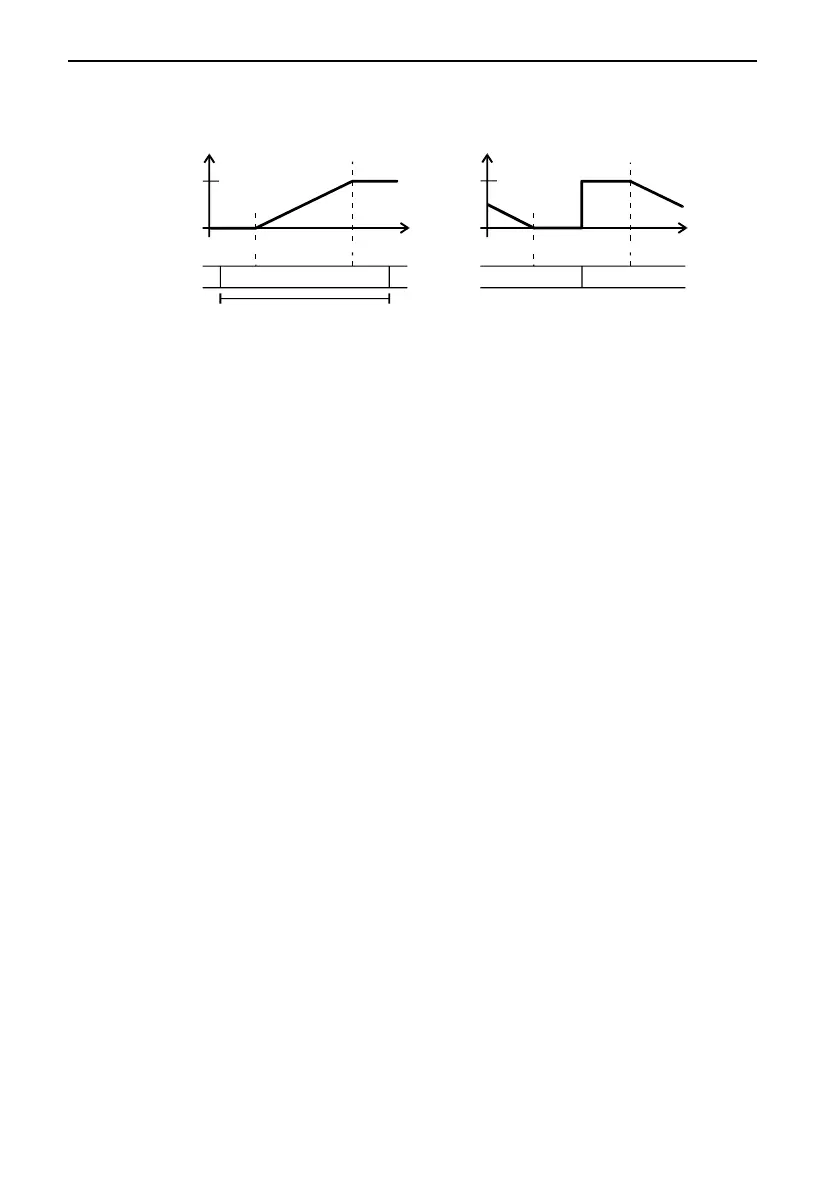

Figure 12: Encoder overflow
The encoder must be mounted in such a way that overflow digits are
outside the move range. After readjustment of the encoder, program "min" /
"max" position again.
position
10 V (20 mA)
0 V (4 mA)
max
min
4096
false
0
overflow digits
max
min
040964096
right
0
range okay
position
