7.3.3 Digital output 2 teach-in (UC40-xxxxxH only)
7.3.3.1 Factory settings of the digital output
•
N/O contact
•
Switching point at maximum operating range
7.3.3.2 Teaching in switching point (Single Point Mode)

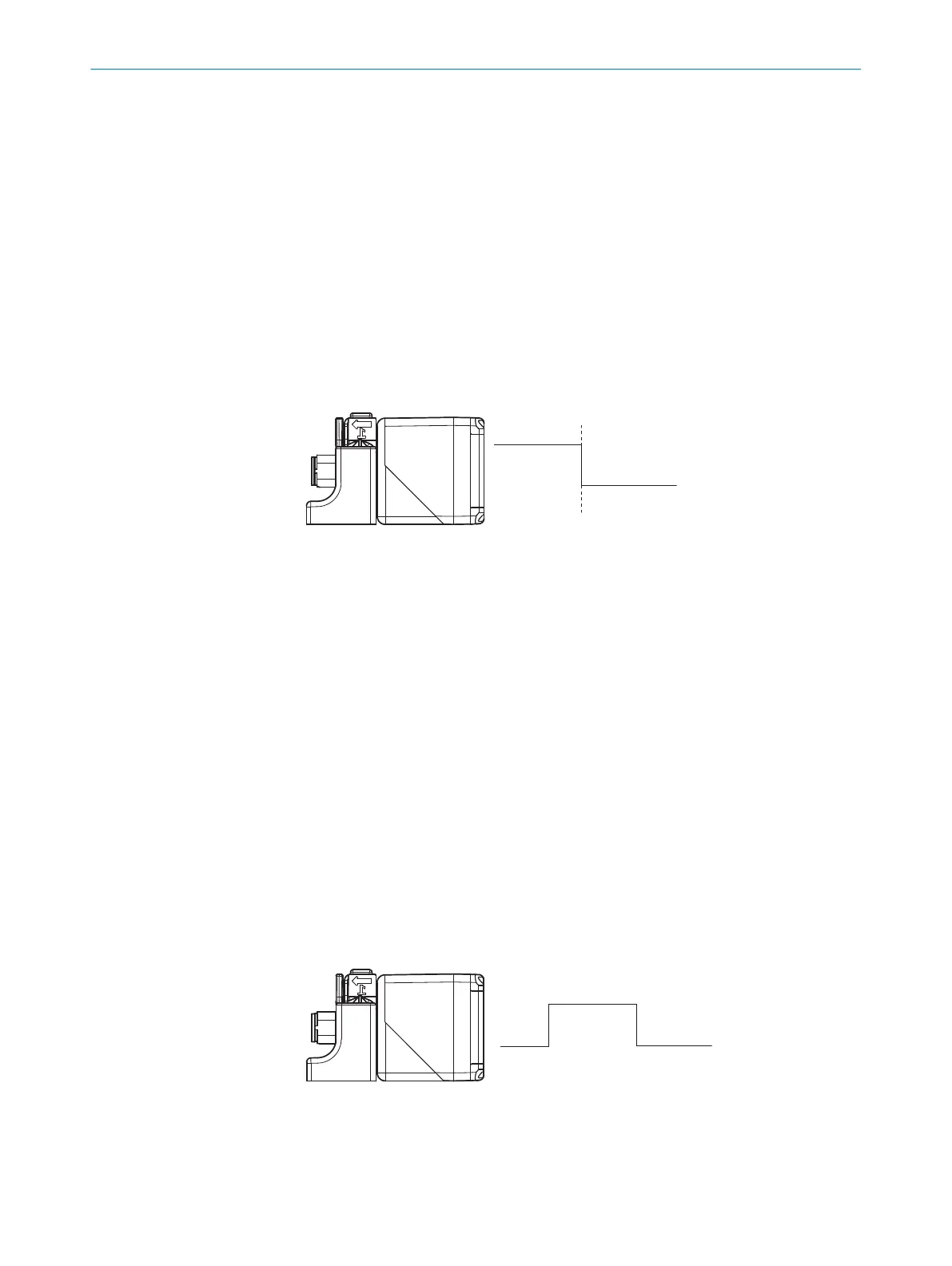

Overview
When the object is located below the taught-in switching point, the digital output is
active.
Approach
Teaching in the switching point (distance to object as switching point)
1
1.
Position the object at 1.
2. Press T1 pushbutton for 3 seconds until LED 3 and LED 4 flash simultaneously.
✓
LED 3 and LED 4 flash alternately.
3. Press T1 for 1 second.
✓
The switching point is taught in. The device automatically switches to normal
operation mode.
Teaching in switching point (distance to object + 8% as switching point)
1.
Position the object at 1.
2. Press T1 pushbutton for 3 seconds until LED 3 and LED 4 flash simultaneously.
✓
LED 3 and LED 4 flash alternately.
3. Press T1 for 3 seconds until LED 3 and LED 4 flash alternately again.
✓
The switching point is taught in. The device automatically switches to normal
operation mode.
7.3.3.3 Teaching in switching window (Window Mode)
Overview
When the object is located within the taught-in switching window, the digital output is
active.
Approach
21
1.
Position the object at 1.
2. Press T1 pushbutton for 3 seconds until LED 3 and LED 4 flash simultaneously.
✓
LED 3 and LED 4 flash alternately.
3.
Position the object at 2.
✓
LED 3 and LED 4 flash alternately.
7 OPERATION
24
O P E R A T I N G I N S T R U C T I O N S | UC40 8027772//2022-08-11 | SICK
Subject to change without notice
