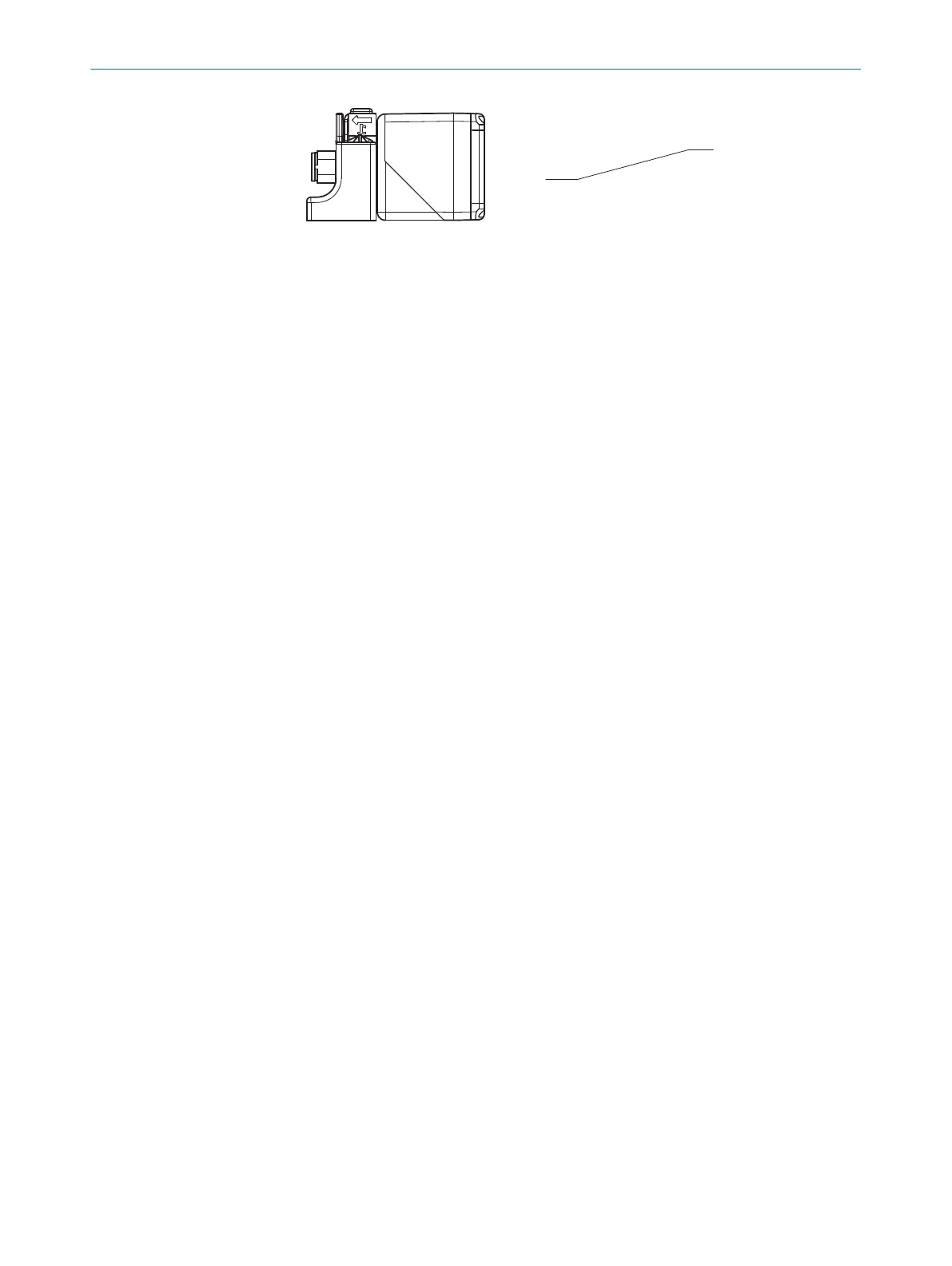

1 2
1.
Position the object at 1.
2. Press T1 pushbutton for 3 seconds until LED 1 and LED 2 flash simultaneously.
✓
LED 1 and LED 2 flash alternately.
3.
Position the object at 2.
4. Press T1 for 1 second.
✓
The scaling is taught in. The device automatically switches to normal operation
mode.
7.3.4.3 Adjusting the rising or falling output characteristic
Approach
1. Press operating key T1 for 13 seconds until LED 1 and LED 2 flash alternately.
✓
LED 1 flashes orange.
✓
LED 2 lights up green: rising output characteristic.
✓
LED 2 does not light up: falling output characteristic.
2. To change the setting, press T1 for 1 second.
3. Wait 10seconds.
✓
The rising and falling output characteristic are adjusted. The device automatically
switches to normal operation mode.
7.3.5 Resetting the device to factory settings
Approach
1. Switch off the supply voltage.
2. Press and hold the T2 pushbutton.
3. Press and hold the T2 pushbutton to switch on the supply voltage.
4. Press and hold T2 for 13 seconds until LED 3 and LED 4 stop flashing.
5. Release T2.
✓
The device is reset to the factory settings. The device automatically switches to
normal operation mode.
7.3.6 Activating and deactivating teach-in buttons and synchronization
Approach
1. Switch off the supply voltage.
2. Press and hold the T2 pushbutton.
3. Press and hold the T2 pushbutton to switch on the supply voltage.
4. Press and hold T2 for 3 seconds until LED 3 and LED 4 flash simultaneously.
✓
LED 1 does not light up.
✓
LED 3 flashes orange 1x: teach-in buttons and synchronization are activated (fac‐
tory setting).
✓
LED 3 flashes orange 2x: teach-in buttons are deactivated, synchronization is acti‐
vated.
✓
LED 3 flashes orange 3x: teach-in buttons and synchronization are deactivated.
✓
LED 3 flashes orange 4x: teach-in buttons are activated, synchronization is deacti‐
vated.
5. To change the setting, press T2 for 1 second.
6. Wait 10seconds.
✓
The setting is accepted. The device automatically switches to normal operation
7 OPERATION
26
O P E R A T I N G I N S T R U C T I O N S | UC40 8027772//2022-08-11 | SICK
Subject to change without notice
