7.4.4 Analog output teach-in (UC40-xxxxxH only)
7.4.4.1 Factory settings of the analog output
•
Rising output characteristic from minimum to maximum operating range
7.4.4.2 Scaling analog output
Overview
To scale the analog output, teach in a close sensor and distant sensor scaling limit. If
the distant sensor scaling limit is taught in first and then the close sensor scaling limit,
the limits are reversed internally.
Approach

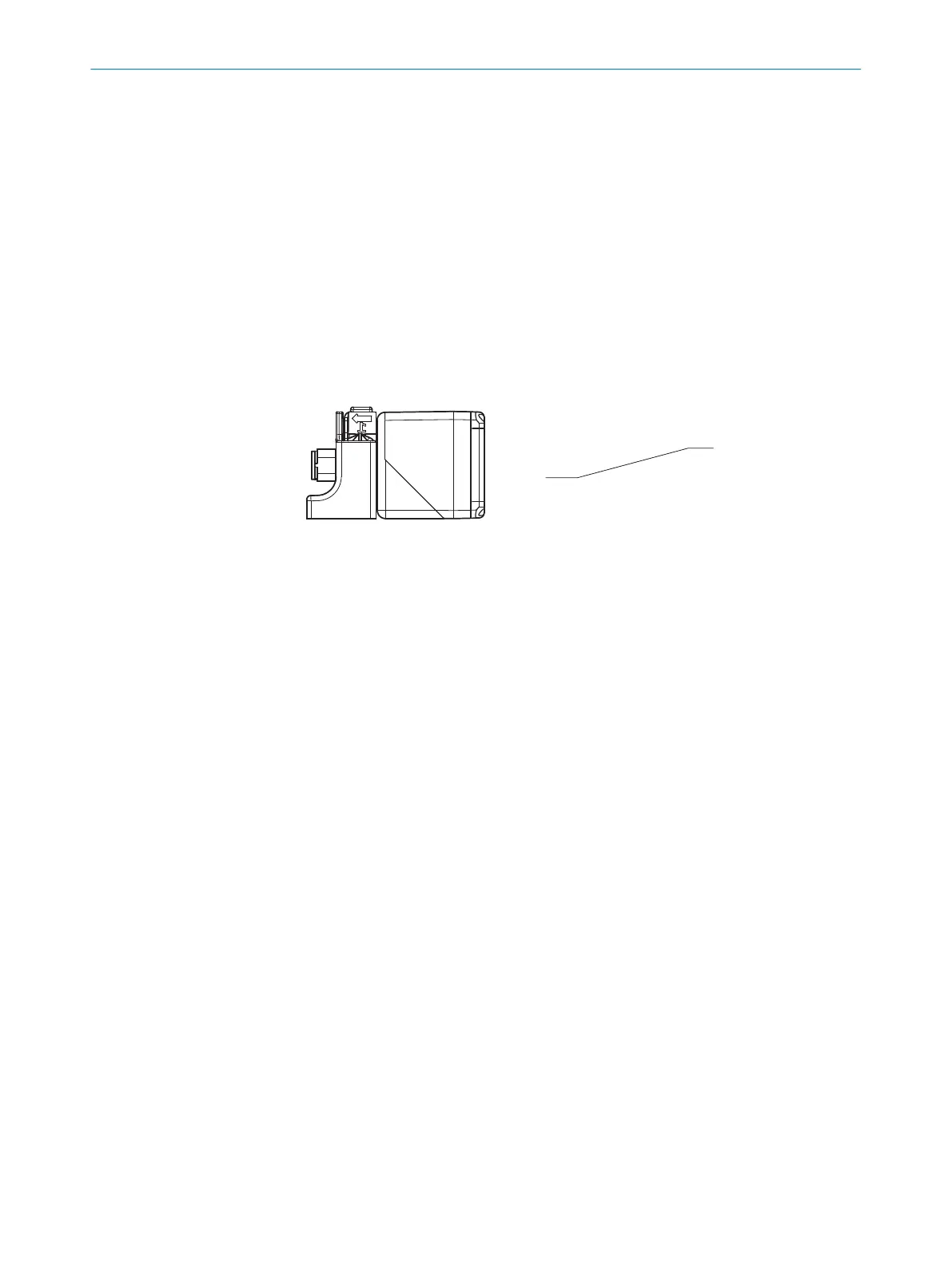

Teaching in the scaling limits
1 2
1.
Position the object at 1.
2. Apply M at MF for 3seconds until both LED 1 and LED 2 are flashing simultaneously.
✓
LED 1 and LED 2 flash alternately.
3.
Position the object at 2.
4. Apply M at MF for 1second.
✓
The scaling is taught in. The device automatically switches to normal operation
mode.
7.4.4.3 Adjusting the rising or falling output characteristic
Approach
1. Apply M at MF for 13seconds until both LED 1 and LED 2 flash alternately.
✓
LED 1 flashes orange.
✓
LED 2 lights up green: rising output characteristic.
✓
LED 2 does not light up: falling output characteristic.
2. To change the setting, apply M at MF for 1second.
3. Wait 10seconds.
✓
The rising and falling output characteristic are adjusted. The device automatically
switches to normal operation mode.
7.4.5 Resetting the device to factory settings
Approach
1. Switch off the supply voltage.
2. Apply M at MF.
3. Switch on the supply voltage.
4. Wait for 13 seconds until LED 3 and LED 4 stop flashing.
5. To apply the factory settings, separate M from MF before switching off the supply
voltage.
✓
The device is reset to the factory settings. The device automatically switches to
normal operation mode.
