2. Apply L+ at MF for 3seconds until both LED 1 and LED 2 are flashing simultane‐
ously.
✓
LED 1 and LED 2 flash alternately.
3. Apply L+ at MF for 1second.
✓
The switching point is taught in. The device automatically switches to normal
operation mode.
Teaching in switching point (distance to object + 8% as switching point)
1.
Position the object at 1.
2. Apply L+ at MF for 3seconds until both LED 1 and LED 2 are flashing simultane‐
ously.
✓
LED 1 and LED 2 flash alternately.
3. Apply L+ at MF for 3seconds until both LED 1 and LED 2 flash alternately again.
✓
The switching point is taught in. The device automatically switches to normal
operation mode.

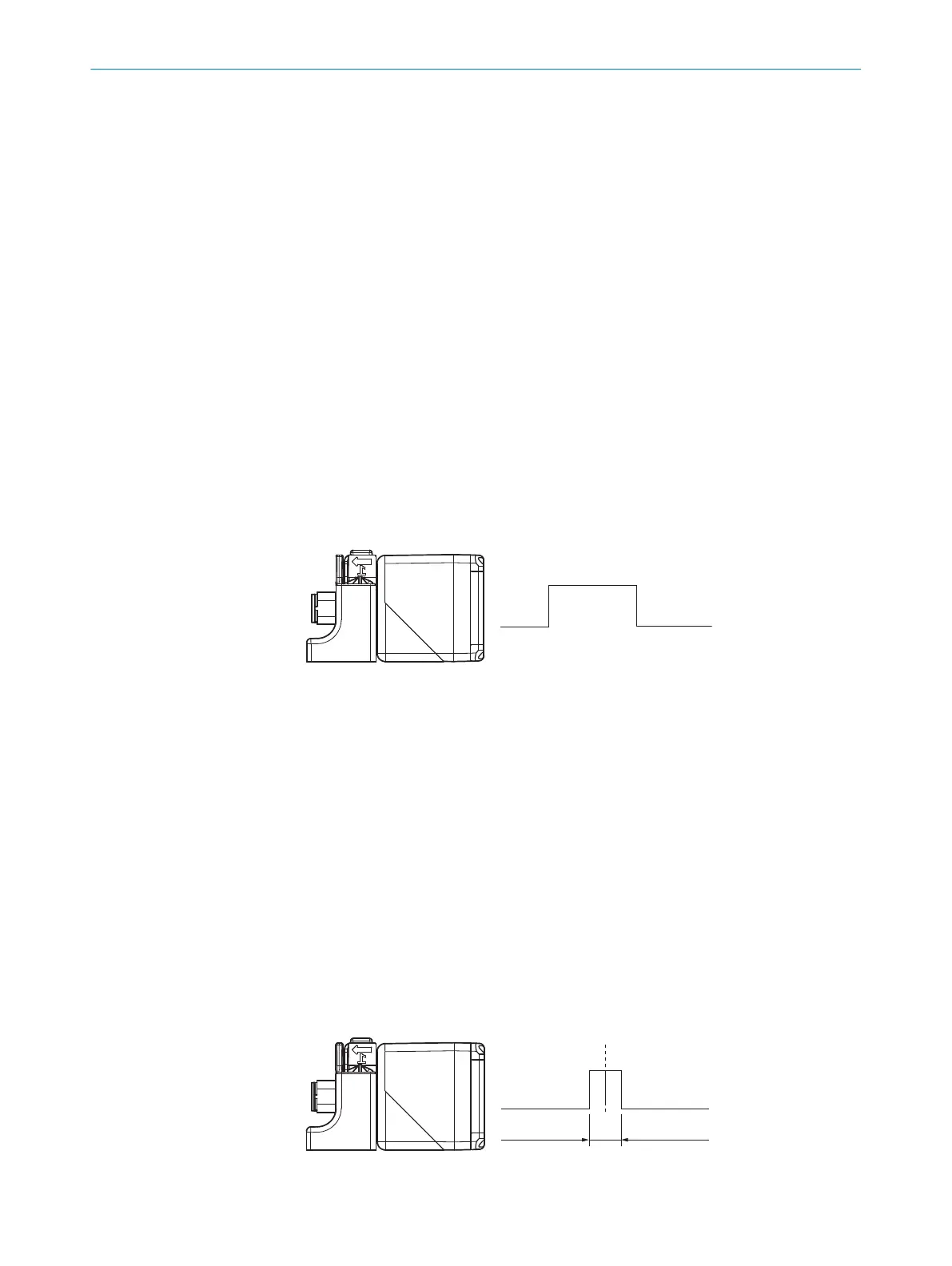

7.4.2.3 Teaching in switching window (Window Mode)
Overview
When the object is located within the taught-in switching window, the digital output is
active.
Approach
21
1.
Position the object at 1.
2. Apply L+ at MF for 3seconds until both LED 1 and LED 2 are flashing simultane‐
ously.
✓
LED 1 and LED 2 flash alternately.
3.
Position the object at 2.
✓
LED 1 and LED 2 flash alternately.
4. Apply L+ at MF for 1second.
✓
The switching points are taught in. The device automatically switches to normal
operation mode.
7.4.2.4 Teaching in background (Window Mode ±8%)
Overview
When the object is located either below the taught-in reflector -10mm (IO-Link: -8%) or
above the taught-in reflector +10mm (IO-Link: +8%), the digital output is active.
Approach
1
– 10 mm
+ 10 mm
1.
Position the background at 1.
7 OPERATION
28
O P E R A T I N G I N S T R U C T I O N S | UC40 8027772//2022-08-11 | SICK
Subject to change without notice
