SICK WLL190T-2 User Manual

WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 1 7

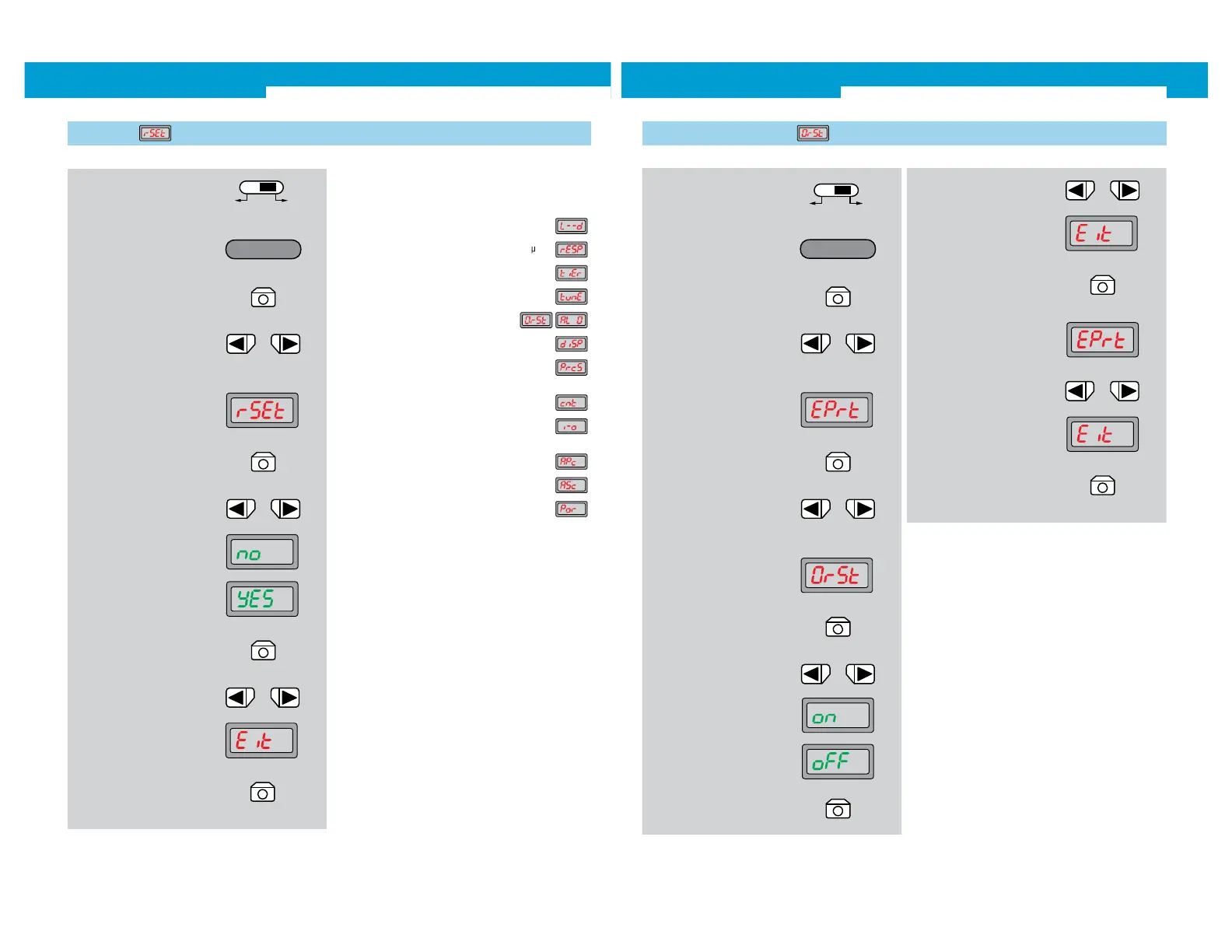

2.6 Reset
1. Selector switch to RUN
All operating modes are reset to the factory setting
as-delivered ex works.
Factory settings:
Switching mode: ON light-switching
Response time: Standard = 250 s
Time stage: Off
Sensitivity correction: Off
Set display value to zero: Off
Display: numeric display
Detection mode: Standard =
normal detection
Counter: Off
Input/output setting: Q
1
+ Q
2
:
Switching output
APC setting: On
ASC setting: Off
power of the sender LED: Standard =
highest power
2. Operating mode Configuring
active
4. In the basic menu, select
required mode by pressing
the arrow keys
5. Reset is shown on the display
6. Press Mode key
7. Select between no and YES
by pressing the arrow keys
8. Finish selection with Mode key
 

9. Select ending the adjustment
(Exit)
10. Finish selection with Mode key
3. Press Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
18 SENS ICK
2007-08-24
1. Selector switch to RUN
The current reception value is set to zero.
Adjusted switching threshold values are adapted.
on: Function active
oFF: Function deactivated (factory setting)
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
 

10. Select between on and oFF
by pressing the arrow keys
3.1 Set display value to zero
6. Press Mode key
11. Finish selection with Mode key
12. Close Expert mode with arrow
key
9. Press Mode key
7. In Expert mode, select Set To
Zero by pressing the arrow
keys
8. Set To Zero is shown on the
display
3. Press Mode key
13. Finish selection with Mode key
14. Expert mode is shown on the
display
15. Select ending the adjustment
(Exit)
16. Finish selection with Mode key
