SICK WLL190T-2 User Manual

WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 2 5

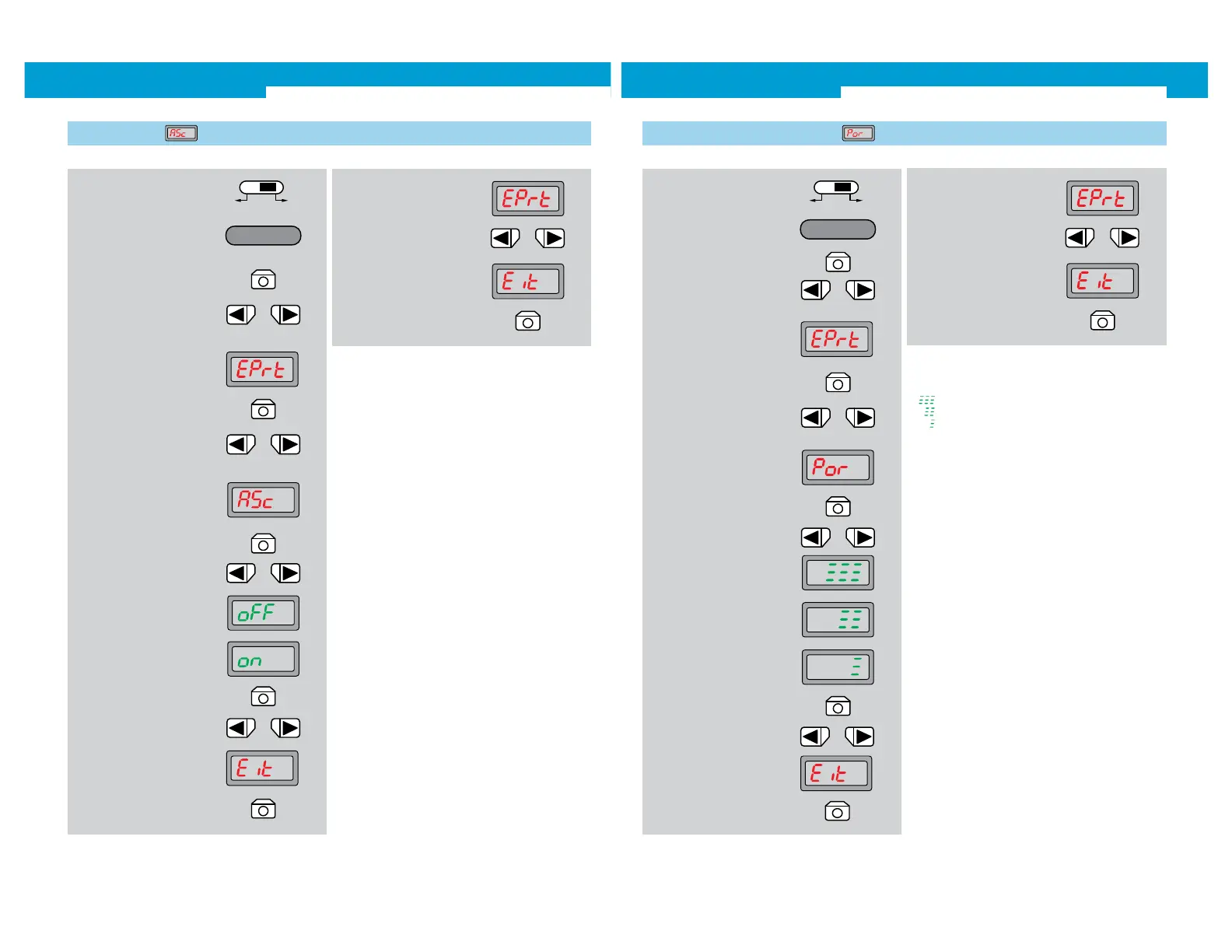

1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select ASC
setting by pressing the arrow
keys
8. ASC setting is shown on the
display
11. Finish selection with Mode key
 

on: automatically adapting switching threshold to environment,
oFF: switch off ASC (factory setting).
Only for Teach-in of transparent objects:
The ASC function (Automatic Sensitivity Control) automatically
corrects the switching threshold when detecting small differences
in the light received from the reflector.
10. Select between on and
oFF by pressing the arrow
keys
3.8 ASC setting
12. Close Expert mode with arrow
key
9. Press Mode key
3. Press Mode key
13. Finish selection with Mode key
14. Expert mode is shown on the
display
15. Select ending the adjustment
(Exit)
16. Finish selection with Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
26 SENS ICK
2007-08-24
1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select
strength setting by pressing
the arrow keys
8. Illumination setting is shown
on the display
11. Finish selection with Mode key
 

Adjustment of the luminosity of the sender LED:
Full luminosity (factory setting),
medium strength,
low strength.
The power of the sender LED can be set in three stages: satura-
tion, e. g. for highly reflective objects, is prevented, and the life of
the sender LED is extended.
10. Select between standard
setting, medium strength
setting and low strength
setting by pressing the
arrow keys
3.9 Strength settin g of the sender LED
12. Close Expert mode with arrow
key
9. Press Mode key
3. Press Mode key
13. Finish selection with Mode key
Typical applications: highly reflective objects, or very short
distance to the object.
14. Expert mode is shown on the
display
15. Select ending the adjustment
(Exit)
16. Finish selection with Mode key
