WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 2 9

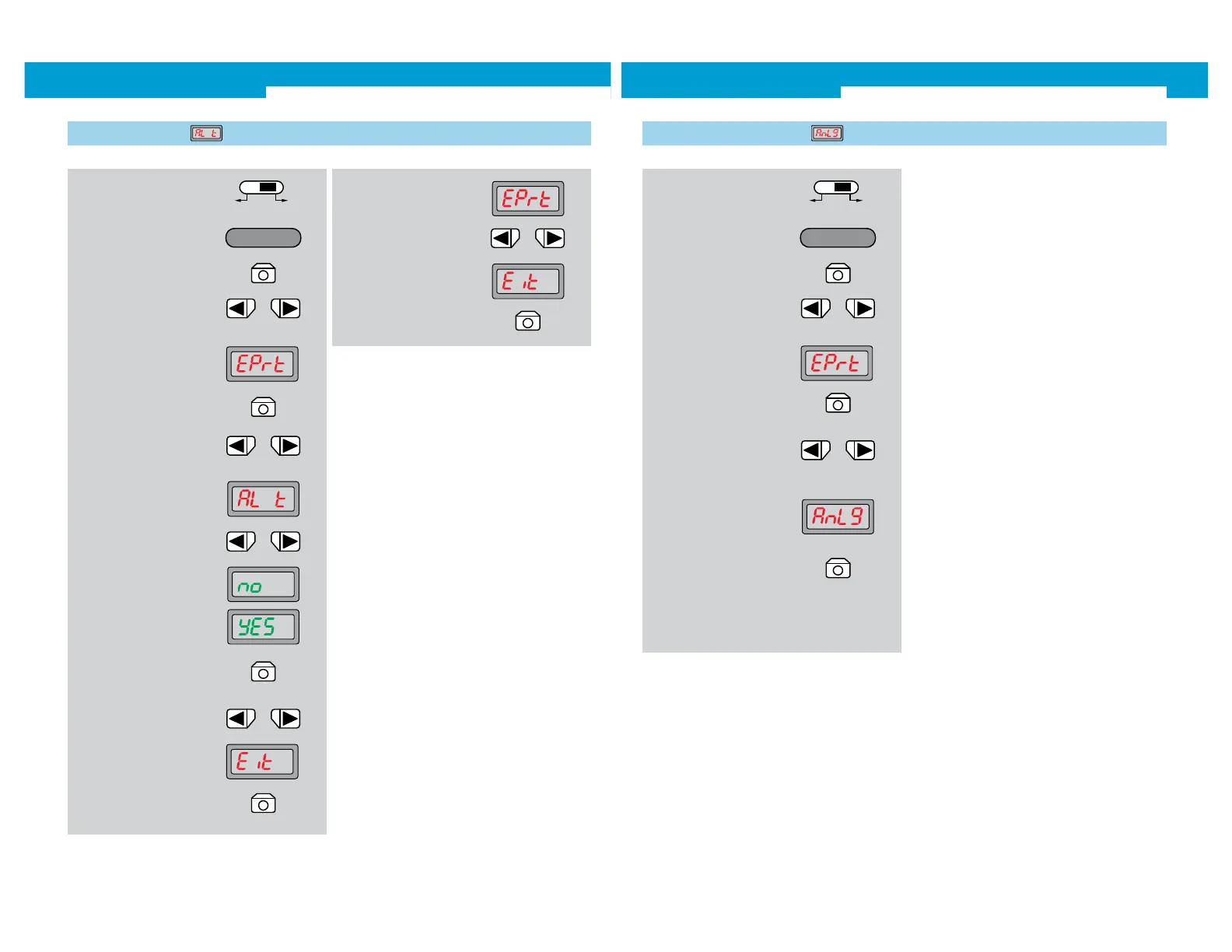

1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys.
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select Master
teach-in by pressing the arrow
keys
8. Master teach-in setting is
shown on the display
10. Finish selection with Mode key
9. Select between no and
YES by pressing the arrow
keys
3.12 Master Teach-in
Teaching of all connected extension units (only available in bus
mode):
no: Does not perform teach-in,
YES: Performs 1-point teach-in for all connected extension units
(see page 7).
Note:
Locked (Loc) extension units are not taught.
3. Press Mode key
11. Close Expert mode with arrow
key
12. Finish selection with Mode key
13. Expert mode is shown on the
display
14. Select ending the adjustment
(Exit)
15. Finish selection with Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
30 SENS ICK
1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select
Analogue menu by pressing
the arrow keys
8. Analogue menu is shown on
the display
9. Finish selection with Mode key
3.13 Selection, analogue menu
Selection of the setting options for the analogue output.
3. Press Mode key
Description of Analogue menu from page 31
To Next Page
