WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 1 3
Response time switching frequency range
FASt: 60 s 8,3 kHz reduced
Stnd: 250 s 2 kHz standard (factory setting)
LonG: 2 ms 250 Hz high

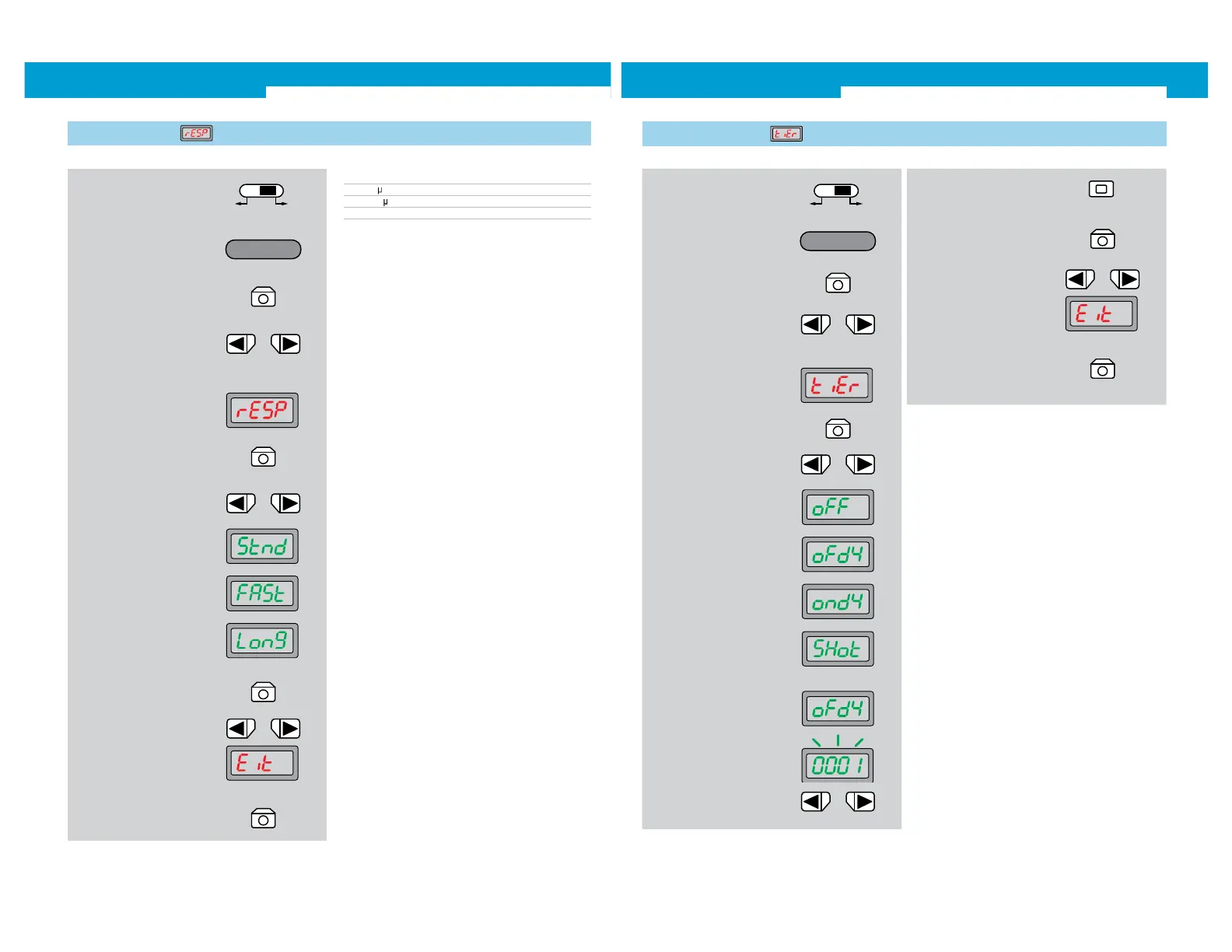

2.2 Response time
1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
required mode by pressing
the arrow keys
5. Response time is shown on the
display
6. Press Mode key, setting option
flashes
8. Finish selection with Mode key
7. Select between high-precision
setting (long), standard set-
ting (Stnd) and fastest setting
(FASt) by pressing the arrow
keys
3. Press Mode key
9. Select ending the adjustment
(Exit)
10. Finish selection with Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
14 SENS ICK
1. Selector switch to RUN
Option for various time delays and variable time range:
oFF = no time delay activated (factory setting),
oFdY = OFF delay (release delay),
ondY = ON delay (on-delay),
SHot = One-Shot (output active for set time window).
Time delay selectable from 1 ... 9999 (1 ms ... 9 s)
2. Operating mode Configuring
active
4. In the basic menu, select
required mode by pressing
the arrow keys
5. Time stage setting is shown
on the display
6. Press Mode key, setting option
flashes
7. Select between deactivation
(oFF), OFF delay (oFdY), ON de-
lay (ondY) and One-Shot (SHot)
by pressing the arrow keys
2.3 Time delay setting
10. Finish selection with Mode key
3. Press Mode key
11. Select ending the adjustment
(Exit)
12. Finish selection with Mode key
8. For activated time stage,
setting the time value
9. Changing the tens digit
