WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 2 7

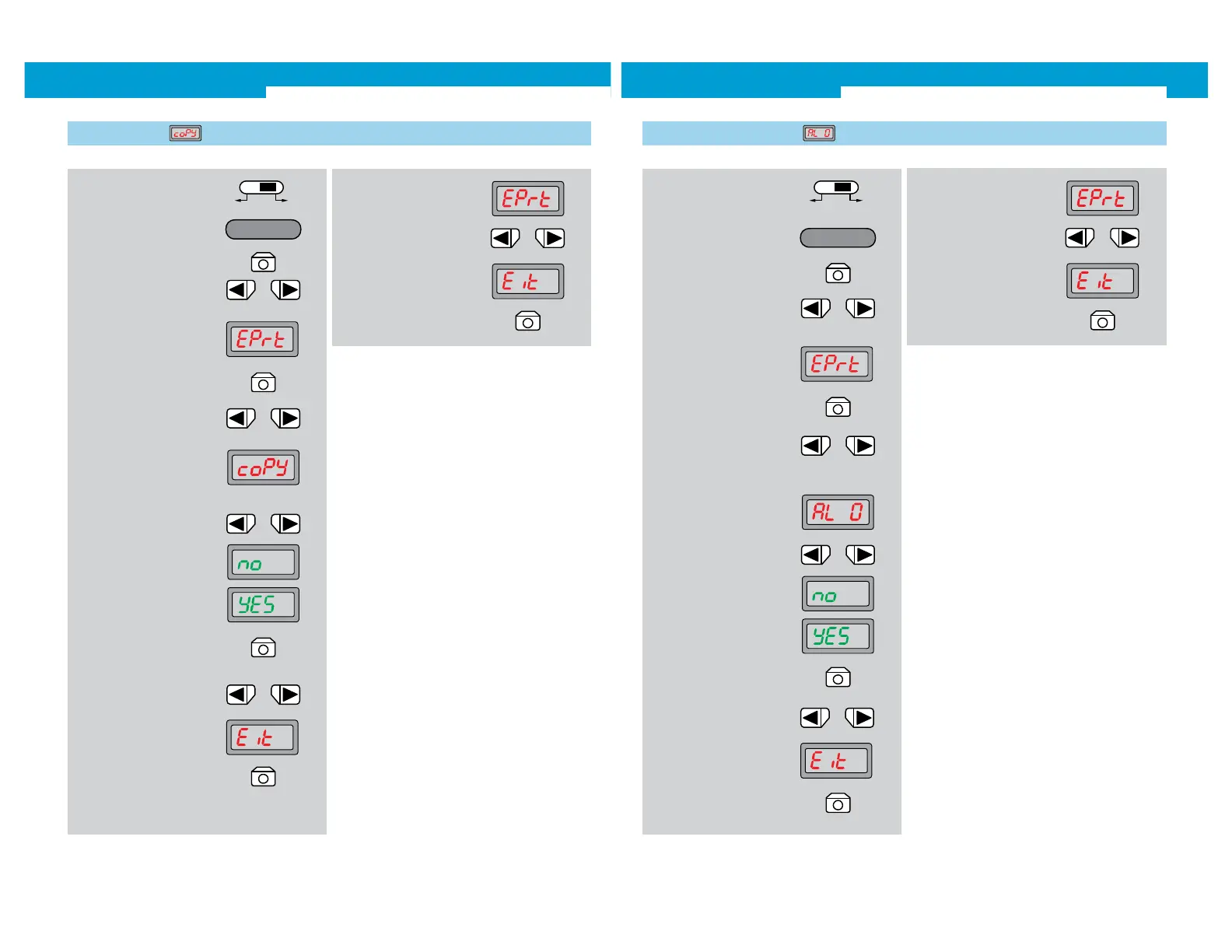

1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select Copy
mode by pressing the arrow
keys
8. Copy mode setting is shown
on the display
10. Finish selection with Mode key
The copy function is only available in bus mode:
no: No copy function,
yes: Copy function, all settings of the base unit are transmitted
to the connected extension units.
Note:
In locked extension units (Loc), no data of the base unit is
transmitted.
9. Select between no and
YES by pressing the arrow
keys
3.10 Copy mode
11. Close Expert mode with arrow
key
3. Press Mode key
12. Finish selection with Mode key
13. Expert mode is shown on the
display
14. Select ending the adjustment
(Exit)
15. Finish selection with Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
28 SENS ICK
1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select setting
the display value to zero by
pressing the arrow keys
8. Set To Zero is shown on the
display
10. Finish selection with Mode key
9. Select between no and
YES by pressing the arrow
keys
3.11 Set display value to zero
Setting values of the main display of the connected extension
units to zero (only available in bus mode):
no: Performs no zero value setting,
YES: performs zero value setting.
Note:
The main display of locked (Loc) extension units is not set to 0.
3. Press Mode key
11. Close Expert mode with arrow
key
12. Finish selection with Mode key
13. Expert mode is shown on the
display
14. Select ending the adjustment
(Exit)
15. Finish selection with Mode key
