WLL190T-2 Photoelectric switches for fibre-optic cables
2007-08-24 SENSICK 2 3

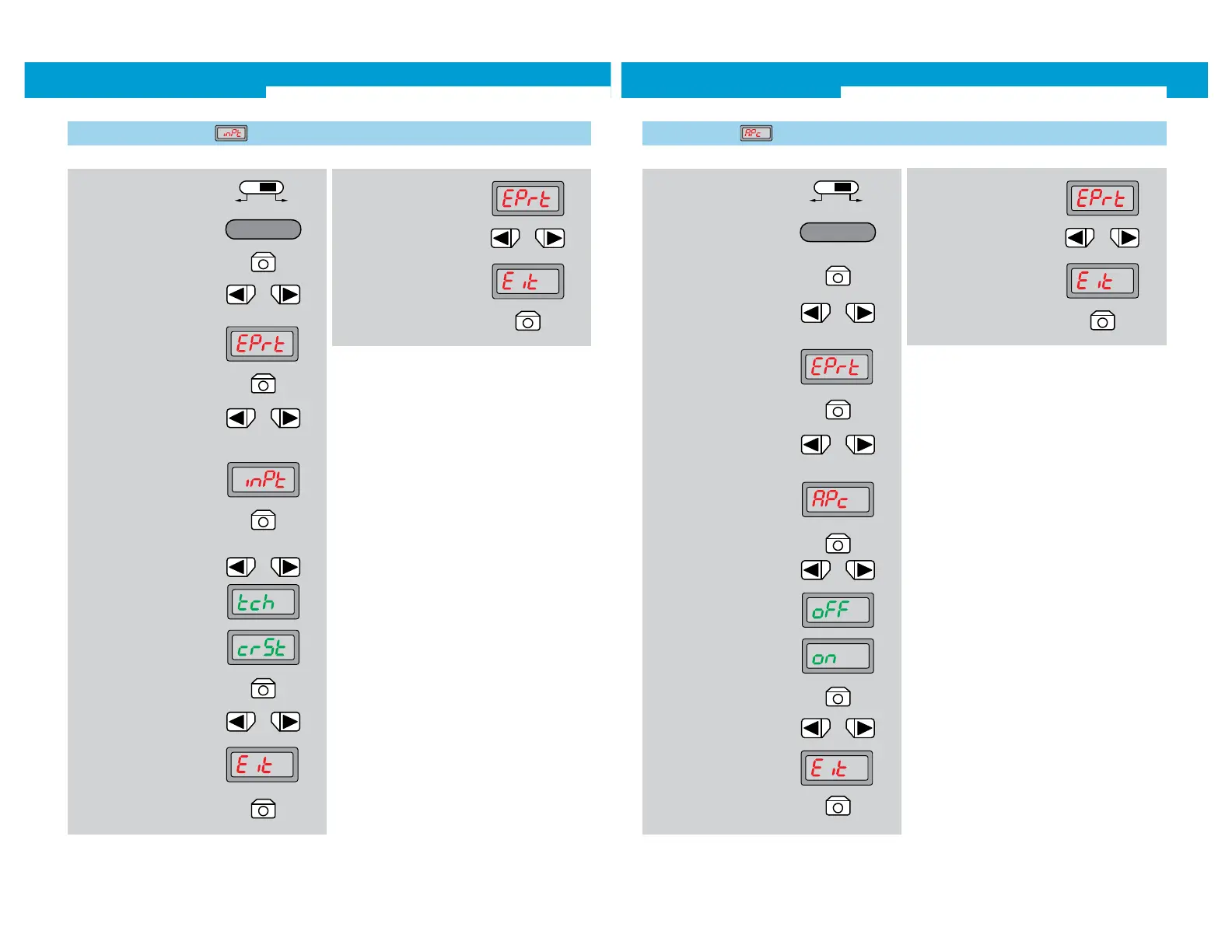

1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select exter-
nal input function by pressing
the arrow keys
8. External input function is
shown on the display
11. Finish selection with Mode key
Setting is only available if n--� was selected under input/output
setting (3.5 �-o) (not available for analogue devices).
tch: External input is external Teach-in,
crSt: External input resets the counter.
10. Select between external
Teach-in (tch) and counter
reset (crSt) by pressing the
arrow keys
3.6 External input function
12. Close Expert mode with arrow
key
3. Press Mode key
9. Press Mode key
13. Finish selection with Mode key
14. Expert mode is shown on the
display
15. Select ending the adjustment
(Exit)
16. Finish selection with Mode key
WLL190T-2 Photoelectric switches for fibre-optic cables
24 SENS ICK
1. Selector switch to RUN
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select APC
setting by pressing the arrow
keys
8. APC setting is shown on the
display
11. Finish selection with Mode key
Compensates the natural attenuation of the sender LED. This
achieves constant sender power for long, maintenance-free
operation.
on: Switch on APC (Automatic Power Control) (factory setting),
oFF: Switch off APC.
10. Select between on and
oFF by pressing the arrow
keys
3.7 APC setting
12. Select ending the adjustment
(Exit)
13. Finish selection with Mode key
3. Press Mode key
9. Press Mode key
14. Expert mode is shown on the
display
15. Select ending the adjustment
(Exit)
16. Finish selection with Mode key
