5.2 Type Plate

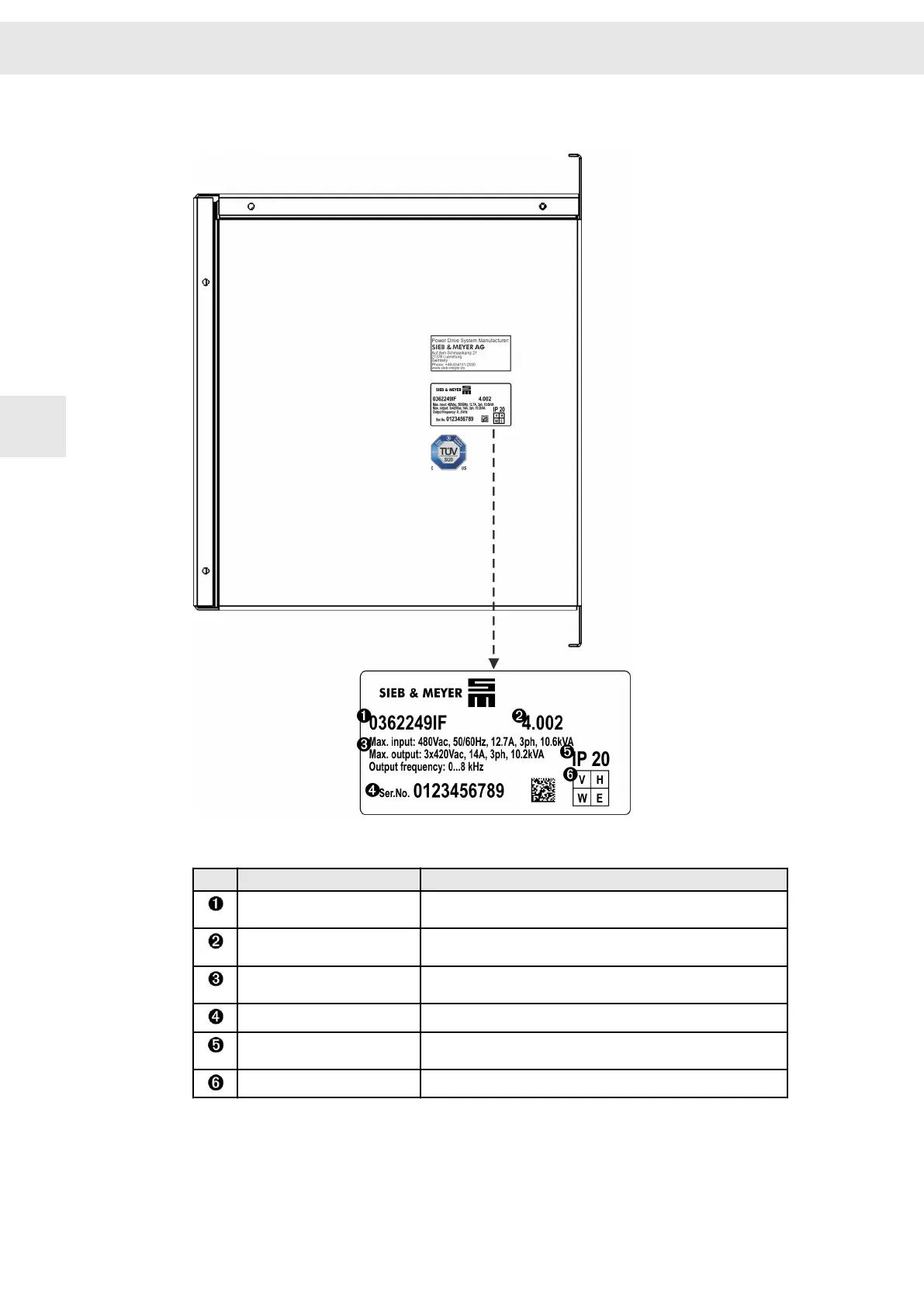

Fig. 2: Example of SD2S type plate
No.
Meaning Explanation
Device designation Composed of module type with indication of performance range
and max. DC link voltage
Device version Indicates the version of the hardware; if no version is existent,
0.000 is indicated here
Technical data Indicates the input and output power as well as the output
frequency
Serial number Indicates the individual number of the device
IP Code Indicates the level of protection of the device against touching or
intrusion of solid objects (1st digit) and water ingress (2nd digit)
QA label
Drive Amplifier SD2S
