6 Device Description
Features:
▶ integrated power supply unit, 3-phase power supply (In order to comply with the
EMC Directive 2014/30/EU an external line filter is necessary.)
▶ safety circuit
▶ designed for high outputs
▶ 0362X
49xy: standard design with interfaces for measuring systems
─ 0362149xy = without fieldbus interface
─ 0362249xy = with EtherCAT interface
▶ 0362129xy: Light design without interfaces for measuring systems

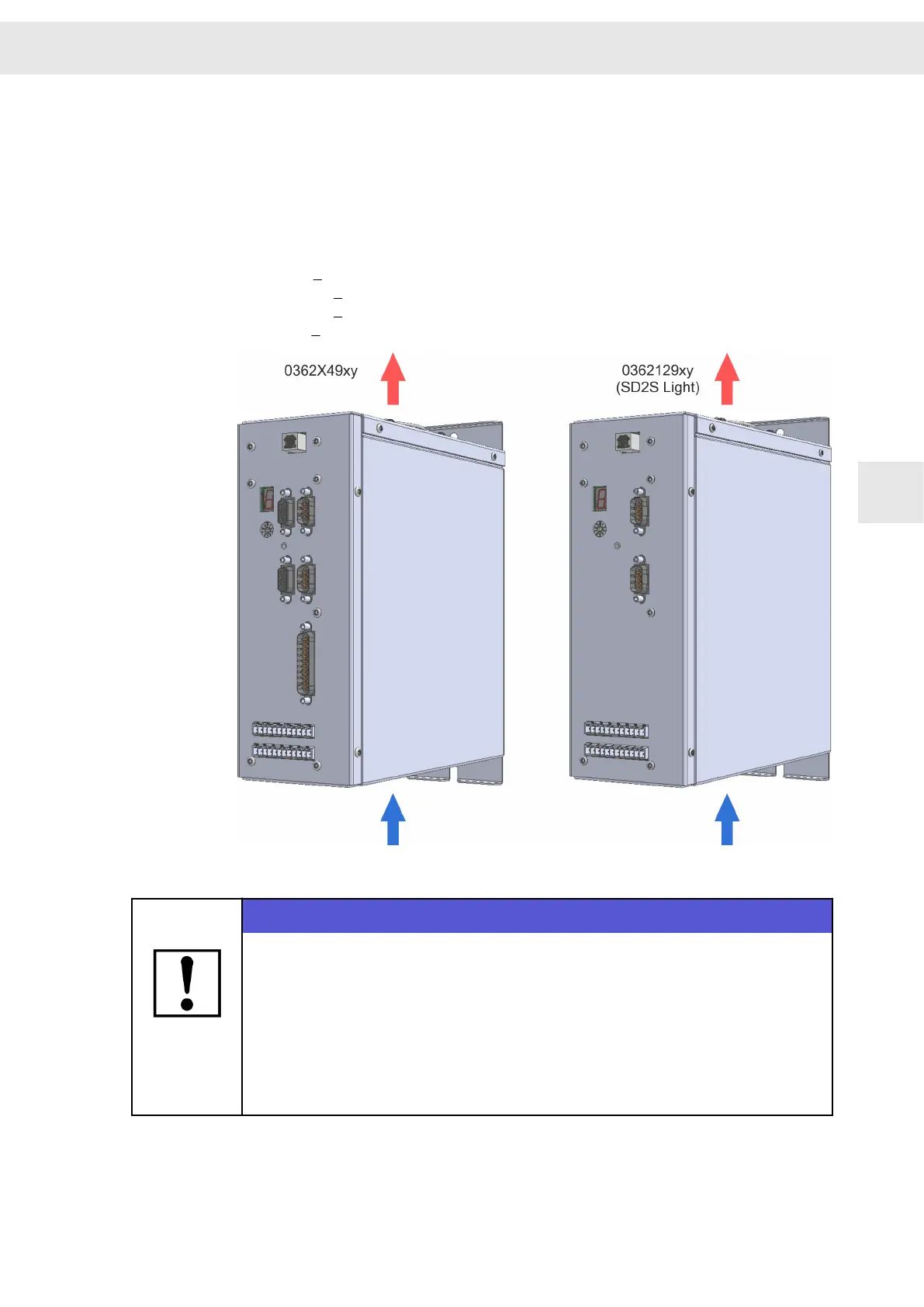

Fig. 3: Device view 0362X49xy / 0362129xy
NOTICE
Restriction of cooling air flow
If the air flow cooling the device is obstructed, the device could overheat and
possibly become damaged.
When installing the device, pay attention to the direction of air flow through the
internally installed fan [arrows].
For sufficient cooling the ventilation inlets and outlets must be kept free by a space
of min. 10 cm.
