7.8.2 Digital Inputs – VF
If more than 8 parameter sets are used, not all functions can be assigned freely
anymore. If more than 32 parameter sets are used, the measuring system NAMUR can
not be used anymore.
12-pole Mini-Combicon connector, suitable for mating connector MC 1,5/ 12-ST-3,81
(Phoenix)
Mating connector
X16

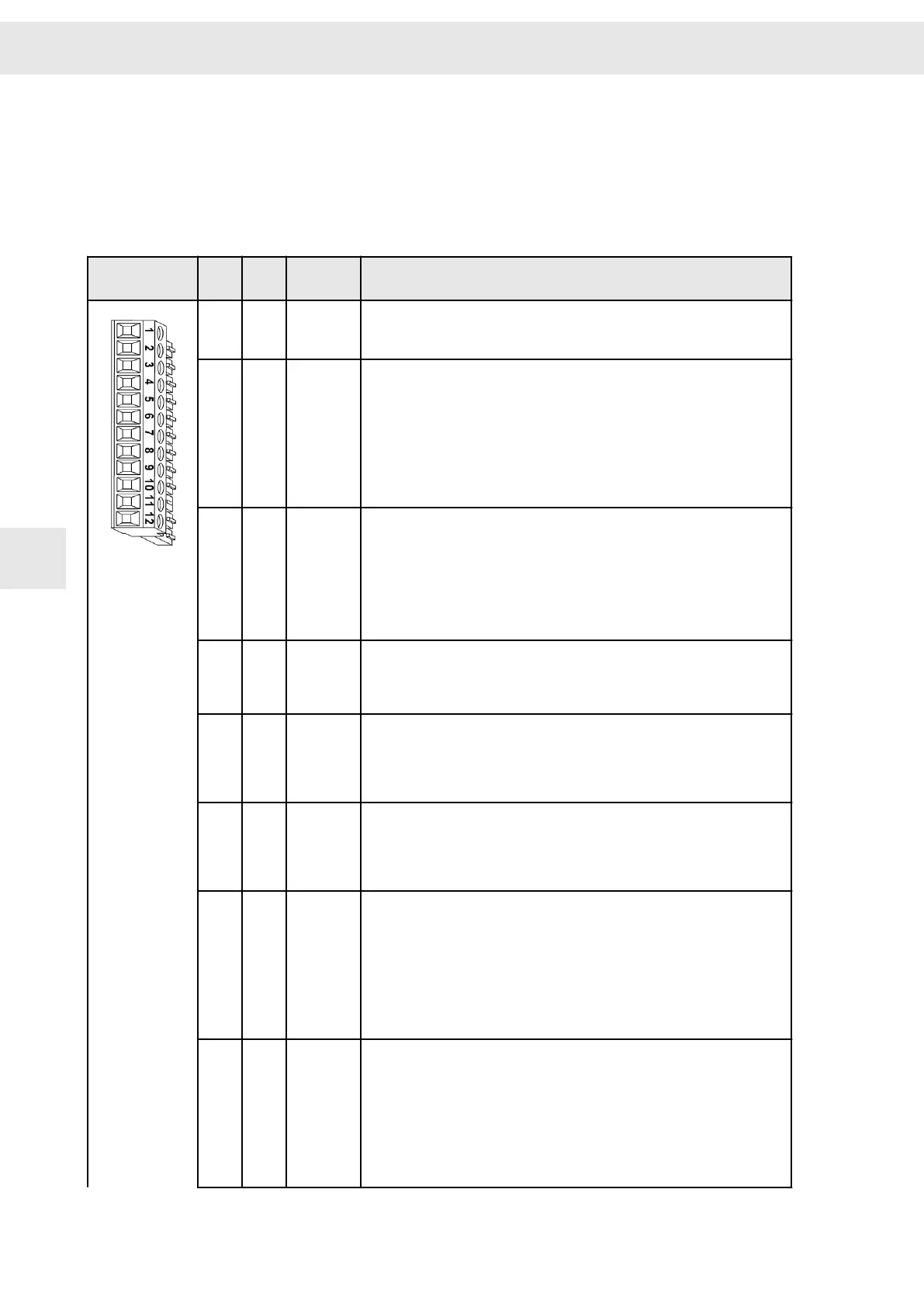

Pin I/O Name Configurable functions
1 E IN0 ▶ No function
▶ Switch on type 1 (without edge evaluation)
▶ Switch on type 2 (with positive edge)
2
E IN1 ▶ No function
▶ Quick stop type 5 (with slow down ramp and controller off)
▶ Quick stop type 6 (with quick stop ramp and controller off)
▶ Quick stop type 7 (with slow down ramp and reset)
▶ Quick stop type 8 (with quick stop ramp and reset)
▶ Enable operation
▶ Operation enabled with error reset
▶ MOP up
▶ MOP down
3 E
IN2
(1)
▶ No function
▶ Enable operation
▶ Operation enabled with error reset
▶ Error reset
▶ External hardware OK
▶ Speed direction
▶ MOP up
▶ MOP down
4 E
IN3
(1)
▶ No function
▶ Parameter set Bit 0
▶ MOP up
▶ MOP down
5 E
IN4
(1)
▶ No function
▶ Parameter set Bit 1
▶ Internal target value Bit 3
▶ MOP up
▶ MOP down
6 E IN5 ▶ No function
▶ Parameter set Bit 2
▶ Internal target value Bit 2
▶ MOP up
▶ MOP down
7 E IN6 ▶ No function
▶ Error reset
▶ External hardware OK
▶ Speed direction
▶ Teach no-load current
▶ Parameter set Bit 3
▶ Internal target value Bit 1
▶ MOP up
▶ MOP down
8 E IN7 ▶ No function
▶ Error reset
▶ External hardware OK
▶ Speed direction
▶ Teach no-load current
▶ Parameter set Bit 4
▶ Internal target value Bit 0
▶ MOP up
▶ MOP down
Connector Pin Assignment
W
44 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
7
