SIEB & MEYER SD2S 0362249xy - Wiring with OSSD; Wiring Without OSSD; X15 - Digital Outputs; NAMUR Sensor; PULSE in; Digital Field Plate; GMR; Digital Outputs

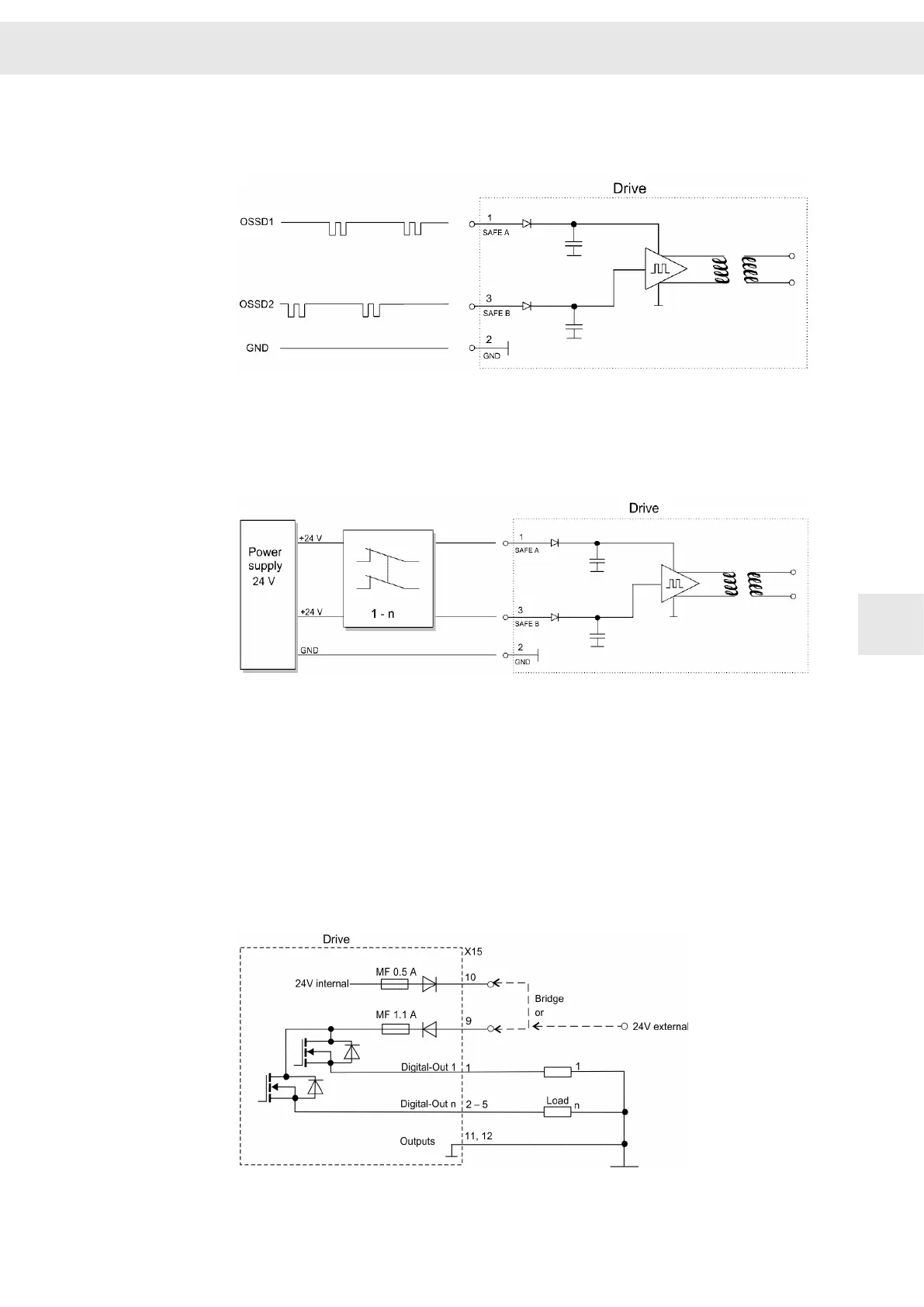

8.3.1 Wiring with OSSD
OSSD = Output Signal Switching Device
8.3.2 Wiring without OSSD
OSSD = Output Signal Switching Device
8.4 X15 – Digital Outputs / NAMUR Sensor /
PULSE IN / Digital Field Plate / GMR
8.4.1 Digital Outputs
The meanings of the digital outputs can be defined by parameters. Every output can be
loaded with 100 mA.
W
Connection Examples
