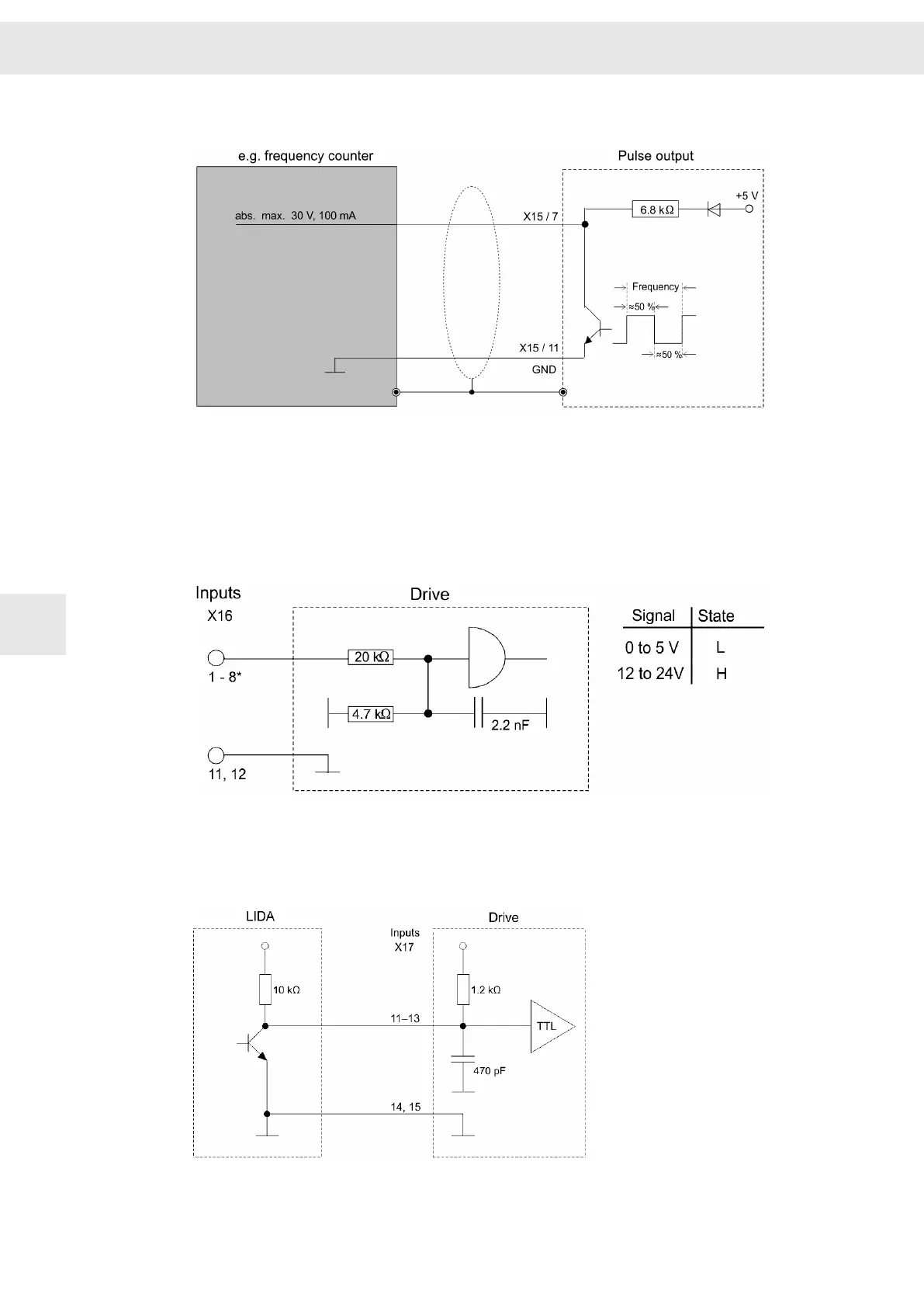

8.4.5 PULSE (Speed Pulses)

8.5 X16/17 – Digital Inputs

Digital inputs at X16

The meanings of the digital inputs can be defined by parameters.

[*] Yet another digital input is located at the connector X15, pin 6.

Digital inputs (5 V) at X17

The following figure is a wiring example for a 5 V limit switch:

Connection Examples

60 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
