6.1 Dimensions

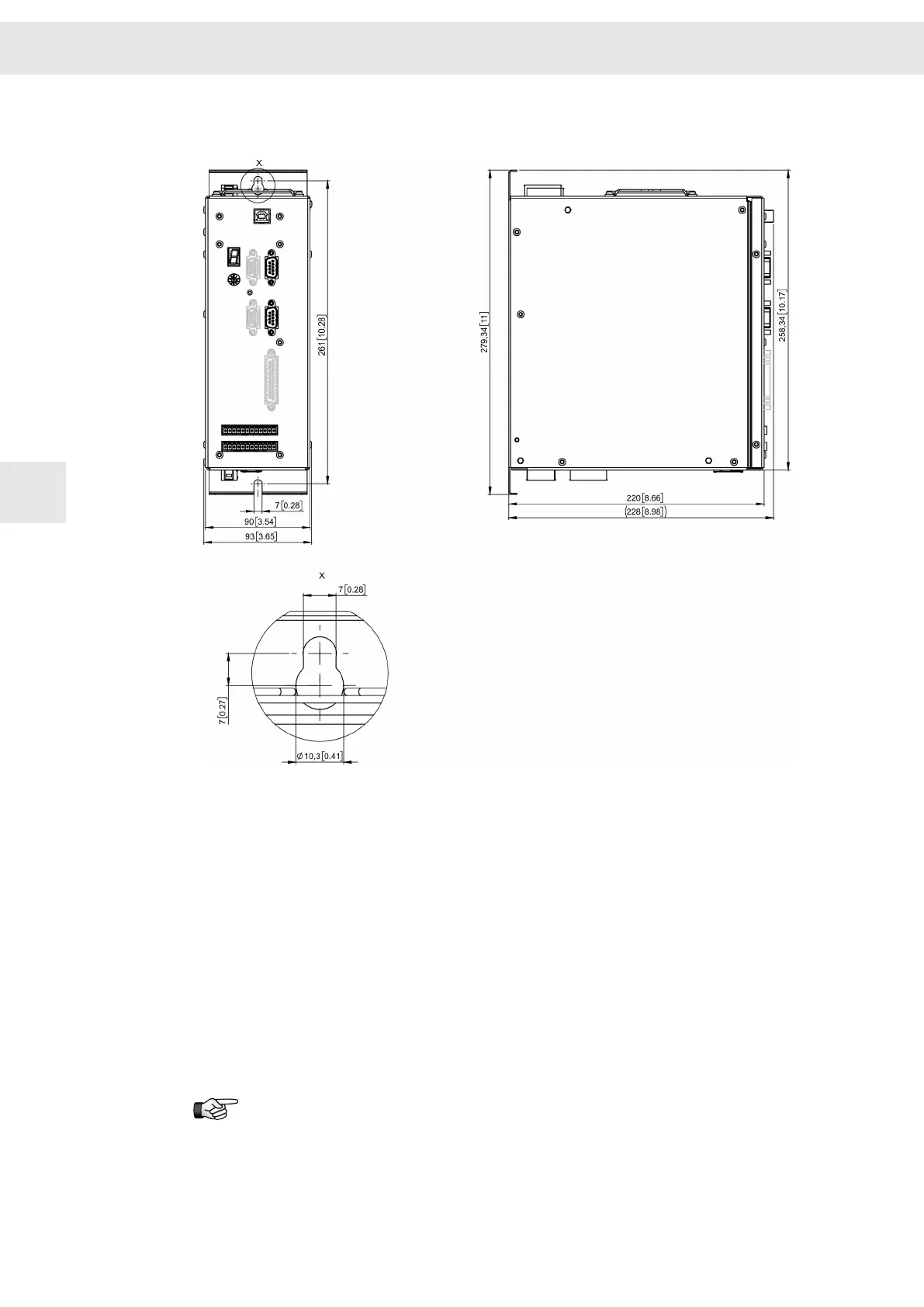

Fig. 4: Dimensions 0362X49xy / 0362129xy in mm [inch]
The gray-colored connectors are only available on device variant 0362X49xy.
6.2 Wall Mounting
The device is designed for vertical wall mounting. Other setup positions are possible
but you must consult SIEB & MEYER before.
Suitable fastening screws: M6x12 according to ISO 4762 (DIN 912)
▶ strength class: 8.8
▶ shim washer: M6 according to ISO 7091 (use is recommended)
▶ minimum engagement depth in the mounting plate: 8 mm for steel plate, 15 mm
for aluminum plate
The rear panel of the device must fit flat against the mounting plate. If you
use locking threads, make sure that these do not protrude beyond the
mounting plate.
Device Description
W
32 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
