5.3 Device name
e.g. 3.000
Device type Device version

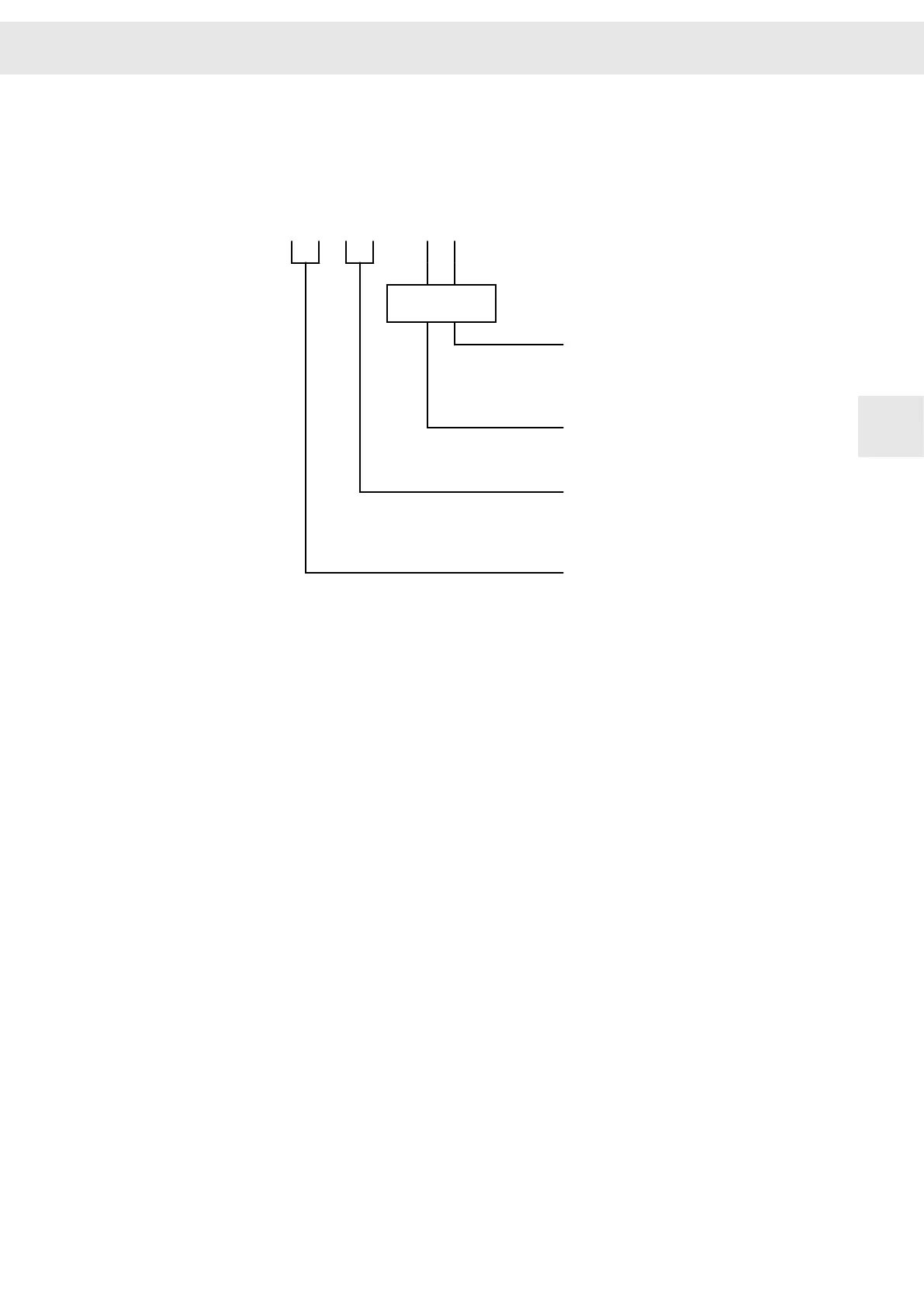

0 3 6 x x x x - x y
Performance
range
Voltage range
▶ C = up to 325 V
DC
▶ F = up to 675 V
DC
Current range
▶ see technical data
Specific type code
▶ 49 = drive amplifiers SD2S
▶
29 = drive amplifiers SD2S Light
(1)
Module type
▶ 21 = series SD2x
▶ 22 = series SD2x (EtherCAT option)
(1)
The Light variants do not provide several interfaces for measuring systems.
Device version X.XXX
Serial counter. If there is no device version, 0.000 is indicated here. If a device is
exchanged by a device of another version, please contact SIEB & MEYER to check
whether the devices are compatible or not.
In addition the device version indicates the update capability of the internal device soft‐
ware, e.g. BIOS, FPGA or Firmware.
W
Drive Amplifier SD2S
Drive System SD2S - Hardware Description 0362X49xy / 0362129xy 29
