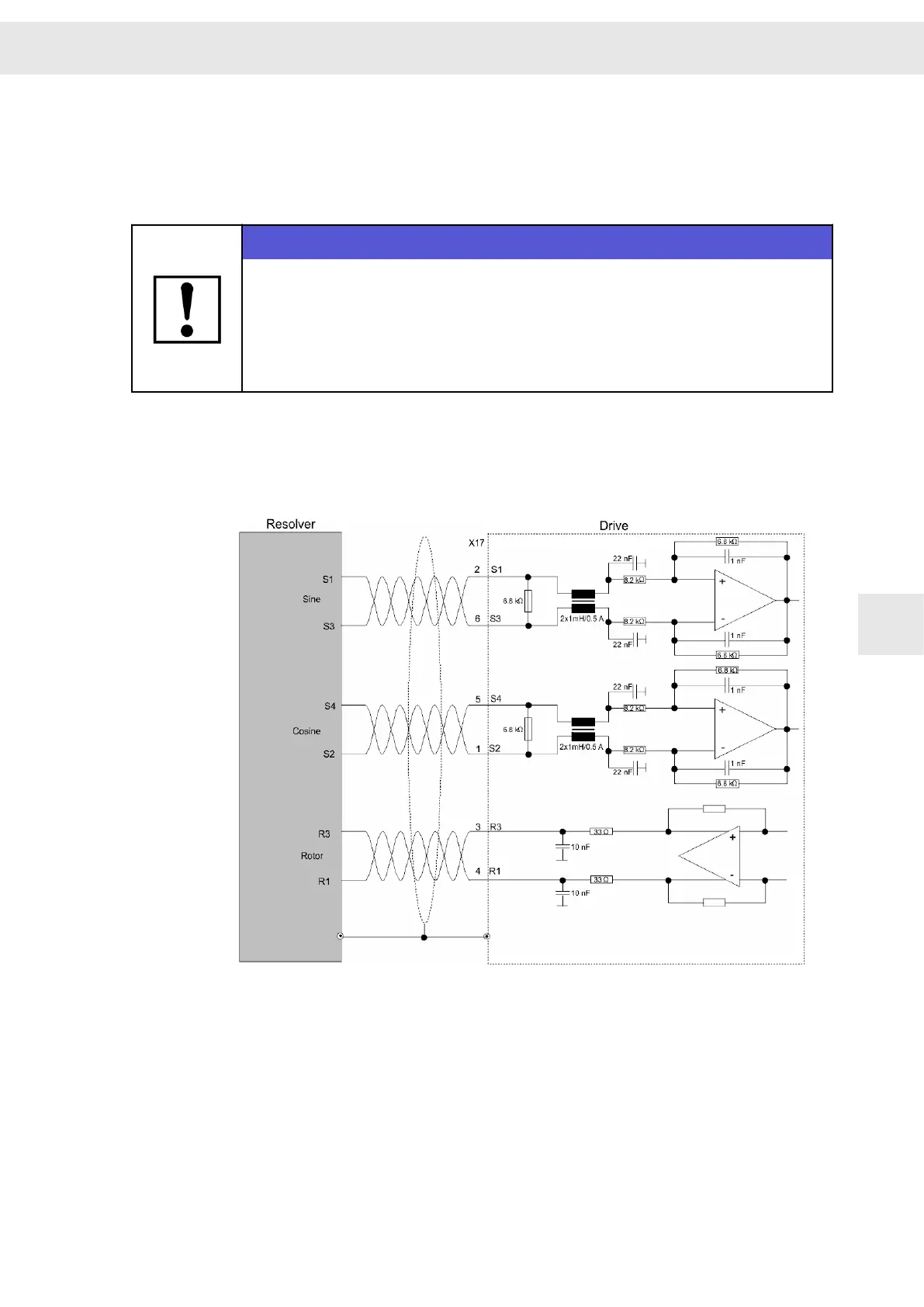

8.6 X17 – Motor Feedback
8.6.1 Resolver
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can
be damaged.
Check that you have chosen the right measuring system in the software before
connecting.
A shielded cable with 3 twisted pairs must be used. Twist mode: sine/sine, cosine/
cosine, rotor/rotor; designation of the cable, z. B. LIYCY 3 × 2 × 0.14.
If the thermal motor protection is evaluated, use a shielded cable with 4 twisted pairs of
wires.
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
W
Connection Examples
Drive System SD2S - Hardware Description 0362X49xy / 0362129xy 61
