The EtherCAT interface is only available with the following device variants:
0362249xy.

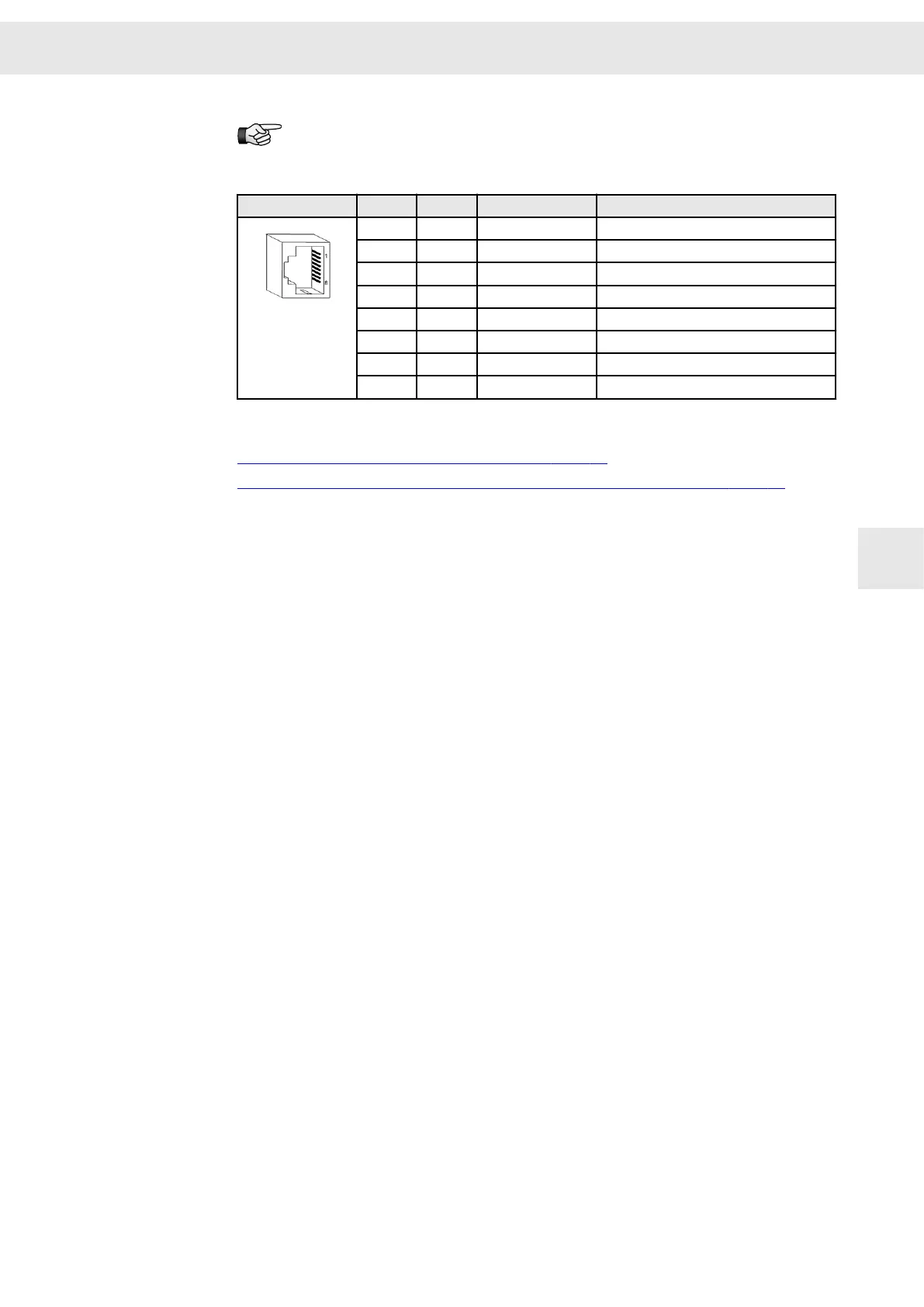

2 × 8-pole female RJ45 connector
X64/X65
Pin I/O Name Description
1 O TX+ Transmit data +
2 O TX− Transmit data −
3 I RX+ Receive data +
4 n.c.
5 n.c.
6 I RX− Receive data −
7 n.c.
8 n.c.
Related topics
Connection example: "X64/X65 – EtherCAT", page 78
Status of communication: "LED Status Display: EtherCAT Connection", page 81
W
Connector Pin Assignment
Drive System SD2S - Hardware Description 0362X49xy / 0362129xy 53
