Mounting Example with External Heat Sink
10.4
Mounting Holes for 70 mm Devices
Fig.
78
:
Dimensions
in
mm
(inch)

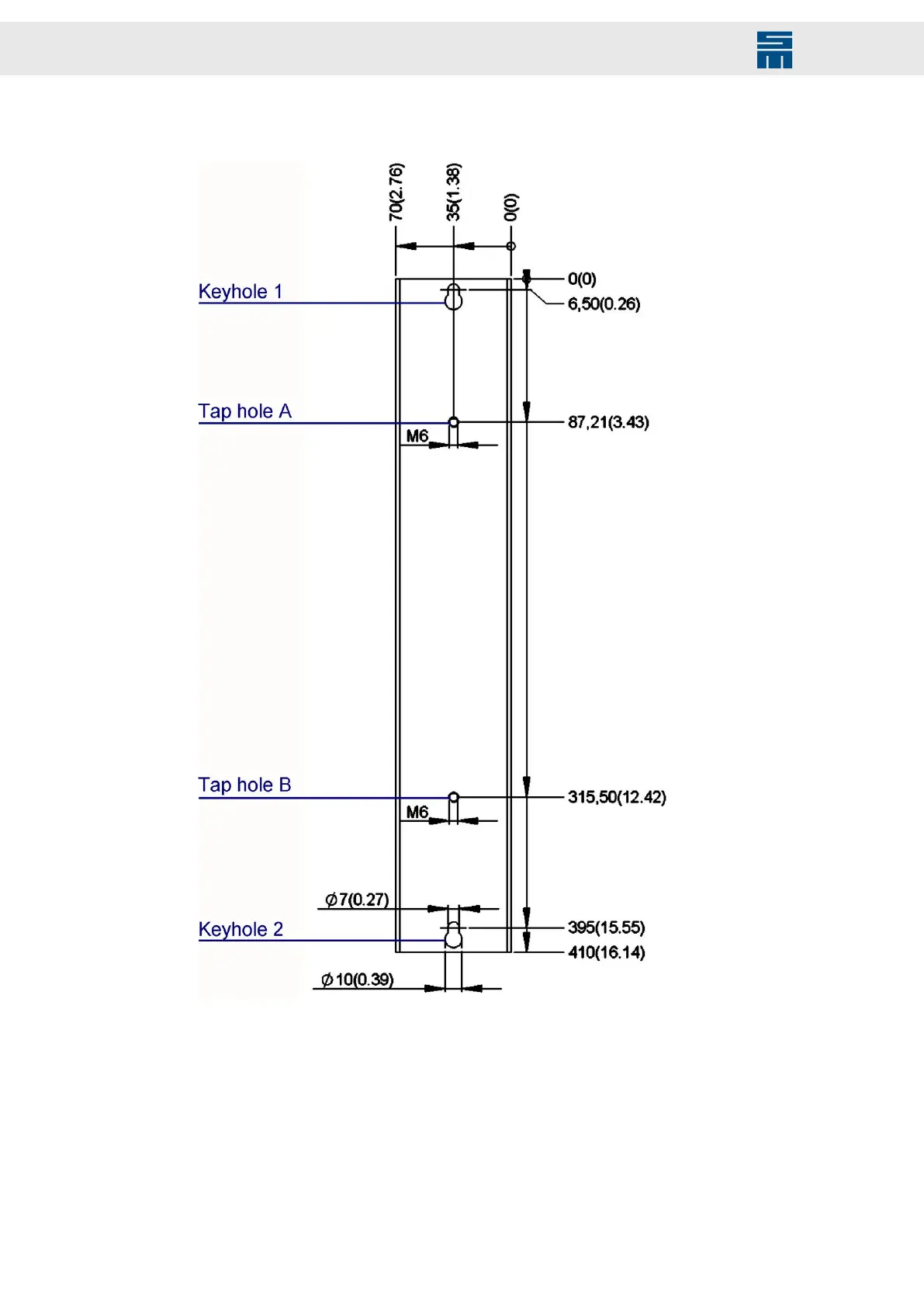

Fig. 78: Dimensions in mm (inch)
▸
A rear panel
heat sink with
liquid cooling
or an extruded
heat sink
is to be
fastened
at the keyholes 1 and 2.
▸
A high performance heat sink is to be fastened at the tap holes A and B.
102
Drive System SD2 - Hardware Description
101
103
