13.8 X10 – Safety Circuit (STO)

Note

See also chapter 19 “Safety circuit / restart lock (STO)”, page 176.

13.8.1 Wiring with OSSD

OSSD = output signal switching device

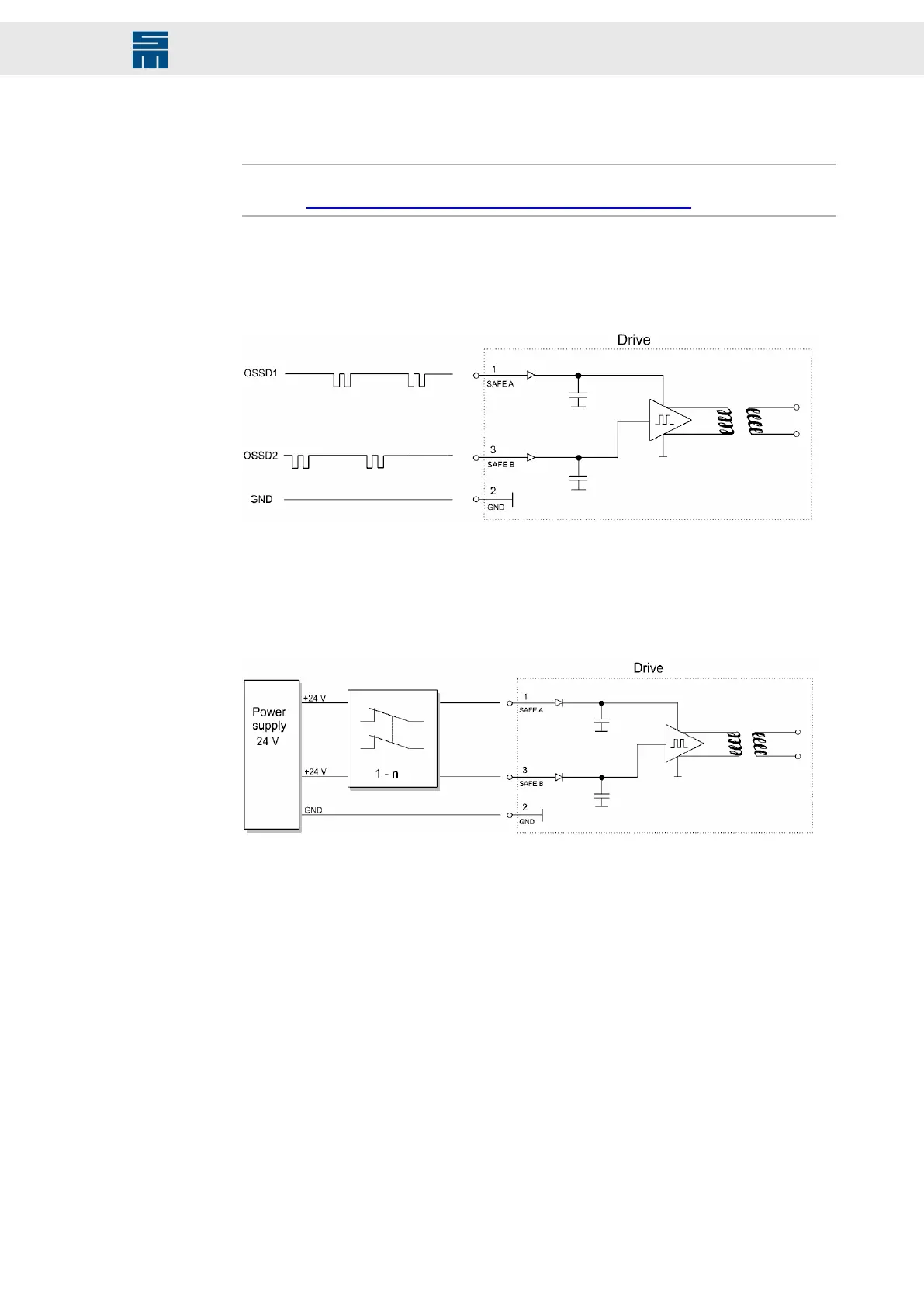

Fig. 87: Safety circuit (STO) - wiring with OSSD

13.8.2 Wiring without OSSD

OSSD = output signal switching device

Fig. 88: Safety circuit (STO) - wiring without OSSD

147Drive System SD2 - Hardware Description

Connection Examples
