9.4.1 Dimensions

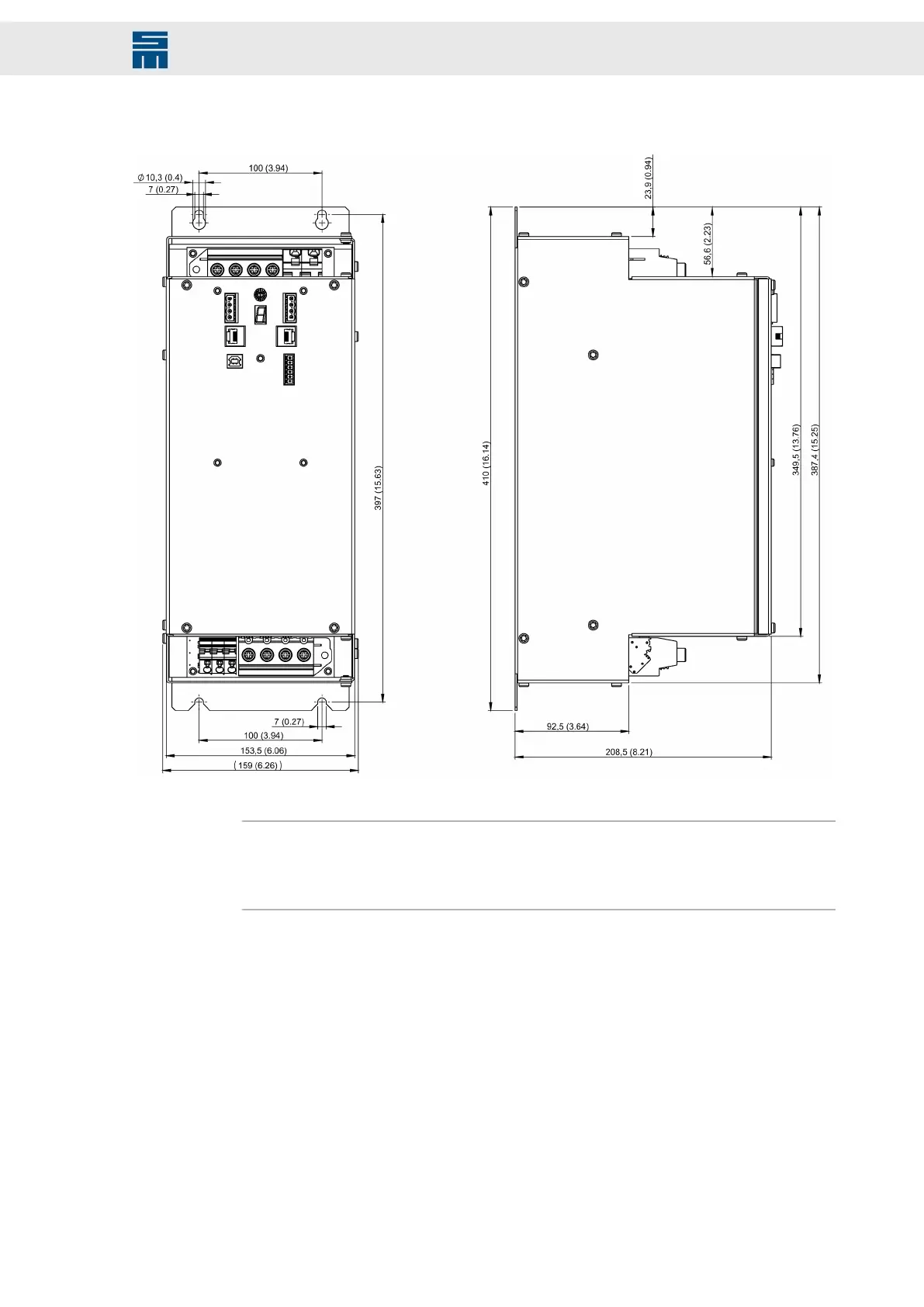

Fig. 72: Dimensions of 0362193 in mm (inch)
Fig. 72: Dimensions of 0362193 in mm (inch)
Note
For the installation consider that the heads of the cabinet screws located on the long
sides of each module overlap up to 2 mm. This causes a module gap of at least 4 mm
when several modules are combined in an assembly group.
95Drive System SD2 - Hardware Description
Power Supply Unit PS2
