13.6 X8 – Resolver
A shielded cable with 3 twisted pairs must be used. Twist mode: sine/sine, cosine/co-
sine, rotor/rotor; designation of the cable, e.g. LIYCY 3 × 2 × 0.14.
If the thermal motor protection is evaluated, use a shielded cable with 4 twisted pairs of
wires.

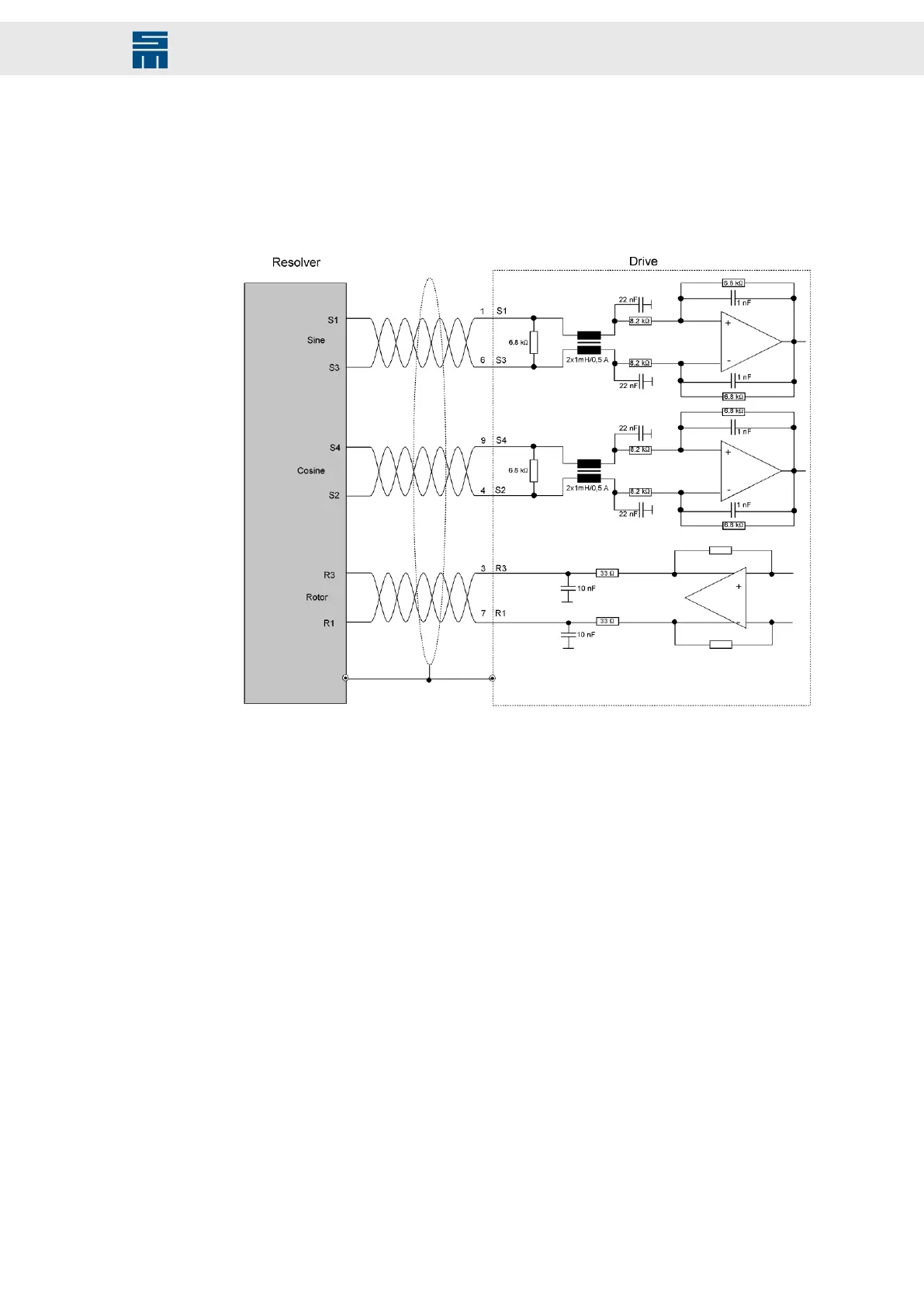

Fig. 86: Resolver
Fig. 86: Resolver
137Drive System SD2 - Hardware Description
