Connection Examples

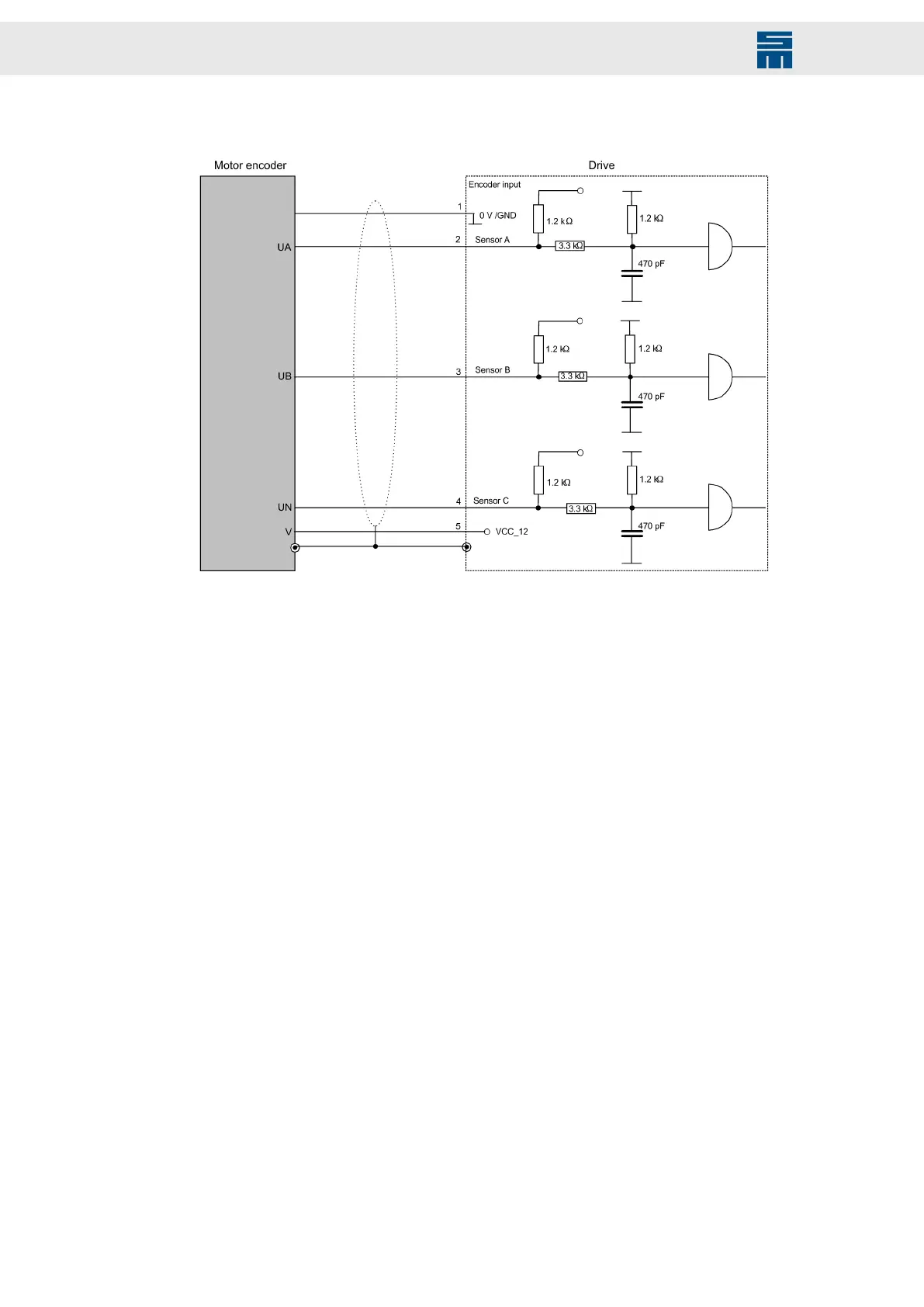

13.7.10 Incremental Encoder 12 V

Encoder failure monitoring is not possible with this measuring system.
