Connection Diagram

187Drive System SD2 - Hardware Description

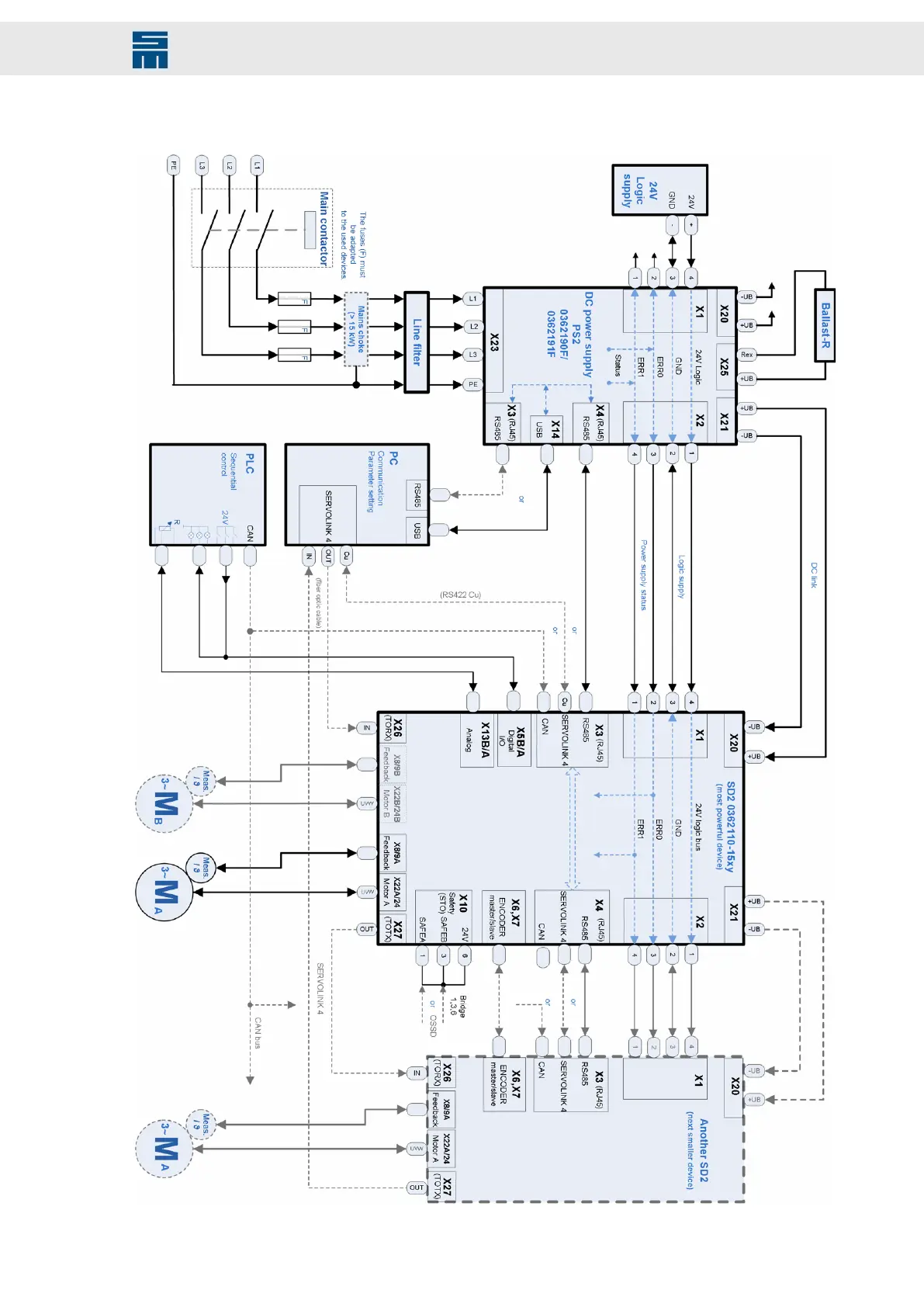

C.1 Wiring of PS2 (0362190F/0362191F) and SD2
