Connection Examples
13.5
X7 – Encoder Emulation
Fig.
85
:
Encoder
Emulation

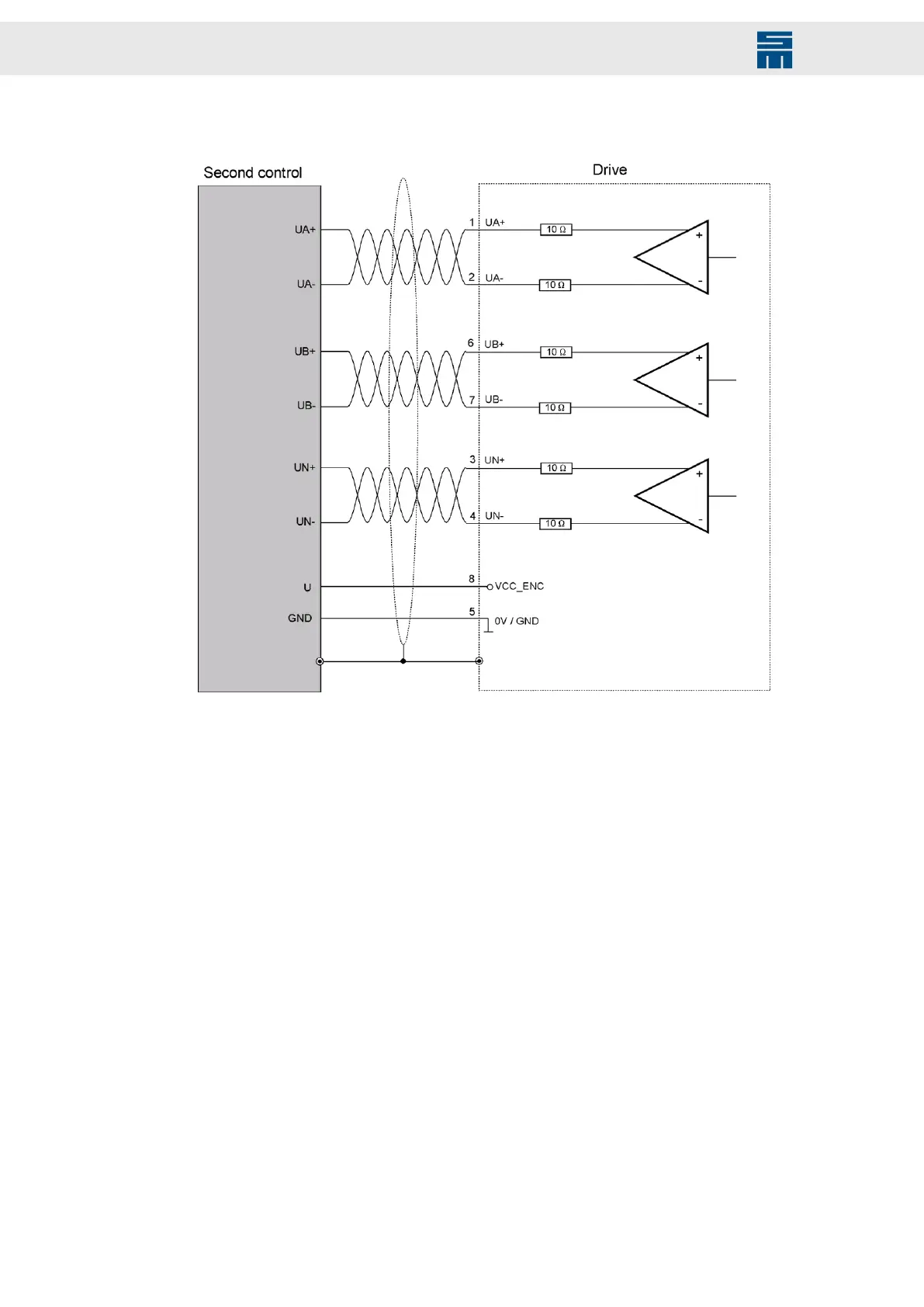

Fig. 85: Encoder Emulation
The transmission
meets the
requirements of
the standard TIA/EIA-422-B with
a voltage
differential of at least. ±0.9 V
.
136
Drive System SD2 - Hardware Description
135
137
